Wiring the Booster Power Supply

8
Technical Manuals Online! - http://www.tech-man.com

Wiring placement

To avoid noise, keep input wiring isolated from high current
output and power limited wiring. Separate high current
input/output from low current. Separate power limited from non-
power limited wiring.

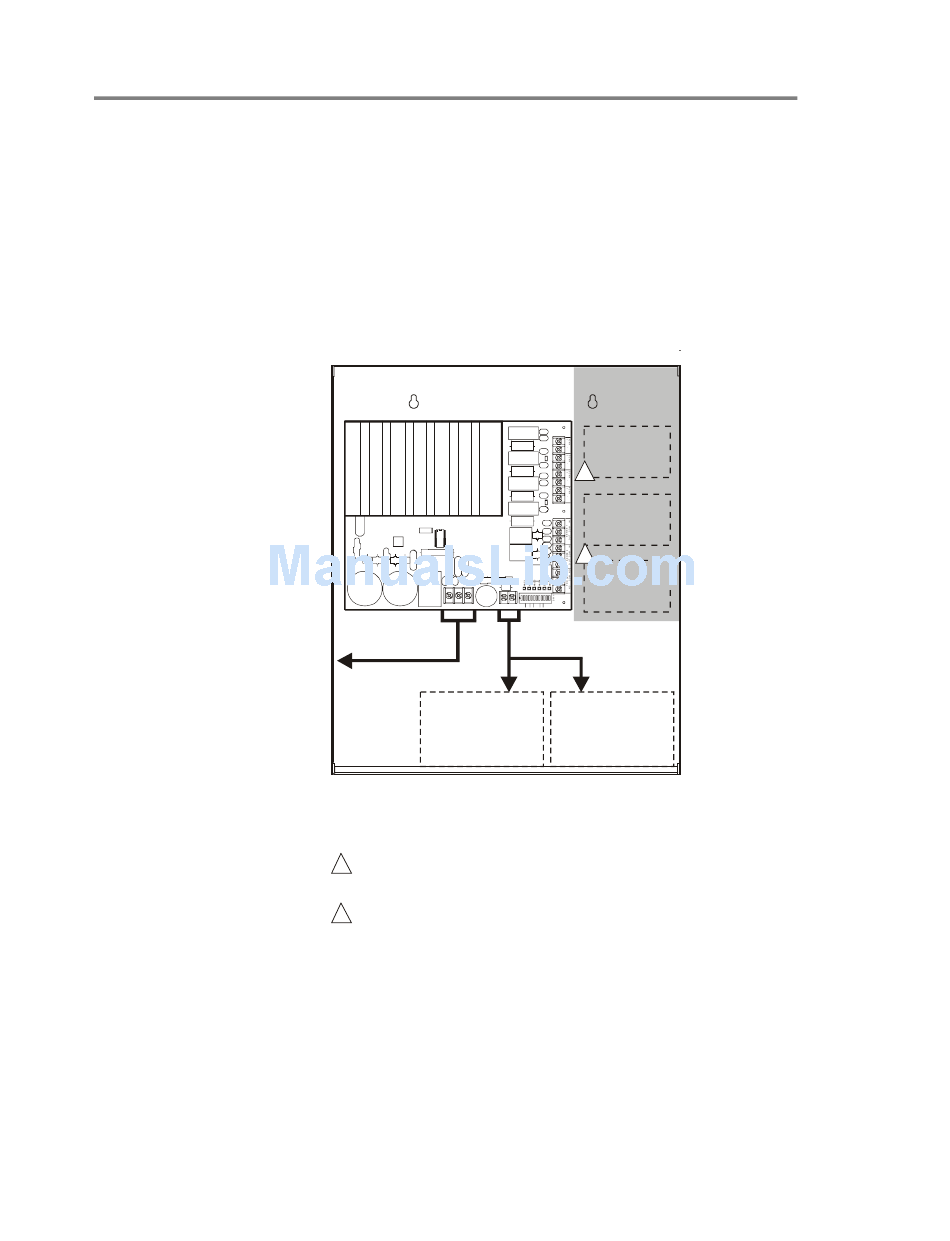

Wiring within the cabinet should be routed around the cabinet,
not across the printed circuit board.
Backbox
Booster Power Supply
P3
+ BATT ER Y -
L N G
Route AC supply
through these
knockouts only
(non-power limited &
supervised)
Battery
Notes:
1. Maintain 1/4 in. (6 mm) spacing between power limited
and non-power limited wiring or use type FPL, FPLR,
or FPLP cable per NEC.
2 Power limited and supervised when
auxiliary power. Non-supervised when configured as
auxiliary power .
3 Source must be power limited. Source determines
supervision.
4. When using larger batteries, make sure to position the
battery terminals towards the door.
power limited
wiring area
Signature
Module
2
P1
Signature
Module
3
Signature
Module
SW1
P2
P4
1 2 3 4 5 6 7 8 9 10 1112
S1 S2 ABRA TEAC AUX
Battery wiring (non-power
limited & supervised)
Battery
[Wire route.cdr]
not configured as
Booster Power Supply Manual
