Mounting Signature Series modules

4
Technical Manuals Online! - http://www.tech-man.com
To mount Signature Series modules:
1. Remove the black bracket connected to the module.
2. Snap the module in one of the three provided brackets in the
backbox.

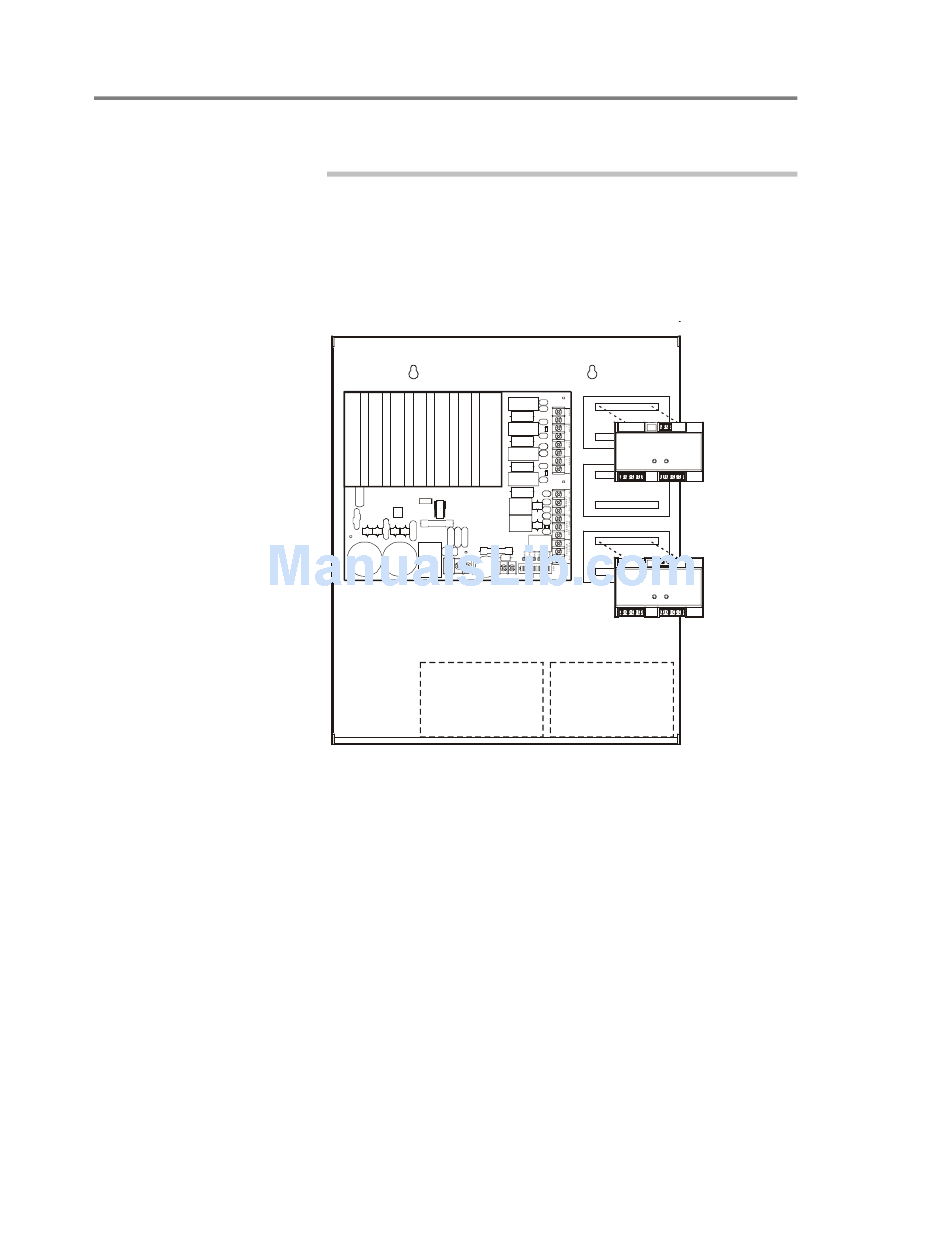

Refer to the drawing below.
Backbox
Booster Power Supply
P3
L N G + BATT ER Y -
Battery
Mounting brackets
TB3
9
10
Signature module
8 7 6 5 4 3 2 1
TB1
P1
TB3
SW1
P2
10 9
P4
1 2 3 4 5 6 7 8 9 10 11 12
S1 S2 ABRA TEAC AUX
Signature module
4 3 2 1
8 7 6 5
TB1
Battery
[MODMOUNT.cdr]
Booster Power Supply Manual
