Installing the enclosure

Booster Power Supply Manual
Technical Manuals Online! - http://www.tech-man.com
Be sure to follow all applicable national (NFPA 72) and local
fire alarm codes and standards when installing this system.

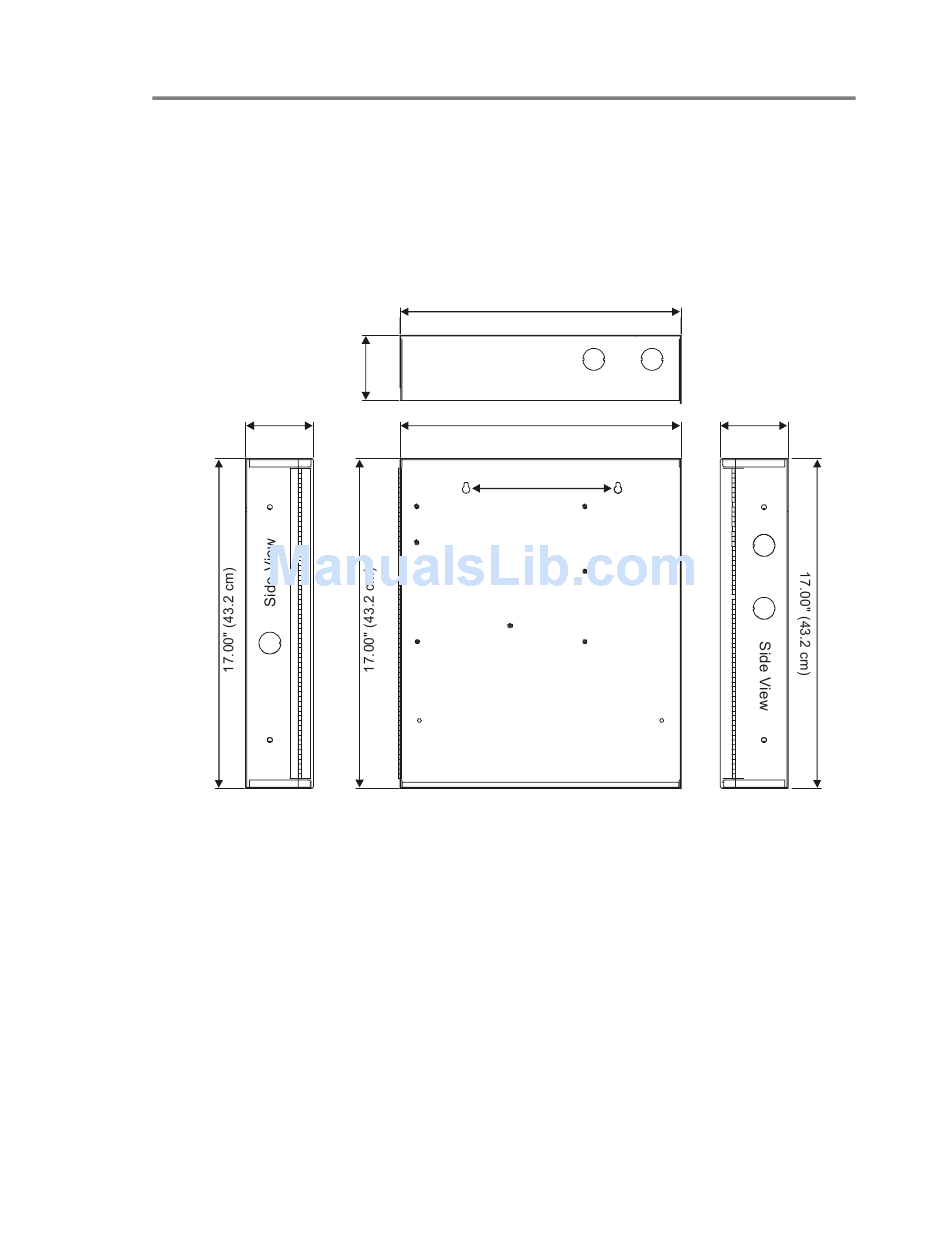

Mount the backbox at the required location. A dedicated 120
Vac (220/240 Vac) 50/60 Hz circuit is required for power.
Install all conduit and pull all wiring into the backbox before
proceeding.
3.375" (8.6 cm)
3.50" (8.9 cm)
13.00" (33.02 cm)
Top View
13.00" (33.02 cm)
7.00" (17.78 cm)
Front View
All knockouts
for 3/4" conduit
(1.9 cm)
[Backbox.cdr]
3.50" (8.9 cm)
3
