System connections

■ Detachable speakers
● Set the FUNCTION switch to STAND-BY before connecting or
disconnecting the speakers.

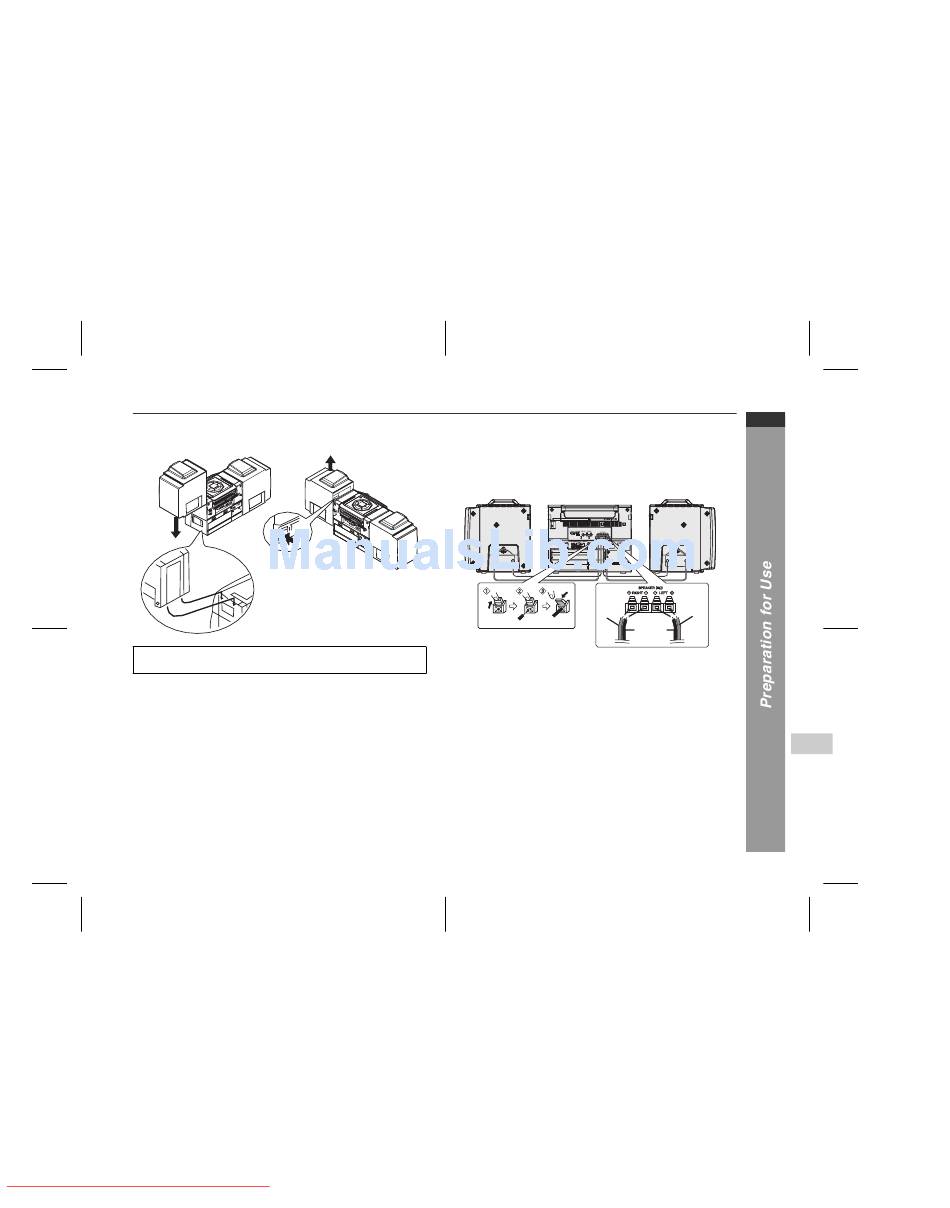

■ Mounting the speakers to the main unit
Fit the grooves of the speaker to the guides on the main unit, and
then slide the speaker all the way down to lock it in place.
■ Removing the speakers from the main unit
Push the RELEASE lever as shown in the illustration to unlock the
speaker, and then lift up the speaker to remove it from the main unit.
Downloaded From Disc-Player.com Sharp Manuals
■ Speaker connection
Connect each speaker wire to the SPEAKER terminals as shown.
Use speakers with an impedance of 8 ohms or more, as lower im-
pedance speakers can damage the unit.
Right speaker
Red
Caution:
● Connect the black wire to the minus (-) terminal, and the red wire
to the plus (+) terminal.
● Do not mix the right channel and left channel wiring when
connecting the speakers to the unit.
● Do not let the bare speaker wires touch each other as this may
damage the amplifier and/or speakers.
● Do not stand or sit on the speakers. If the speakers fall or collapse,
you may be injured.
04/1/28 GX-CD5200V_EN1.fm
GX-CD5200V
ENGLISH
Left speaker
Red
Black
E-8
