Sharp GX-CH170X Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Illustration: GX-CH170Z
SPECIFICATIONS ............................................................................................................................................................. 2
VOLTAGE SELECTION (GX-CH170Z ONLY) ................................................................................................................... 2
NAMES OF PARTS ........................................................................................................................................................... 3
REMOTE CONTROL ......................................................................................................................................................... 4
DISASSEMBLY .................................................................................................................................................................. 5
REMOVING AND REINSTALLING THE MAIN PARTS ..................................................................................................... 7
FITTING OF DIAL POINTER ............................................................................................................................................. 8
ADJUSTMENT ................................................................................................................................................................... 9
TROUBLESHOOTING (CHANGER/CD SECTION) ........................................................................................................ 11
NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 16
TYPES OF TRANSISTOR AND LED ............................................................................................................................... 16
BLOCK DIAGRAM ........................................................................................................................................................... 17
SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD ............................................................................................. 20
WAVEFORMS OF CD CIRCUIT ...................................................................................................................................... 35
FUNCTION TABLE OF IC ................................................................................................................................................ 36
LCD SEGMENT ............................................................................................................................................................... 37
PARTS GUIDE/EXPLODED VIEW
DIFFERENCE BETWEEN GX-CH170X AND GX-CH170Z
TUNER
FINE TUNING
FM STEREO INDICATOR
POWER SOURCE
SERVICE MANUAL
• In the interests of user-safety the set should be restored to its
CONTENTS
GX-CH170X
2 BAND
AC 220-240 V,50 Hz
SHARP CORPORATION
GX-CH170X
GX-CH170Z
original condition and only parts identical to those specified
should be used.
GX-CH170Z
4 BAND
AC 110-127/220-240 V,
50/60 Hz
GX-CH170X/CH170Z
No. S6631GXCH170Z
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GX-CH170X and is the answer not in the manual?

Questions and answers

Дмитрий
April 20, 2025

видимо сгорел предохранитель. по всей видимости было выбрано не правильное напряжение и пред сгорел. как его поменять и можно ли его заменить своими руками

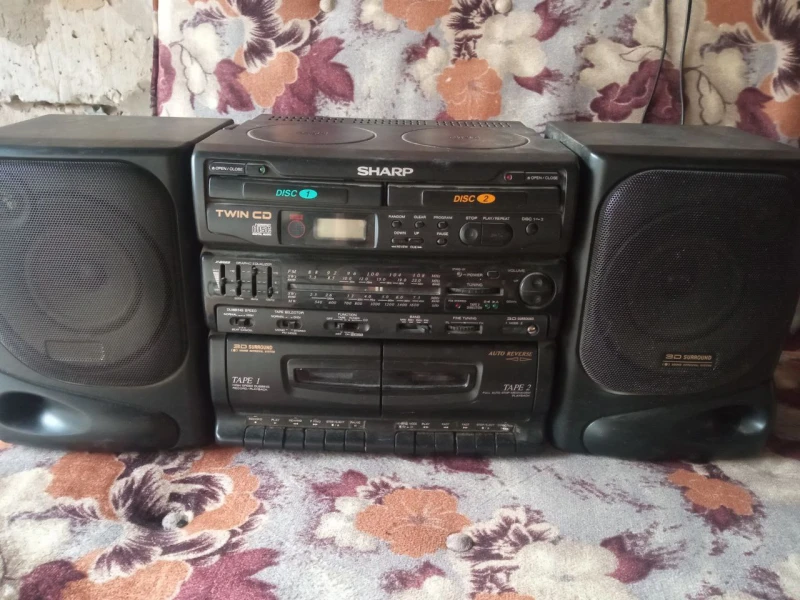

User image 680534521ccdd
