User manual, Bellman Visit Portable Receiver
(GB)

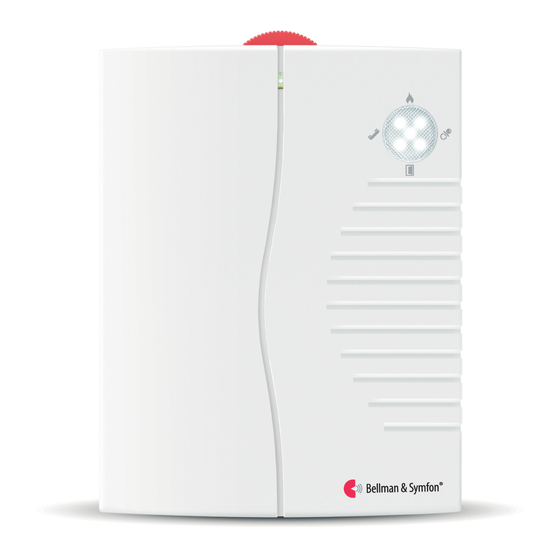

Bellman Visit Receiver is part of the Visit System. The receiver receives signals from different Visit
transmitters and signals when the door bell or telephone rings. You can carry the receiver in the apartment
or garden and place it where you are for the time being.

Getting started...

1. Open the battery panel on the back of the receiver and insert four 1.5 V batteries of the LR14 type.
2. Press in the test button on the bottom of receiver for a few seconds. The indicator lamp on the receiver will shine green and
the receiver will emit an audible sound. Adjust the volume with the large red volume control.
3. Check that the receiver receives signals from your Bellman Visit receiver. You can do this by pressing the test button on the
respective transmitter so that the receiver gives a signal.

Miscellaneous

Indicator lamp
On the front of the receiver there is an indicator lamp which shines green when the receiver is activated by a transmitter. This
shows that the receiver functions. The indicator lamp flashes red when the batteries need changing.
When setting the radio channel the indicator lamp shines alternately red and green. The receiver confirms the changed radio
channel by allowing the indicator lamp to shine both red and green simultaneously while emitting a sound signal.

Batteries

Bellman Visit Portable Receiver is powered by four 1.5V alkaline batteries of the LR14 type, which last for two to three
years. They are inserted under the battery panel on the back of the receiver.
When the batteries begin to get low the indicator lamp flashes red. It is also possible to use a mains adapter instead of
batteries. The mains adapter is connected to the input marked 6V DC on the side of the receiver.

Range

The range between the receiver and transmitters is approx. 30 metres but is influenced by the thickness of the walls and wall
materials in the house or apartment. Thick concrete and metal walls limit the range.

Radio channel

On delivery all units are set to the same radio channel. If you change a channel in a transmitter you must also change the
channel in the receiver, which is done as follows:
Hold the receiver in front of the transmitters; press in the test button on the receiver for approx. five seconds until the
indicator lamp on the receiver shines alternatively red and green; now press in the transmitter's test button so that the
receiver's indicator lamp shines red and green simultaneously while emitting a sound signal. This confirms that the channel is
changed.

Adjustments

You can adjust the volume with the large red volume control on the top of the receiver. The sound signal on the front can be
switched off with the sliding switch located on the back of the receiver.
