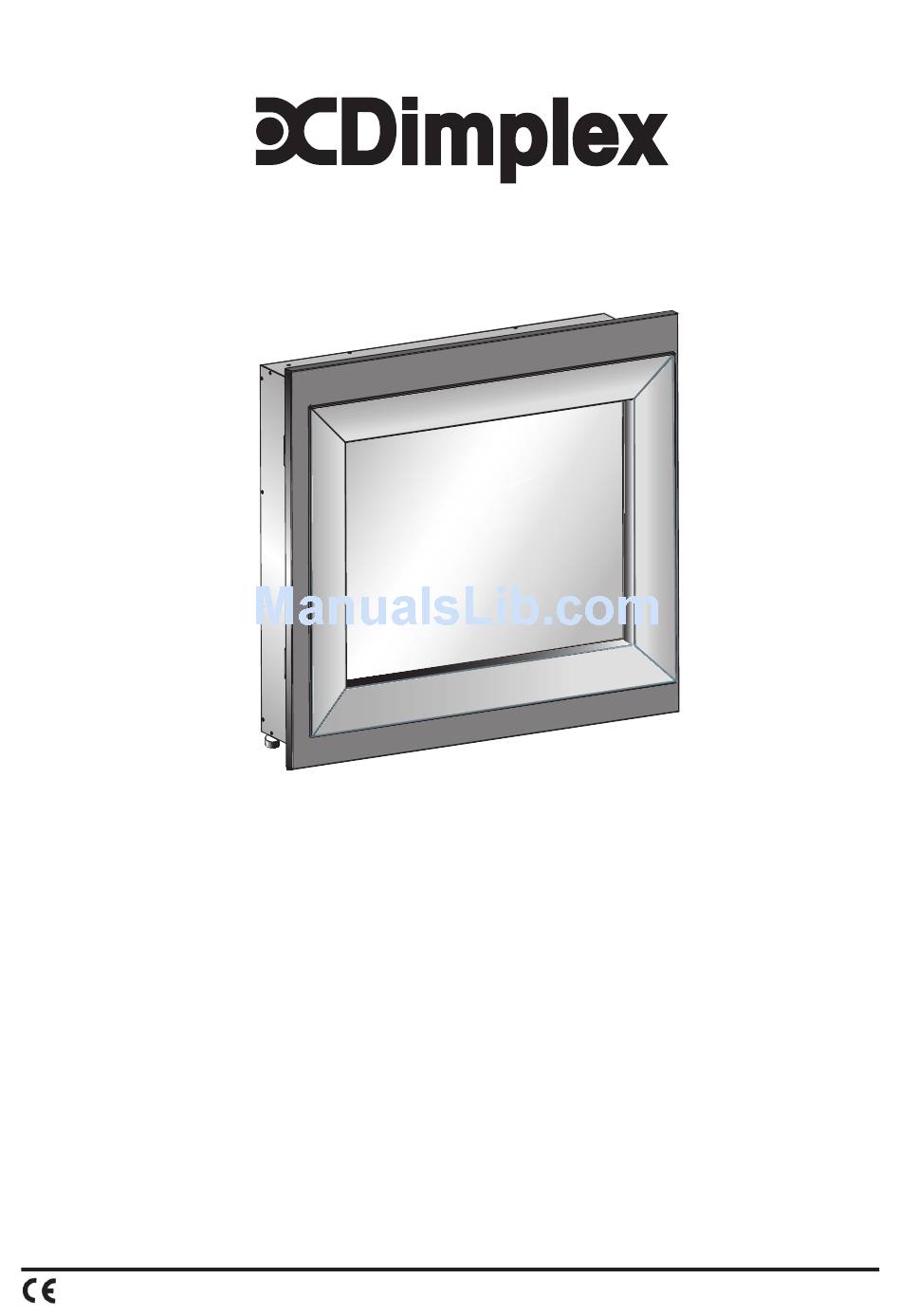

VALENCIA
electrical ambience heating
installation and operating instructions
08/19355/1
Issue 1
The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility
(EMC) EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 73/23 and 89/336
Advertisement
Table of Contents
Related Manuals for Dimplex Valencia
Summary of Contents for Dimplex Valencia
-
Page 1: Installation And Operating Instructions
VALENCIA electrical ambience heating installation and operating instructions 08/19355/1 Issue 1 The product complies with the European Safety Standards EN60335-2-30 and the European Standard Electromagnetic Compatibility (EMC) EN55014, EN60555-2 and EN60555-3 which cover the essential requirements of EEC Directives 73/23 and 89/336... -
Page 2: Table Of Contents
TABLE OF CONTENTS FOREWORD INTRODUCTION SAFETY PRECAUTIONS INSTALLATION 4.1 Installation Instructions 4.2 Installation Space 4.3 Location and Minimum Free Space 4.4 Recessed Installation OPERATION 5.0 Operation 5.1 Initializing the remote control 5.2 Remote control operation 5.3 Manual operation 5.4 Thermal safety cut CLEANING AND MAINTENANCE 6.1 Cleaning 6.2 Lamp replacement... -
Page 3: Foreword
The controls are located at the bottom right hand corner of the appliance (see Fig 1). A choice of 750W or 1500W heat output is provided by the fan heater, which is concealed at the top of the heater behind the removable front panel. The VALENCIA is designed to be inset in a fireplace opening. INTRODUCTION This instruction manual gives you information about the design, operation and maintenance of your fire, as well as safety precautions and environmental recommendations. -
Page 4: Installation
- 2 - DESCRIPTION OF THE STOVE Heat Removable Front Cover Controls - see Fig. 7 Fig. 1 4. INSTALLATION 4.1 INSTALLATION INSTRUCTIONS Have the stove installed by a qualified installer in conformance with national and local (fire safety) regulations. Be sure that the chimney functions properly. -
Page 5: Recessed Installation
- 3 - 4.4 RECESSED INSTALLATION wall plugs screws In order to ensure it’s future safety in use, it is essential that this fire is securely fixed to the wall. IT IS IMPORTANT THAT THE FIXING DEVICE CHOSEN IS APPROPRIATE TO THE WALL MATERIAL TO WHICH THE FIRE IS BEING FIXED. -
Page 6: Remote Control Operation
- 4 - 5.2 REMOTE CONTROL OPERATION Warning: It takes some time for the receiver to respond to the transmitter. Do not press the buttons more than once within two seconds for correct operation. Off Button On Button Decrease Brightness Increase Brightness Fig. -
Page 7: Thermal Safety Cut
- 5 - 5.4 THERMAL SAFETY CUT-OUT For your safety, this appliance has been fitted with thermal cut-out. In the event that the product overheats, the cut-out switches the heat off automatically. To bring the heat back into operation, remove the cause of the overheating, then unplug or turn off the electrical supply to the heater for up to 10 minutes. -
Page 8: After Sales
Hampshire. SO30 2DF Republic of Ireland Tel. 01 8424833 [c] Glen Dimplex UK Limited All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex UK Limited.
