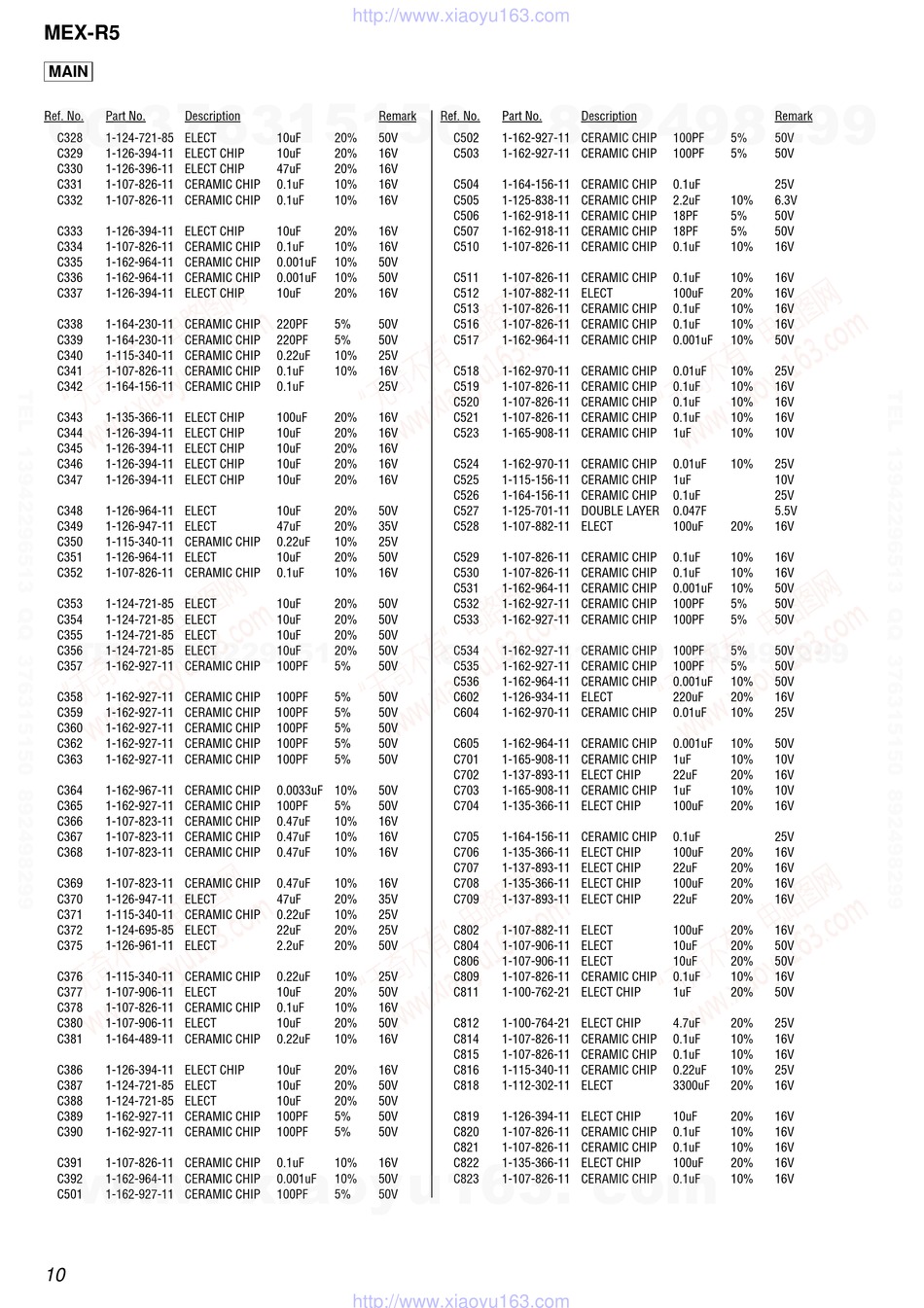

Sony MEX-R5 Service Manual page 84

MEX-R5
QQ
MAIN
3 7 63 1515 0
Ref. No. Part No. Description
C328 1-124-721-85 ELECT
C329 1-126-394-11 ELECT CHIP
C330 1-126-396-11 ELECT CHIP
C331 1-107-826-11 CERAMIC CHIP
C332 1-107-826-11 CERAMIC CHIP
C333 1-126-394-11 ELECT CHIP
C334 1-107-826-11 CERAMIC CHIP
C335 1-162-964-11 CERAMIC CHIP
C336 1-162-964-11 CERAMIC CHIP
C337 1-126-394-11 ELECT CHIP
C338 1-164-230-11 CERAMIC CHIP
C339 1-164-230-11 CERAMIC CHIP
C340 1-115-340-11 CERAMIC CHIP
C341 1-107-826-11 CERAMIC CHIP
C342 1-164-156-11 CERAMIC CHIP
C343 1-135-366-11 ELECT CHIP
C344 1-126-394-11 ELECT CHIP
C345 1-126-394-11 ELECT CHIP
C346 1-126-394-11 ELECT CHIP
C347 1-126-394-11 ELECT CHIP
C348 1-126-964-11 ELECT
C349 1-126-947-11 ELECT
C350 1-115-340-11 CERAMIC CHIP
C351 1-126-964-11 ELECT
C352 1-107-826-11 CERAMIC CHIP
C353 1-124-721-85 ELECT
C354 1-124-721-85 ELECT
TE
L 13942296513
C355 1-124-721-85 ELECT
C356 1-124-721-85 ELECT
C357 1-162-927-11 CERAMIC CHIP
C358 1-162-927-11 CERAMIC CHIP
C359 1-162-927-11 CERAMIC CHIP
C360 1-162-927-11 CERAMIC CHIP
C362 1-162-927-11 CERAMIC CHIP
C363 1-162-927-11 CERAMIC CHIP
C364 1-162-967-11 CERAMIC CHIP
C365 1-162-927-11 CERAMIC CHIP
C366 1-107-823-11 CERAMIC CHIP
C367 1-107-823-11 CERAMIC CHIP
C368 1-107-823-11 CERAMIC CHIP
C369 1-107-823-11 CERAMIC CHIP
C370 1-126-947-11 ELECT
C371 1-115-340-11 CERAMIC CHIP
C372 1-124-695-85 ELECT
C375 1-126-961-11 ELECT
C376 1-115-340-11 CERAMIC CHIP
C377 1-107-906-11 ELECT
C378 1-107-826-11 CERAMIC CHIP
C380 1-107-906-11 ELECT
C381 1-164-489-11 CERAMIC CHIP
C386 1-126-394-11 ELECT CHIP
C387 1-124-721-85 ELECT
C388 1-124-721-85 ELECT
www
C389 1-162-927-11 CERAMIC CHIP
C390 1-162-927-11 CERAMIC CHIP
C391 1-107-826-11 CERAMIC CHIP
.
C392 1-162-964-11 CERAMIC CHIP
C501 1-162-927-11 CERAMIC CHIP
10
http://www.xiaoyu163.com
Remark
10uF 20% 50V
10uF 20% 16V
47uF 20% 16V
0.1uF 10% 16V
0.1uF 10% 16V
10uF 20% 16V
0.1uF 10% 16V
0.001uF 10% 50V
0.001uF 10% 50V
10uF 20% 16V
220PF 5% 50V
220PF 5% 50V
0.22uF 10% 25V
0.1uF 10% 16V
0.1uF 25V
100uF 20% 16V
10uF 20% 16V
10uF 20% 16V
10uF 20% 16V
10uF 20% 16V
10uF 20% 50V
47uF 20% 35V
0.22uF 10% 25V
10uF 20% 50V
0.1uF 10% 16V
10uF 20% 50V
10uF 20% 50V
10uF 20% 50V
10uF 20% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
100PF 5% 50V
0.0033uF 10% 50V
100PF 5% 50V
0.47uF 10% 16V
0.47uF 10% 16V
0.47uF 10% 16V
0.47uF 10% 16V
47uF 20% 35V
0.22uF 10% 25V
22uF 20% 25V
2.2uF 20% 50V
0.22uF 10% 25V
10uF 20% 50V
0.1uF 10% 16V
10uF 20% 50V
0.22uF 10% 16V
10uF 20% 16V
10uF 20% 50V
10uF 20% 50V
100PF 5% 50V
100PF 5% 50V
x ao u163
y
0.1uF 10% 16V
i
0.001uF 10% 50V
100PF 5% 50V
http://www.xiaoyu163.com
2 9
8
Ref. No. Part No. Description
C502 1-162-927-11 CERAMIC CHIP
C503 1-162-927-11 CERAMIC CHIP
C504 1-164-156-11 CERAMIC CHIP
C505 1-125-838-11 CERAMIC CHIP
C506 1-162-918-11 CERAMIC CHIP
C507 1-162-918-11 CERAMIC CHIP
C510 1-107-826-11 CERAMIC CHIP
C511 1-107-826-11 CERAMIC CHIP
C512 1-107-882-11 ELECT
C513 1-107-826-11 CERAMIC CHIP
C516 1-107-826-11 CERAMIC CHIP
C517 1-162-964-11 CERAMIC CHIP
C518 1-162-970-11 CERAMIC CHIP
C519 1-107-826-11 CERAMIC CHIP
C520 1-107-826-11 CERAMIC CHIP
C521 1-107-826-11 CERAMIC CHIP
C523 1-165-908-11 CERAMIC CHIP
C524 1-162-970-11 CERAMIC CHIP
C525 1-115-156-11 CERAMIC CHIP
C526 1-164-156-11 CERAMIC CHIP
C527 1-125-701-11 DOUBLE LAYER
C528 1-107-882-11 ELECT
C529 1-107-826-11 CERAMIC CHIP
C530 1-107-826-11 CERAMIC CHIP
C531 1-162-964-11 CERAMIC CHIP
C532 1-162-927-11 CERAMIC CHIP
C533 1-162-927-11 CERAMIC CHIP
Q Q
3 6 7 1 3 1 5
C534 1-162-927-11 CERAMIC CHIP
C535 1-162-927-11 CERAMIC CHIP
C536 1-162-964-11 CERAMIC CHIP
C602 1-126-934-11 ELECT
C604 1-162-970-11 CERAMIC CHIP
C605 1-162-964-11 CERAMIC CHIP
C701 1-165-908-11 CERAMIC CHIP
C702 1-137-893-11 ELECT CHIP
C703 1-165-908-11 CERAMIC CHIP
C704 1-135-366-11 ELECT CHIP
C705 1-164-156-11 CERAMIC CHIP
C706 1-135-366-11 ELECT CHIP
C707 1-137-893-11 ELECT CHIP
C708 1-135-366-11 ELECT CHIP
C709 1-137-893-11 ELECT CHIP
C802 1-107-882-11 ELECT
C804 1-107-906-11 ELECT
C806 1-107-906-11 ELECT
C809 1-107-826-11 CERAMIC CHIP
C811 1-100-762-21 ELECT CHIP
C812 1-100-764-21 ELECT CHIP
C814 1-107-826-11 CERAMIC CHIP
C815 1-107-826-11 CERAMIC CHIP
C816 1-115-340-11 CERAMIC CHIP
C818 1-112-302-11 ELECT
C819 1-126-394-11 ELECT CHIP
C820 1-107-826-11 CERAMIC CHIP
co
C821 1-107-826-11 CERAMIC CHIP
C822 1-135-366-11 ELECT CHIP
.
C823 1-107-826-11 CERAMIC CHIP
9 4 2 8
Remark
100PF 5% 50V
100PF 5% 50V
0.1uF 25V
2.2uF 10% 6.3V
18PF 5% 50V
18PF 5% 50V
0.1uF 10% 16V
0.1uF 10% 16V
100uF 20% 16V
0.1uF 10% 16V
0.1uF 10% 16V
0.001uF 10% 50V
0.01uF 10% 25V
0.1uF 10% 16V
0.1uF 10% 16V
0.1uF 10% 16V
1uF 10% 10V
0.01uF 10% 25V
1uF 10V
0.1uF 25V
0.047F 5.5V
100uF 20% 16V
0.1uF 10% 16V
0.1uF 10% 16V
0.001uF 10% 50V
100PF 5% 50V
100PF 5% 50V
0 5 8 2 9 9 4 2 8
100PF 5% 50V
100PF 5% 50V
0.001uF 10% 50V
220uF 20% 16V
0.01uF 10% 25V
0.001uF 10% 50V
1uF 10% 10V
22uF 20% 16V
1uF 10% 10V
100uF 20% 16V
0.1uF 25V
100uF 20% 16V
22uF 20% 16V
100uF 20% 16V
22uF 20% 16V
100uF 20% 16V
10uF 20% 50V
10uF 20% 50V
0.1uF 10% 16V
1uF 20% 50V
4.7uF 20% 25V
0.1uF 10% 16V
0.1uF 10% 16V
0.22uF 10% 25V
3300uF 20% 16V
m
10uF 20% 16V
0.1uF 10% 16V
0.1uF 10% 16V
100uF 20% 16V
0.1uF 10% 16V
