MEX-R5
QQ
3 7 63 1515 0
6-5.

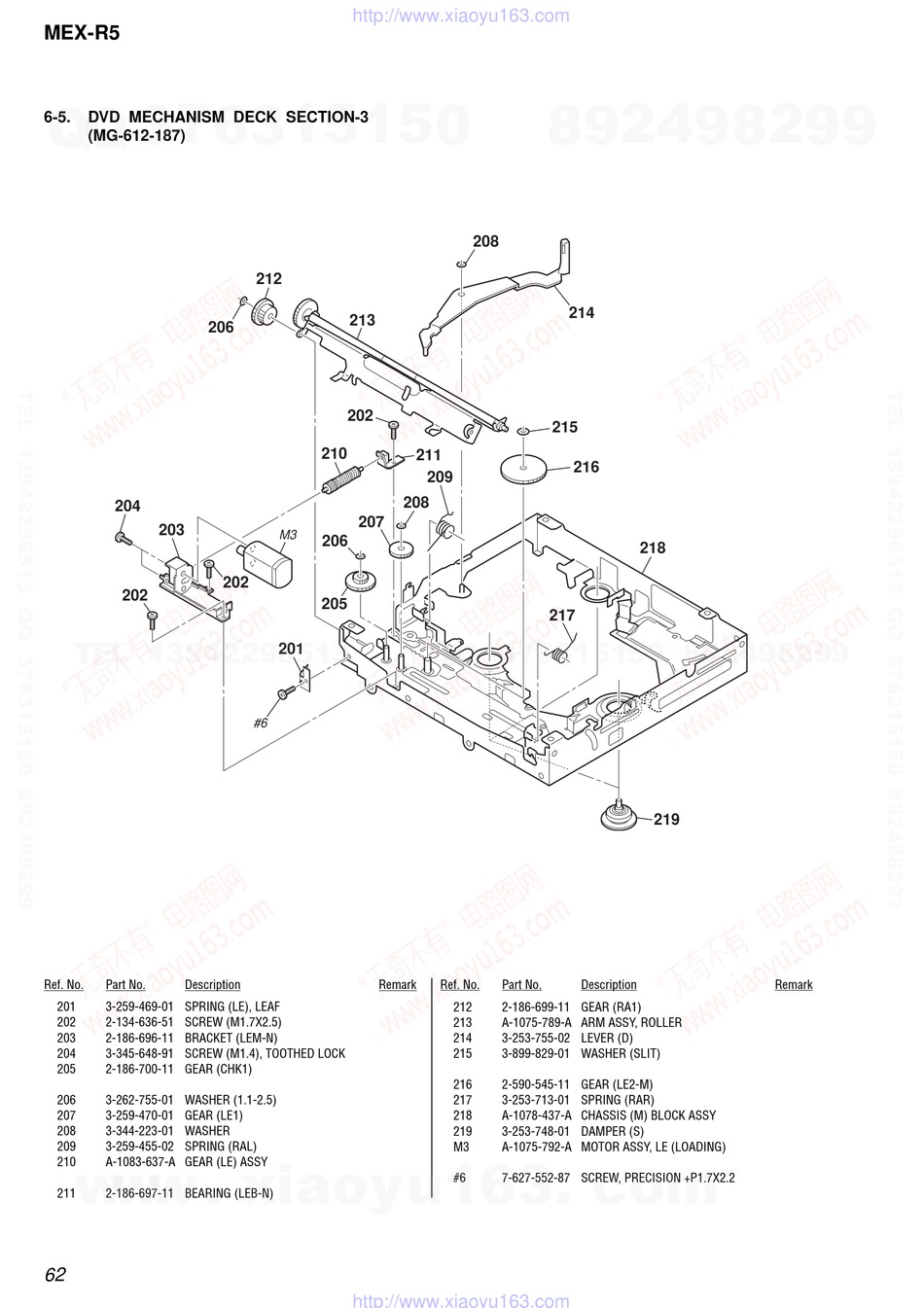

DVD MECHANISM DECK SECTION-3
(MG-612-187)
206
204
203
202
TE
L 13942296513
Ref. No.
Part No.
Description
201
3-259-469-01 SPRING (LE), LEAF
202
2-134-636-51 SCREW (M1.7X2.5)
203
2-186-696-11 BRACKET (LEM-N)
204
3-345-648-91 SCREW (M1.4), TOOTHED LOCK
205
2-186-700-11 GEAR (CHK1)
206
3-262-755-01 WASHER (1.1-2.5)
www
207
3-259-470-01 GEAR (LE1)
208
3-344-223-01 WASHER
209
3-259-455-02 SPRING (RAL)
210
A-1083-637-A GEAR (LE) ASSY
.
211
2-186-697-11 BEARING (LEB-N)
62
http://www.xiaoyu163.com
212
213
202
210
207
M3
206
202
205
201
#6
Remark
x
ao
y
i
http://www.xiaoyu163.com
8
208
214
215
211
216
209
208
217
Q Q
3
6 7
1 3
Ref. No.
Part No.
212
2-186-699-11 GEAR (RA1)
213
A-1075-789-A ARM ASSY, ROLLER
214
3-253-755-02 LEVER (D)
215
3-899-829-01 WASHER (SLIT)
216
2-590-545-11 GEAR (LE2-M)
217
3-253-713-01 SPRING (RAR)
218
A-1078-437-A CHASSIS (M) BLOCK ASSY
219
3-253-748-01 DAMPER (S)
u163
M3
A-1075-792-A MOTOR ASSY, LE (LOADING)
.
#6
7-627-552-87 SCREW, PRECISION +P1.7X2.2
2 9
9 4
2 8
218
1 5
0 5
8
2 9
9 4
219
Description
m
co
9 9
2 8
9 9
Remark
