Sony MEX-R1 Installation/Connections

2-581-682-31 (1)
Multi Disc Player
Installation/Connections
Установка/Подсоединение
MEX-R1
 2005 Sony Corporation
Printed in Korea
  
  
× 2
  
Equipment used in illustrations (not supplied)
Front speaker
Power amplifi er
Rear speaker
CD/MD changer
Active subwoofer Rotary commander RM-X4
A
FRONT VIDEO/ SUB OUT
Front monitor system*
AUDIO OUT (MONO)
*
Rear monitor system*
*
REAR VIDEO/ AUDIO OUT
REAR
Z×Z AUDIO OUT
* not supplied
B
Front monitor system*
*
FRONT VIDEO/
BUS AUDIO IN AUDIO OUT
REAR VIDEO/
BUS CONTROL IN
Z×Z AUDIO OUT
Rear monitor system*
*
* not supplied
Front monitor system*
*
FRONT VIDEO/
BUS AUDIO IN
AUDIO OUT
Source selector*
*
XA-C30
REAR VIDEO/
BUS CONTROL IN Z×Z AUDIO OUT
Rear monitor system*
*
* not supplied
Caution
Handle the bracket  carefully to avoid injuring your
Cautions
fi ngers.
• This unit is designed for negative earth 12 V DC
operation only.
• Do not get the leads under a screw, or caught in moving
parts (e.g. seat railing).
• Before making connections, turn the car ignition off to
avoid short circuits.
• Connect the power connecting lead  to the unit and

speakers before connecting it to the auxiliary power
connector. Catch
• Run all earth leads to a common earth point.
• Be sure to insulate any loose unconnected leads with Note
Before installing, make sure that the catches on both sides of
electrical tape for safety.
the bracket  are bent inwards 2 mm. If the catches are straight
or bent outwards, the unit will not be installed securely and may
Notes on the power supply lead (yellow)
spring out.
• When connecting this unit in combination with other
stereo components, the connected car circuit's rating
must be higher than the sum of each component's fuse.
Connection example ()
• When no car circuits are rated high enough, connect
the unit directly to the battery.
Note (-A)
Be sure to connect the earth lead before connecting the amplifi er.
Tip (-B- )
Parts Iist ()
For connecting two or more CD/MD changers, the source selector
XA-C30 (optional) is necessary.
• The numbers in the list are keyed to those in the
instructions.
• The bracket  and the protection collar  are

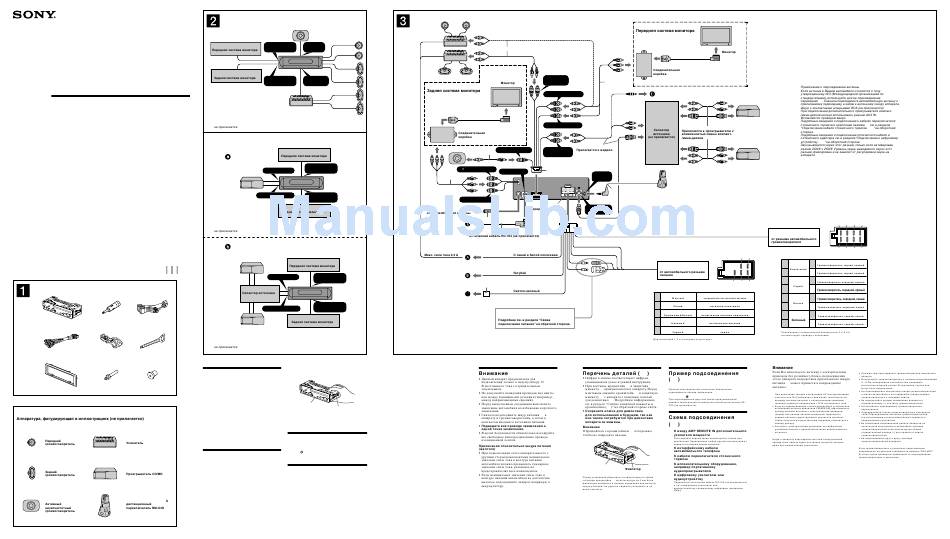

Connection diagram ()
attached to the unit before shipping. Before mounting
the unit, use the release keys  to remove the bracket
 To AMP REMOTE IN of an optional power
 and the protection collar  from the unit. For
amplifi er
details, see "Removing the protection collar and the
This connection is only for amplifi ers. Connecting any other
bracket ()" on the reverse side of the sheet.
system may damage the unit.
• Keep the release keys  for future use as they
 To the interface cable of a car telephone
are also necessary if you remove the unit from
 To the parking brake switch cord
your car.
 To auxiliary equipment such as portable
audio player
 To a digital amplifi er or audio device
Connect the optical cable RC-104 (not supplied), etc., to a
digital amplifi er or audio device equipped with a Dolby digital
decoder.
* 2
REAR
Monitor
AUDIO OUT
Rear monitor system
FRONT AUDIO OUT
FRONT VIDEO OUT
Connection box
SUB OUT (MONO) BUS AUDIO IN
* 2 /AUX IN * 3
Z Z AUDIO OUT * 7 
DIGITAL OUT
* 2
REAR VIDEO OUT
Fuse (10 A)
* 1 from car aerial

* 6
Optical cable RC-104 (not supplied)
Max. supply current 0.3 A Blue/white striped
AMP REM
Light blue
ATT
*
5
Light green
See "Power connection diagram" on the reverse
side for details.
Warning
If you have a power aerial without a relay box,
connecting this unit with the supplied power connecting
lead  may damage the aerial.
Notes on the control power and suppy leads
• The power aerial control lead (blue) supplies +12 V DC when
you turn on the tuner, or when you activate the AF (Alternative
Frequency) or TA (Traffi c Announcement) function.
• When your car has built-in FM/MW/LW aerial in the rear/side
glass, connect the power aerial control lead (blue) or the
accessory power input lead (red) to the power terminal of the
existing aerial booster. For details, consult your dealer.
• A power aerial without a relay box cannot be used with this
unit.

Memory hold connection
When the yellow power input lead is connected, power will
always be supplied to the memory circuit even when the ignition
switch is turned off.
Notes on speaker connection
• Before connecting the speakers, turn the unit off.
• Use speakers with an impedance of 4 to 8 ohms, and with
adequate power handling capacities to avoid its damage.
• Do not connect the speaker terminals to the car chassis, or
connect the terminals of the right speakers with those of the
left speaker.
• Do not connect the earth lead of this unit to the negative (–)
terminal of the speaker.
• Do not attempt to connect the speakers in parallel.
• Connect only passive speakers. Connecting active speakers
(with built-in amplifi ers) to the speaker terminals may damage
the unit.
• To avoid a malfunction, do not use the built-in speaker leads
installed in your car if the unit shares a common negative (–)
lead for the right and left speakers.
• Do not connect the unit's speaker leads to each other.
Note on connection
If speaker and amplifi er are not connected correctly, "FAILURE"
appears in the display. In this case, make sure the speaker and
amplifi er are connected correctly.
Front monitor system
Monitor
Connection box
* 2
Source selector
(not supplied)
Supplied with the CD/MD changer
XA-C30
Supplied with XA-C30
XA-C30
REMOTE
IN
* 4
BUS
CONTROL IN

5 7
from the car's power
connector
4 6 8
Yellow continuous power supply
4
Blue power aerial control
5
Orange/White switched illumination power supply
6
Red switched power supply
7
Black earth
8
Positions 1, 2, and 3 do not have pins.



Примечаниe (-A)


 Совет (-B- )




 




Пpимeчaниe 

* 1 Note for the aerial connecting
If your car aerial is an ISO (International Organisation for
Standardisation) type, use the supplied adaptor  to connect it. First
connect the car aerial to the supplied adaptor, then connect it to the
aerial jack of the master unit.
* 2 RCA pin cord (not supplied)
* 3 If you connect an optional CD/MD changer, you cannot use AUX IN
terminal.
* 4 Insert with the cord upwards.
* 5 For details on connecting to the parking brake switch cord, and attaching the
tap , see "Connecting the parking brake cord ()" on the reverse side.
* 6 For details on connecting the optical cable and the optical adapter, see the
"When making a digital connection ()" on the reverse side.
* 7 The sound is output from this terminal only when ZONE x ZONE is activated.
This terminal outputs a fi xed level regardless of the volume control of this unit.
* 1

* 2
* 3
* 4
* 5

()
* 6
()
* 7
1 3 5 7
from the car's speaker
connector
2 4 6 8
Speaker, Rear, Right
1 +
Purple
Speaker, Rear, Right
2 –
Speaker, Front, Right
3 +
Grey
Speaker, Front, Right
4 –
Speaker, Front, Left
5 +
White
Speaker, Front, Left
6 –
Speaker, Rear, Left
7 +
Green
Speaker, Rear, Left
8 –
Negative polarity positions 2, 4, 6, and 8 have striped leads.
Примечания относительно подсоединения
громкоговорителей

О проводах управления и питания
•
Подсоединение для поддержки памяти
Пpимeчaниe отноcитeльно подcоeдинeния
