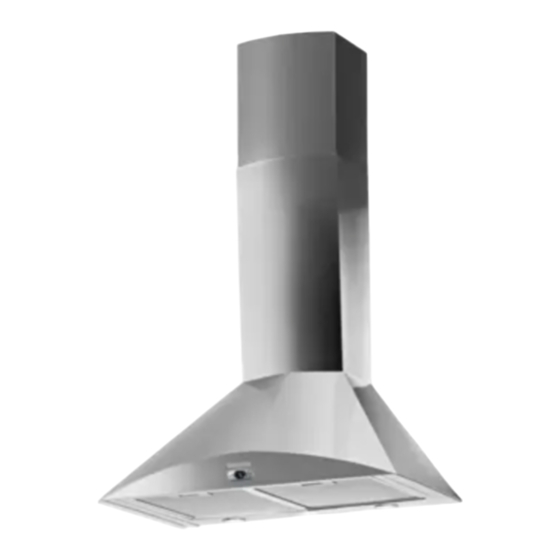

- Page 1 BT26.1SS/BT29.1SS Cooker Hood...
- Page 2 User Manual for your Baumatic BT26.1SS/BT29.1SS Cooker Hood 60/90cm Cooker Hood in Stainless Steel NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Contents Page Environmental note IMPORTANT SAFETY INFORMATION Specifications of your cooker hood Using your Baumatic cooker hood Start and increase speed Motor stopping and decreasing speed Timer function Light on/off function Special functions Cleaning your Baumatic cooker hood The grease filter... -
Page 4: Environmental Note
ENVIRONMENTAL NOTE Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person. -
Page 5: Important Safety Information
IMPORTANT SAFETY INFORMATION Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of information contained in this booklet, please contact the Baumatic Technical Department. - Page 6 you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS! o If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.
- Page 7 removing air from your room. Ensure that proper ventilation measures are being observed. Note that it removes odours from your room, not steam. o Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs.
-
Page 8: Specifications Of Your Cooker Hood
Specifications of your cooker hood Congratulations on purchasing a Baumatic Cooker Hood! DIMENSIONS: BT26.1SS Width (canopy): Depth (canopy): Height (with chimney) DIMENSIONS: BT29.1SS Width (canopy): Depth (canopy): Height (with chimney) DIMENSIONS OF CHIMNEY SECTION: 222 mm x 197 mm Your stainless steel Cooker Hood is fitted with:... -
Page 9: Using Your Baumatic Cooker Hood
Using your Baumatic cooker hood IMPORTANT: THE ELECTRONIC CONTROLS ON YOUR OOKER HOOD HAVE MULTIPLE FUNCTIONS. tart and Increase Speed (6 speeds) The Cooker hood motor is turned on by pressing button 1. utomatically sets itself to speed Level 1 when activated. -
Page 10: Special Functions
Your cooker hood’s electronic system is equipped with spec esigned to facilitate maintenance and correct utilisation. etal filters cleaning required warning Every thirty hours of utilisation the microprocessor warns the user, by means of a puls ing “A” on the display, that it is time to clean the metal rease filters. -
Page 11: Cleaning Your Baumatic Cooker Hood
Baumatic cooker hood IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE. C a ing le n Clean the external parts of your co detergent and a new damp cloth. -
Page 12: Maintenance
Maintenance Removing and cleaning the grease filter Soak the grease filter in hot water and washing up liquid for about an hour. o Rinse them off thoroughly with hot water. o Repeat the process if required. o Refit the grease filters once they have dried. o IMPORTANT: Let the grea refitting them in the cooker hood. -
Page 13: Changing A Light Bulb
IMPORTANT: BEFORE ATTEMP A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAI Prior to touching the light bulbs ensure they are cooled dow o Find the bulb that re quires replac the light fi xture which is inside the exposed secti canopy. -
Page 14: Fitting The Carbon Filters
If the appliance is being use is necessary to fit carbon filters. This will help to absorb unpleasant odours caused y cooking. IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT COOKER HOOD FROM YOUR MAINS SUPPLY. ) Turn the carbon filter anticlockwise, until you feel click into place. -
Page 15: Installation
Installation IMPORTANT: Before installation and usage, read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and freq plate can be found behind the grease filters. The manufacturer declines all responsibility in the event of the installe failing to observe all the accident prevention regulations in force,... -
Page 16: Before Beginning Installation
n neither must be connected to the earth terminal. As the colours of the wires in the appliance’s mains lead may not correspond wit h th c e oloured markings identifying the terminals in your spur box, p ea o The blue wire must be connected to the o The brown wire must be connected to the fo e beginning installation Check that the product purchased is of a suitable size for the... -
Page 17: Installing Your Cooker Hood
which will be acc essible after the hood is mounted. If you are going to use the appliance in extractor mode, you should also ensure that there is space to connect a fumes discharge devi to the outside. Raw plugs are provided to secure the hood to most types of walls and ceilings. - Page 18 2) Position the hood against the wall that you are intending to install it on and mark the position of the support holes that are to be drilled (as shown in the figure below). 3) Using a drill bit with a 6 mm diameter, make holes in the wall on the positions that you have marked in step 4) Insert raw plugs into all of the holes that you have...
- Page 19 7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Tighten the anchoring screws fully into the wall 5) Fasten the support screws halfway in, leaving them 10 mm out of the wall.
-
Page 20: Connecting To External Ducting
8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance). o The other end of the ducting hose should be connected to your discharge outlet that is suitable for cooking vapours. - Page 21 0) Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood. o Mark the side measurement of both sides of chimney section D on the wall with a pencil and then remove chimney section D. 1) Take the fixing bracket (E) and place it between the two pencil marks that you made in step 9 o Keeping the bracket in contact with the wall, use a pencil to...
- Page 22 ) Using a 6 mm drill bit, drill out two holes on the pencil marking tha y t ou made in step 11. Insert raw plugs into the holes and then a screwdriver to secure the fixing bracket to the wall. o Refit chimney section C to the hood and fix it onto the hood using the two screws that are supplied.
-
Page 23: Extraction Mode Or Recirculation Mode
I need one? All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition t o the grease filter. -
Page 24: Troubleshooting
MPORTANT: If your cooker hood appears not to be operating roperly, before contacting the Baumatic Service Department, lease refer to the checklist below. My cooker hood will not start. o Check that the hood is connected to the electricity supply o Check that the fan speed control is set correctly. -
Page 25: Baumatic Ltd. Conditions Of Guarantee
5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original urchase date. -
Page 26: Contact Details
Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone... - Page 28 28 28...
