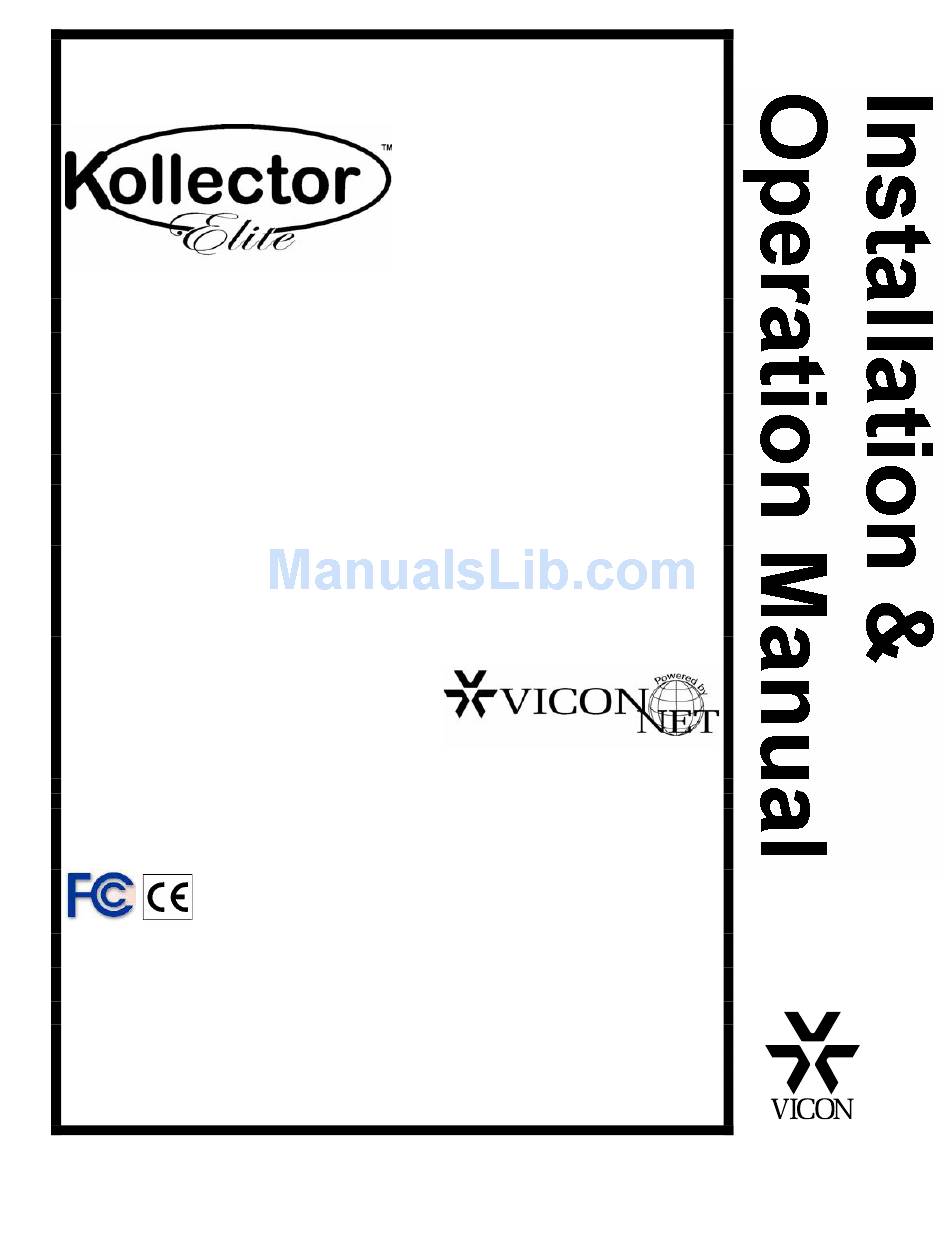

Vicon Kollector Elite Installation & Operation Manual

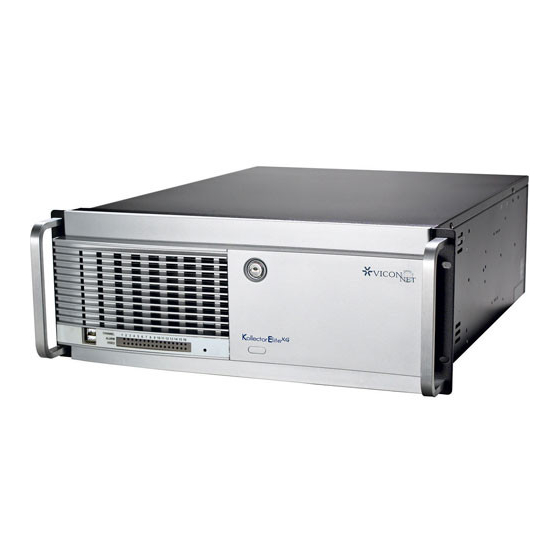

Vicon kollector elite network digital video recorder
Hide thumbs
Also See for Kollector Elite:
- Installation and operation manual (38 pages) ,
- Installation & operation manual (27 pages) ,
- Installation manual (24 pages)
Table of Contents
Advertisement
Quick Links
XX112-00-00
Network Digital Video Recorder
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2003 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
ViconNet and its logo are trademarks of Vicon Industries Inc.
Kollector Elite and its logo are trademarks of Vicon Industries Inc.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Windows is a trademark of Microsoft Corp.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8112-00-00 Section 4 Rev 203
Advertisement
Table of Contents
Related Manuals for Vicon Kollector Elite
Summary of Contents for Vicon Kollector Elite
-
Page 1: Network Digital Video Recorder
XX112-00-00 Network Digital Video Recorder Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation. This system has not been designed to be used in life-critical situations and must not be used for this purpose. -
Page 5: Table Of Contents
Rear Panel Controls and Connections..................... 7 Mounting..............................8 OPERATION........................11 Use of this Section ..........................11 TROUBLESHOOTING......................12 MAINTENANCE........................12 SHIPPING INSTRUCTIONS ....................13 COAXIAL CABLE RECOMMENDATIONS ................14 Twisted-Pair Cable ............................15 TECHNICAL INFORMATION .....................16 Contents • 1 XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder... -
Page 6: Introduction
Kollector Elite Digital Video Recorder. The graphics and terminology used in this manual have been carefully selected to enable a clear and distinct understanding of the Kollector Elite and its configuration. This manual has been formatted to present distinct methods of installation for experienced (strong computer background) and novice installers. -
Page 7: Accessory Kit
The Power Cord is used for power connection of Kollector Elite and the Rail Set is a spare set of rails used to mount a hard drive. -
Page 8: Quick Installation
Quick Installation 4 • Quick Installation XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder... -
Page 9: Installation
For novice or first-time installers, these steps provide the most thorough and accurate instructions. Use of this Section This section details complete installation of the Kollector Elite Digital Video Recorder. The following subsections provide information as follows: Unpacking the Recorder defines how to remove the unit and accessories from the box. -
Page 10: Front Panel Controls And Connections
The CD-RW Drive is used as a high-capacity removable data drive. The Removable OS Hard Drive is a 20 GB removable hard drive used for the operating system. 6 • Installation XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder... -
Page 11: Rear Panel Controls And Connections
The Relay I/O connections are screw terminals not used at this time. The Video Looping Outputs are DB-15 connectors used with provided cables to loop the video inputs out. Installation • 7 XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder... -
Page 12: Mounting
Desktop The desk or table must provide a surface of suitable strength for the Kollector Elite’s weight of 45 lb (20.5 kg). In addition, there must be area left around the cabinet to provide suitable airflow for cooling. Do not place heavy items on the cover. -
Page 13: Network Port
If using 230 VAC power, it will be necessary to obtain a suitable power cord for use. This cable is a standard computer 230 VAC power cord. Installation • 9 XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder... -
Page 14: Sensor Input
Terminate a wire into each one of the following screws: SENS and GND. Install the other end of this cable into the appropriate sensor output (NO or NC dry contact). 10 • Installation XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder... -
Page 15: Operation
Power Switch is in the OFF position (“O” pressed in). Then verify that the rear panel toggle switch is in the ON position (“I” pressed in). Press the front panel toggle switch to the ON position (“I” pressed in). Kollector Elite will begin its boot routine. -
Page 16: Troubleshooting
Vicon Technical Support. ⇒ If the recorder boots, but never displays the MAIN SCREEN, reboot the unit by toggling the front panel power switch OFF and ON. If the recorder still fails to boot, call Vicon Technical Support. Maintenance The Kollector Elite requires no scheduled maintenance. -
Page 17: Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 18: Coaxial Cable Recommendations
Coaxial Cable Recommendations Caution: Careful selection of proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended, or equivalent, are installed. In all cases, coaxial cable impedance should be 75 ohms. -
Page 19: Twisted-Pair Cable
Twisted-Pair Cable CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances. -
Page 20: Technical Information
ELECTRICAL Input Voltage: 120 - 230 VAC ±10%, 50/60 Hz nominal. NOTE: Vicon strongly recommends the use of uninterruptible power supply systems (UPS) to prevent voltage fluctuations that can affect operation and cause damage to the equipment. Current: 3 A. - Page 21 Operating Humidity Range: 0 to 95% relative, non-condensing. Storage Temperature Range: -4 to 158° F (-20 to 70° C). Storage Humidity Range: 0 to 95% relative, non-condensing. Technical Information • 17 XX112-00-00 Rev 203 Kollector Elite Network Digital Video Recorder...
- Page 22 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288) 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office Planet II - Unit E...
