XX112-06-01

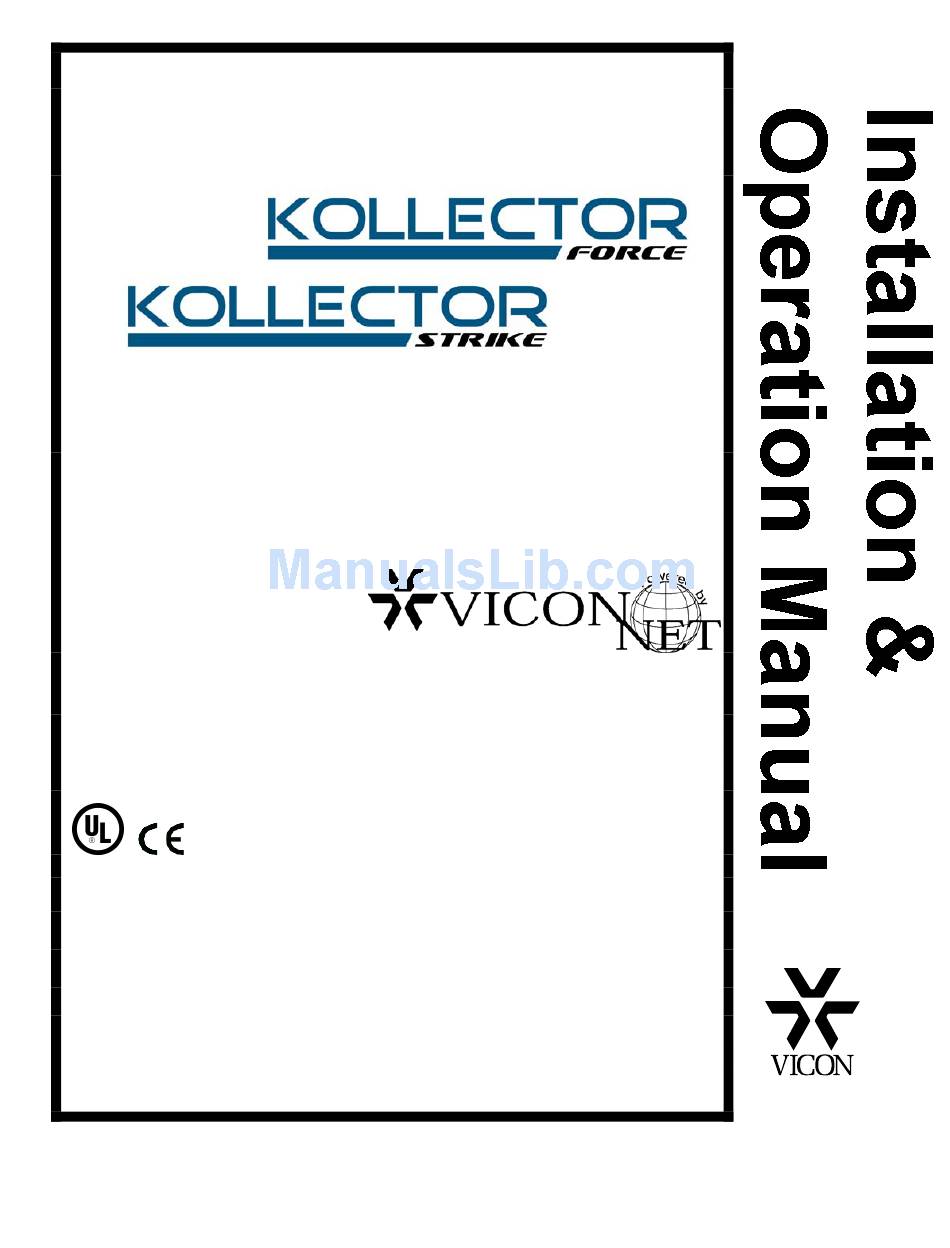

Kollector Series Hybrid Network
Digital Video Recorder
Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your
requirements or that the operation will be entirely error free or perform precisely as described in the
documentation. This system has not been designed to be used in life-critical situations and must not be
used for this purpose.
Copyright © 2011Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
ViconNet and Kollector and their logos are registered trademarks of Vicon Industries Inc.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Windows is a trademark of Microsoft Corp. Intel and Core are registered trademarks of Intel Corporation.
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788
TEL: 631-952-2288
FAX: 631-951-2288
TOLL FREE: 800-645-9116
24-Hour Technical Support: 800-34-VICON (800-348-4266)
UK: 44/(0) 1489-566300 WEB: www.vicon-cctv.com
Vicon Part No. 8009-8112-06-01 Rev 911
Advertisement
Table of Contents
Related Manuals for Vicon Kollector Fore
Summary of Contents for Vicon Kollector Fore
- Page 1 Kollector Series Hybrid Network Digital Video Recorder Vicon Industries Inc. does not warrant that the functions contained in this equipment will meet your requirements or that the operation will be entirely error free or perform precisely as described in the documentation.
- Page 4 The product shows a significant change in performance. 4. Follow Instructions - Follow all operating instructions. 19. Replacement Parts - Use only Vicon specified replacement 5. Installation and Wiring - The equipment and all devices parts or an approved equivalent to prevent unit damage and connected to it shall be installed and wired in accordance with the injury.
- Page 5 Important Safeguards – Indoor Use (Cont) Mechanical Loading - Mounting of the equipment in the rack Risk of explosion if battery is replaced by incorrect should be such that a hazardous condition is not achieved type. Dispose of used batteries according to the due to uneven mechanical loading.
-
Page 6: Fcc Notice
FCC Notice Note: Complies with Federal Communications Commission Rules & Regulations Part 15, Subpart B for a Class A digital device. WARNING This equipment generates and uses radio frequency energy and if not installed and used properly, that is, in strict accordance with the manufacturer’s instruction, may cause interference to radio and television reception. -
Page 7: Important Notice
This manual is delivered subject to the following conditions and restrictions: • This manual contains proprietary information belonging to Vicon. Such information is supplied solely for the purpose of assisting explicitly and properly authorized users of the ViconNet system. •... -
Page 8: About This Manual
Chapter 6, Maintenance, provides information on maintaining the Kollectors. • Chapter 7, Shipping Instructions, describes the procedure to be followed when sending a Kollector back to Vicon. • Chapter 8, Coaxial Cable Recommendations, provides technical information for the recommended coaxial cable types. -
Page 9: Table Of Contents
Table of Contents CHAPTER 1 INTRODUCTION ..................... 1 How to Use This Manual ..........................2 For Experienced Installers ..........................2 For Novice Installers ............................. 2 Accessory Kit ..............................2 Unpacking and Inspection ..........................3 CHAPTER 2 QUICK INSTALLATION .................. 4 CHAPTER 3 INSTALLATION .................... - Page 10 CHAPTER 7 SHIPPING INSTRUCTIONS ................26 CHAPTER 8 COAXIAL CABLE RECOMMENDATIONS ........... 27 CHAPTER 9 TWISTED-PAIR CABLE RECOMMENDATIONS ......... 28 CHAPTER 10 TECHNICAL INFORMATION ..............29 VICON STANDARD EQUIPMENT WARRANTY ..............33 viii • Table of Contents XX112-06-01 Rev 911 Kollector Network Digital Video Recorders...
-
Page 11: Chapter 1 Introduction
Intel® Core™2 Duo CPU or Intel® Core i3-540 CPU platform. All versions run the same Vicon ViconNet® software application. For software information, refer to the Kollector Software manual. Kollectors can be networked with all models of Kollectors and ViconNet Workstations to create a complete system. -
Page 12: How To Use This Manual
How to Use This Manual This manual was designed to provide the best overall instructions for the installation and operation of the Kollector Digital Video Recorders; it includes both the Kollector Force and the Kollector Strike. The graphics and terminology used in this manual have been carefully selected to enable a clear and distinct understanding of the Kollector and its configuration. -
Page 13: Unpacking And Inspection
Unpacking and Inspection All Vicon equipment is tested and inspected before leaving the factory. It is the carrier’s responsibility to provide suitable delivery. Inspect the cartons upon delivery and, if damage is present, make detailed notes on the carrier’s bill. Then, obtain the carrier agent’s signature and file a damage claim as soon as possible. -
Page 14: Chapter 2 Quick Installation
Chapter 2 Quick Installation Figure 2-1: System Overview 4 • Quick Installation XX112-06-01 Rev 911 Kollector Network Digital Video Recorders... - Page 15 Figure 2-2: Kollector Force Quick Installation Quick Installation • 5 XX112-06-01 Rev 911 Kollector Network Digital Video Recorders...
- Page 16 Figure 2-3: Kollector Strike Quick Installation 6 • Quick Installation XX112-06-01 Rev 911 Kollector Network Digital Video Recorders...
- Page 17 Figure 2-4 Kollector Strike Basic Quick Installation Quick Installation • 7 XX112-06-01 Rev 911 Kollector Network Digital Video Recorders...
-
Page 18: Chapter 3 Installation
Chapter 3 Installation For novice or first-time installers, these steps provide the most thorough and accurate instructions. About This Chapter This chapter details the complete installation of the Kollector Digital Video Recorders. The following sections provide information as follows: • Unpacking the Recorder defines how to remove the unit and accessories from the box. -
Page 19: Unit Components
Unit Components This section describes the Kollector unit's front and rear panels. Front Panel Controls and Connections The following picture shows the Kollector Force front panel. Each panel component is described in the table below. Figure 3-1: Kollector Force Front Panel Layout The Kollector Force front panel contains the following components: •... - Page 20 The following picture shows the Kollector Strike and Kollector Strike Basic front panel. Each panel component is described in the table below. Figure 3-2: Kollector Strike Front Panel Layout • Power Switch: Used to power on the recorder. • Power LED Indicator: Blue LED used to display the power status (ON means recorder on and OFF means recorder off).
-
Page 21: Rear Panel Controls And Connections
Rear Panel Controls and Connections The following picture shows the Kollector Force rear panel. Each panel component is described below. Figure 3-3: Kollector Force Rear Panel Layout The Kollector Force rear panel contains the following components: • Video Looping Outputs: DB-15 connectors (2) used with provided cables to loop the video inputs out. •... - Page 22 • Speaker Output: Mini phono-type connector used for sound card audio output. • LCD Monitor Output: Used for digital video output to a monitor. DVI to HDMI converter provided. • VGA Monitor Output: Used to connect to a VGA monitor. •...
- Page 23 • Microphones: Used to connect microphones to the Kollector Strike. • PTZ (Tx/Rx): Used to connect PTZ devices to the Kollector Strike (labeled COM 4). Note: Rx not currently available. • Speaker Output: Mini phono-type connector used for audio output. •...
-
Page 24: Mounting
• Mouse Port: USB connector used to connect the provided optical mouse (included). • USB Connectors: Used for optional devices (4). • Network Port: RJ-45 connectors; use to connect to a LAN/WAN (100/1000 Base T). • Auxiliary Fan: Used to cool the unit during operation. Mounting There are two types of mounting recommended for the recorder, either desktop or rack. -
Page 25: Installing The Kollectors
Installing the Kollectors After the recorder is mounted permanently, follow the steps in this section to install the Kollector unit hardware. • Step 1: Connecting the Hardware, below • Step 2: Connecting External Hardware to the Kollector • Step 3: Connecting Looping Cables •... -
Page 26: Step 2: Connecting External Hardware To The Kollectors
Step 2: Connecting External Hardware to the Kollectors The connection of external hardware to the Kollectors requires simple hand tools. Use a small tipped screwdriver to push open or release each wire connection, as necessary. Mating connectors are provided in the accessory kit. - Page 27 Communications (PTZ control) for the Kollector Strike/Basic Connect as follows: To connect a PTZ camera control to the Kollector Strike: 1. Using a twisted-pair cable as defined in Chapter 9, Twisted-Pair Cable Recommendations, prepare a 4-conductor plus shield type cable by stripping the ends back for use. 2.
-
Page 28: Sensor Input
Sensor Input The procedure for connecting a sensor to the Kollectors is described below. To connect a sensor to the Kollector Force: 1. Using a twisted pair cable as defined in Chapter 9, Twisted-Pair Cable Recommendations, prepare a 2-conductor type cable by stripping the ends back for use. 2. - Page 29 Relay Outputs To connect a device to the relay output on the Kollector Force: 1. Using a twisted pair cable as defined in Chapter 9, Twisted-Pair Cable Recommendations, prepare a 2-conductor type cable by stripping the ends back for use. 2.
- Page 30 Microphone Inputs The procedure for connecting a microphone to the Kollectors is described below. To connect a microphone to the Kollector Force: 1. Using a compatible microphone as defined in Chapter 10, Technical Information; identify the corresponding 2-conductor type cable. 2.
-
Page 31: Step 3: Connecting Looping Cables (Kollector Force Only)
Step 3: Connecting Looping Cables (Kollector Force only) Looping cables are required only when you wish to retrieve video (output) from the Kollector Force. The purpose of the cables is to transmit video signals to a second transmitter. Each cable transmits 8 video signals - Looping 1 transmits signals from cameras 1 to 8 and Looping 2 from cameras 9 to 16. -
Page 32: Step 4: Connecting The Power Supply
Step 4: Connecting the Power Supply To ensure that the Kollector is protected during a power failure and that no important data is lost, it must be connected to an uninterruptible power source (UPS) before use. To connect the UPS: 1. -
Page 33: Chapter 4 Operation
Chapter 4 Operation About This Chapter This chapter details power on, booting and power off of the Kollector Digital Video Recorders. For full programming and operation information, refer to the Kollector Software manual, XX112-3X (where X is a revision number between 0 and 9). The following sections provide information as follows: •... -
Page 34: Chapter 5 Troubleshooting
120 or 230 VAC. If voltage is present, proceed to the next item. • Press the front panel Power Switch. If the recorder fails to boot, call Vicon Technical Support. • If the recorder boots, but does not display the Main Screen, reboot the unit by pressing the front panel power switch OFF and ON. -
Page 35: Chapter 6 Maintenance
Chapter 6 Maintenance Periodic checking and maintenance of certain parts of your Kollector will minimize future system problems. The following table lists the items that need to be checked and when. Maintenance Required Monthly Annually Cleaning the filter (Kollector Force only) Backing up Checking the front and rear fans... -
Page 36: Chapter 7 Shipping Instructions
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A. -
Page 37: Chapter 8 Coaxial Cable Recommendations
Let the required picture quality and cable distance provide a guide in choosing the best cable type. For cables other than the approved Vicon types below, contact the manufacturers listed below. Note that “BC” refers to bare copper and “TC” refers to tinned copper. -
Page 38: Chapter 9 Twisted-Pair Cable Recommendations
Chapter 9 Twisted-Pair Cable Recommendations CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances. -
Page 39: Chapter 10 Technical Information
Input Voltage 115 - 230 VAC ±10%, 50/60 Hz nominal. NOTE: Vicon requires the use of uninterruptible power supply systems (UPS) to prevent voltage fluctuations that can affect operation and cause damage to the equipment. Failure to comply with this violates the unit warranty. - Page 40 Relay Outputs: 4 outputs using 5-pin screw terminal block/16 outputs using 16-pin screw terminal block ( removable terminal block connections), NO or NC, software selectable, Kollector Force only: Analog Video Loopouts: 16 in 2 DB-15 connectors LCD Monitor Output: DVI (DVI to HDMI adapter included) 16x4 Matrix: 4 BNC for local video outputs Video Level Input All BNC connectors: 1.0 V peak-to-peak...
- Page 41 Kollector Strike Kollector Force Figure 10-1: Kollector Dimensions Technical Information • 31 XX112-06-01 Rev 911 Kollector Network Digital Video Recorders...
- Page 42 Notes 32 • Technical Information XX112-06-01 Rev 911 Kollector Network Digital Video Recorders...
-
Page 43: Vicon Standard Equipment Warranty
Vicon Security Management Systems (SMS) All Models: All hardware is warranted for two years from date of original retail purchase. 10. Any product sold as “special” or not listed in Vicon’s commercial price list: One year from date of original retail purchase. - Page 44 Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-2288/800-645-9116 Fax: 631-951-2288 Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Vicon Germany Kornstieg 3 D-24537 Neumuenster...
