Product specifications subject to change without notice. ViconNet and its logo are trademarks of Vicon Industries Inc. Kollector Elite, Kollector Pro, VN-306T the Workstation and their logos are trademarks of Vicon Industries Inc. Vicon and its logo are registered trademarks of Vicon Industries Inc.
This manual is delivered subject to the following conditions and restrictions: •= This manual contains proprietary information belonging to Vicon. Such information is supplied solely for the purpose of assisting explicitly and properly authorized users of the ViconNet system. •= No part of its contents may be used for any other purpose, disclosed to any person or firm or reproduced by any means, electronic or mechanical, without the express prior written permission of Vicon.
•= Chapter 4, Operation, describes how to power on, boot and power off the Kollector Elite. •= Chapter 5, Troubleshooting, provides information on what to do in the unlikely event of a Kollector Elite malfunction. •= Chapter 6, Maintenance, provides information on maintaining the Kollector Elite.
CHAPTER 4: OPERATION....................12 About This Chapter............................12 Powering On the Recorder ......................... 12 Powering Off the Recorder ......................... 12 CHAPTER 5: TROUBLESHOOTING................. 13 Table of Contents • • • • iii XX112-01-00 Rev 204 Kollector Elite Network Digital Video Recorder...
Page 6
Table 8-2: Picture Quality vs. Cable Length...................... 17 Table 9-1: Recommended Individually Shielded, Twisted-Pair Cable Types ........... 18 Table 10-1: Technical Information........................19 iv • • • • List of Figures XX112-01-00 Rev 204 Kollector Elite Network Digital Video Recorder...
Vicon ViconNet software application. For software information, refer to the Kollector Elite Software manual, XX112-3X (where X is a revision number between 0 and 9). Kollector Elite can be networked with all models of Kollector Pro, VN-306T Transmitters and ViconNet workstations to create a complete system.
Complete the remainder of this chapter and then proceed to Chapter 3, Installation. When complete, proceed to Chapter 4, Operation to power-on and boot the system. For software information, refer to the Kollector Elite Software Manual, XX112-3X (where X is a revision number between 0 and 9).
Installation For novice or first-time installers, these steps provide the most thorough and accurate instructions. About This Chapter This chapter details the complete installation of the Kollector Elite Digital Video Recorder. The following sections provide information as follows: •= Unpacking the Recorder defines how to remove the unit and accessories from the box.

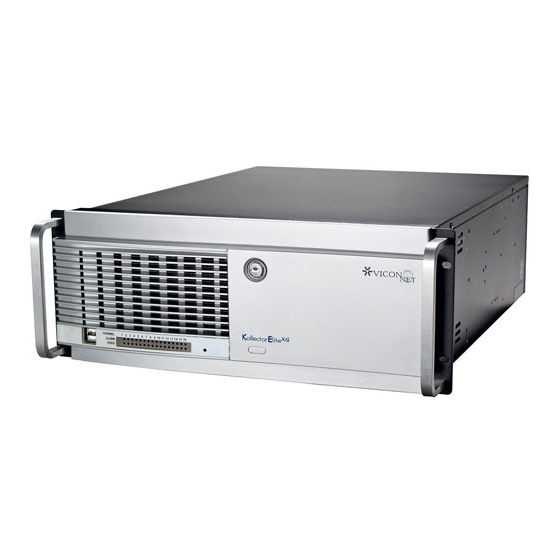

Unit Components This section describes the Kollector Elite unit's front and rear panels. Front Panel Controls and Connections The following picture shows the Kollector Elite front panel. Each panel component is described in the table below. Figure 3-1: Front Panel Layout The Kollector Elite's front panel contains the following components: •=...
Rear Panel Controls and Connections The following picture shows the Kollector Elite rear panel. Each panel component is described below. Figure 3-2: Rear Panel Layout The Kollector Elite's rear panel contains the following components: •= Video Looping Outputs: DB-15 connectors used with provided cables to loop the video inputs out.
Desktop The desk or table must provide a surface of suitable strength for the Kollector Elite’s weight of 45 lb (20.5 kg). In addition, there must be area left around the cabinet to provide suitable airflow for cooling. Do not place heavy items on the cover.
Installing the Kollector Elite After the recorder is mounted permanently, follow the steps in this section to install the Kollector Elite unit hardware. •= Step 1: Connecting the Hardware, below •= Step 2: Connecting External Hardware to Termination Boxes, page 9 •=...
4. Connect the RJ45 cable to the appropriate channel in the rear panel. Sensor Input When using SMSR connectors to connect devices to the Kollector Elite, refer to the guidelines described below, according to the specific device type. NOTE: Speaker (SPK) will be operational in future versions.
Normally Closed Detector: The resistor should be connected between the detector's wire and the ground (GND) connector. NOTE: 16 1KΩ resistors are included. Normally Open Normally Open Normally Closed Normally Closed Figure 3-4: Resistor Connection Types 10 • • • • Installation XX112-01-00 Rev 204 Kollector Elite Network Digital Video Recorder...
Step 3: Connecting Looping Cables Looping cables are required only when you wish to retrieve video (output) from the Kollector Elite. The purpose of the cables is to transmit video signals to a second transmitter. Each cable transmits 8 video signals - Looping 1 transmits signals from cameras 1 to 8 and Looping 2 from cameras 9 to 16.
Operation About This Chapter This chapter details power on, booting and power off of the Kollector Elite Digital Video Recorder. For full programming and operation information, refer to the Kollector Elite Software manual, XX112-3X (where X is a revision number between 0 and 9). The following sections provide information as follows: •=...
If the recorder boots, but does not display the Main Screen, reboot the unit by toggling the front panel power switch OFF and ON. If the recorder still fails to boot, call Vicon Technical Support. Troubleshooting • • • • 13...
Chapter 6 Maintenance The Kollector Elite requires no scheduled maintenance. However, periodically slide out the front foam filter, clean it and reinstall to ensure maximum unit cooling. CAUTION: Do not open the recorder’s top cover for any reason. Failure to follow this instruction can result in serious injury to the user and void the manufacturer’s warranty.
Shipping Instructions Use the following procedure when returning a unit to the factory: 1. Call or write Vicon for a Return Authorization (R.A.) at one of the locations listed below. Record the name of the Vicon employee who issued the R.A.
Let the required picture quality and cable distance provide a guide in choosing the best cable type. For cables other than the approved Vicon types below, contact the manufacturers listed below. Note that “BC” refers to bare copper and “TC” refers to tinned copper.
Best picture 400 (120) 530 (160) 820 (250) ** For longer cable runs, use a Vicon Video Amplifier to obtain a suitable picture. Coaxial Cable Recommendations • • • • 17 XX112-01-00 Rev 204 Kollector Elite Network Digital Video Recorder...
Chapter 9 Twisted-Pair Cable Recommendations CAUTION: Careful selection of the proper cable is essential to obtain the best performance from this equipment. Vicon assumes no responsibility for poor performance when cables other than those recommended are installed. Materials Use a pure copper stranded conductor with or without a tin plating to obtain a low DC resistance. Do not use cable with either a steel or an aluminum stranded conductor because these do not transfer signals effectively for long distances.
Input Voltage 120 - 230 VAC ±10%, 50/60 Hz nominal. NOTE: Vicon requires the use of uninterruptible power supply systems (UPS) to prevent voltage fluctuations that can affect operation and cause damage to the equipment. Failure to comply with this violates the unit warranty.
Page 26
0 to 95% relative, non-condensing Range Storage -4 to 158° F (-20 to 70° C) Temperature Range Storage Humidity 0 to 95% relative, non-condensing Range 20 • • • • Technical Information XX112-01-00 Rev 204 Kollector Elite Network Digital Video Recorder...
Page 27
Vicon Industries Inc. Corporate Headquarters 89 Arkay Drive Hauppauge, New York 11788 631-952-CCTV (2288)/ 800-645-9116 Fax: 631-951-CCTV (2288) Vicon Europe Headquarters Brunel Way Fareham, PO15 5TX United Kingdom +44 (0) 1489 566300 Fax: +44 (0) 1489 566322 Brussels Office Planet II - Unit E...
