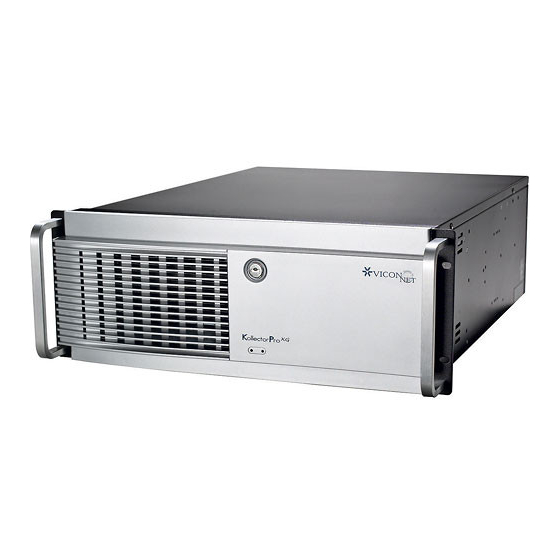

Vicon Kollector Elite XG Connection Manual

Kollector and NVR PTZ/Joystick Keypad Connection Guide
This guide provides detailed procedures for Kollector and VN-NVR PTZ/joystick keypad connection. The specific compatible
models are as follows:
Models V1411X-DVC, V1411J-DVC and V1410X-DVC
The PTZ (joystick) portion of this keypad can be used to provide PTZ control of local and networked cameras in the system.
NOTE: The other function buttons on the keypad are not supported by the driver of the Kollector or VN-NVR unit.
The PTZ/joystick keypad is connected to a Kollector or VN-NVR. The Vicon V422-CONV converter is required for connection.
See Figure for applications.
st
NOTE: A Kollector Pro (1 generation) may support a PTZ keypad under special circumstances. Check with Vicon Technical
Support for compatibility.
It is necessary to install a software driver to enable PTZ control. The minimum driver requirement is the Vicon VN-DRV,
revision 910. All later revision drivers will also support PTZ control operation. The driver must be installed prior to hardware
connection. Refer to Vicon manual XX113-56 or later for details on driver installation.
The keypads are connected to the Kollector and VN-NVR units using their provided termination boxes. These boxes are
wired directly to the V422-CONV converter. These keypad termination boxes also provide power to the keypad via the
provided 12 VDC power supply. See Figure for applications. For more information on keypad functionality and connection,
refer to Vicon manual XX074.
The Vicon V422-CONV, RS-422 to RS-232 converter, plugs directly into the COM port (DB-9 connector) and its terminal
block wired directly to the keypad's termination box. Refer to the Figures that follow. ViconNet is setup to use the keypad in
Main Settings RS232/422/485 Controls. The COM port is configured in ViconNet Setup, selecting the available COM port for
the PC and the "Internal Comport", which is joystick's (keypad) address programmed in the keypad. The internal comport
must not conflict with any camera addresses. Baud rate is usually 9600 baud.
When using the converter, the RS-232 cable length should be limited to about 50 feet for a 9600 baud rate. In addition, care
should be taken, in rack mount installations, where the converter is extended a few inches beyond the back of a rack. To
avoid damage, try to tie wrap the converter to a nearby rail or other solid object. In addition, strain relief should be provided
for the cable connected to its terminal block.
Copyright © 2007 Vicon Industries Inc. All rights reserved.
Product specifications subject to change without notice.
Vicon and its logo are registered trademarks of Vicon Industries Inc.
Vicon Part Number 8009-5112-07-00 Section 1 Rev 1007
VICON INDUSTRIES INC., 89 ARKAY DRIVE, HAUPPAUGE, NEW YORK 11788 TEL: 631-952-CCTV (2288) FAX: 631-951-CCTV (2288) TOLL FREE: 800-645-9116 24-Hour Technical Support: 800-34-VICON (800-348-4266) UK: +44 (0) 1489566300 WEB: www.vicon-cctv.com
Pre-Installation
Before connecting any PTZ keypad, verify the following points:
Review the corresponding installation manuals listed in this guide.
Confirm that all necessary hardware is present (cable, converters, Keypad, etc.).
Confirm that the Kollector or VN-NVR unit is ready for installation and that the software driver is accessible for
installation.
Check the location of the keypad and verify that there is sufficient space to conveniently operate the joystick while
viewing video.
Check that the installation hardware can be connected to a UPS with the other hardware in the event of a power outage
or surge.
Confirm PTZ control is possible in ViconNet using the mouse.
Installation Guideline
1. With the Kollector or VN-NVR unit ready for PTZ keypad installation, locate and install the Keypad in its permanent
position, whether rack- or desk-mounted.
2. Locate and install the V422-CONV converter into the back panel.
3. Make all cable connections between keypad, converter and back panel as shown in the Figure. Verify that the correct
polarity is maintained per the diagram.
4. With power applied to all items, setup Kollector or VN-NVR with the necessary PTZ software drivers and test the PTZ
capability of a local and remote camera dome (see Pre-Installation final step).
5. Installation is complete.

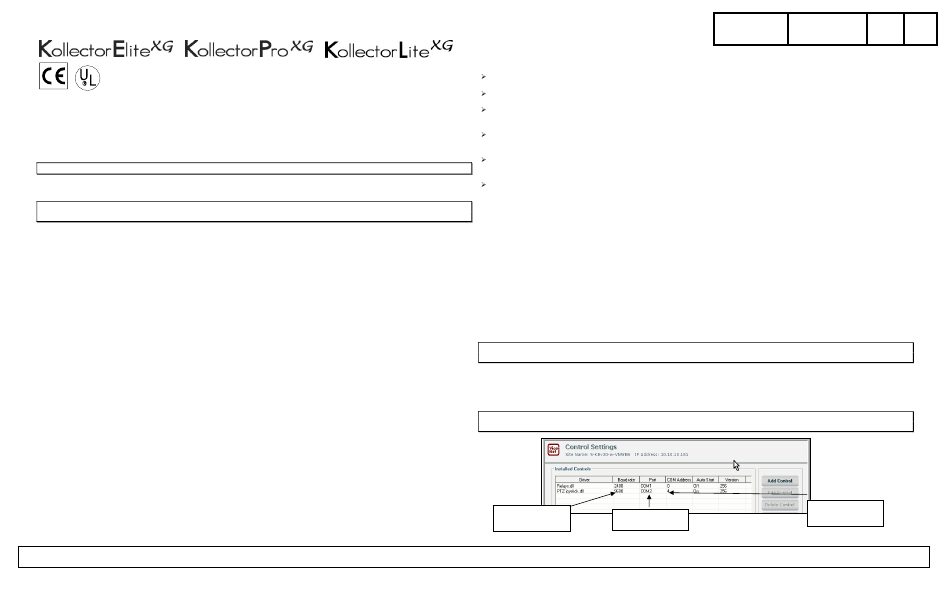

ViconNet Setup
● The Baud Rate and COM Address (9600 and 4 in screen example below) in ViconNet and the keypad should match.
NOTE: COM address can be any address 1-64. When setting address, make sure it does not conflict with a camera PTZ
address.
nd
● For the 2 generation Kollector back panels: Under Port must select correct COM port (typically 1).
st
● For the 1 generation Kollector back panels: Under Port must select correct COM port (typically 2).
● For the VN-NVR back panel: Under Port must select correct COM port (typically 1).
● COM port selection may vary. Other PC workstations may use different COM ports.
Note: The V422-CONV RS-422 to RS-232 converter must be used and plugs into the open COM port on rear of the Kollector
as illustrated in the installation figure.
Baud rate keypad is
COM Port keypad is
programmed to
connected to
NOTES SHEET NO. REV. SEC.
AA112-07-00 1007 1
Address keypad is
programmed to
