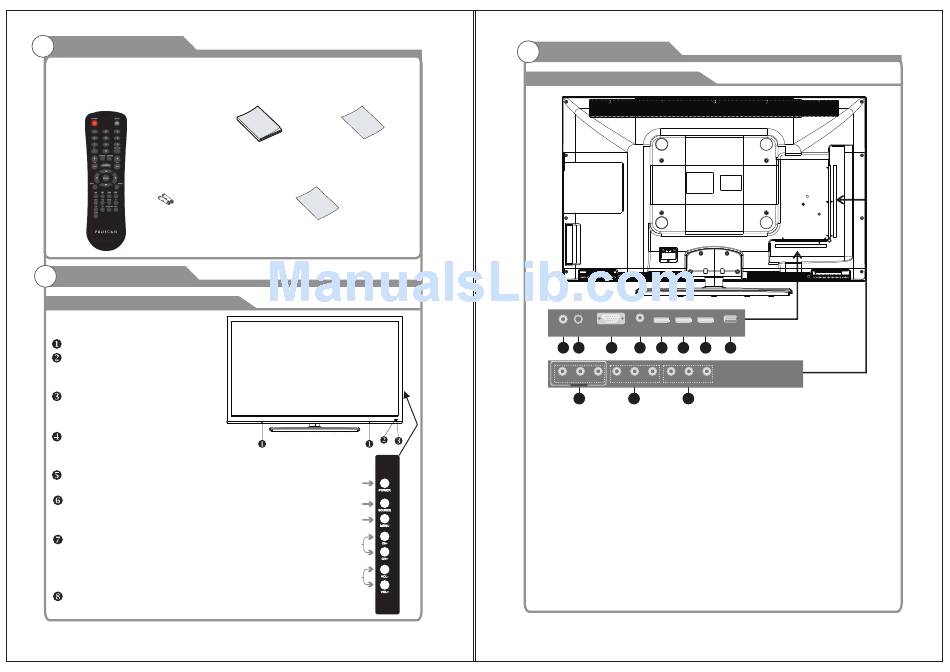

Accessories
Please make sure the following items are included with your LCD TV. If any items are
missing, contact your dealer.
Remote Control &
Batteries (AAAx 2)
General Description
Overview of front and side panel
SPEAKER
REMOTE CONTROL SENSOR
Aim the remote control towards this
spot on the TV.
POWER INDICATOR
Green: In power on mode.
Red: In standby mode.
SOURCE
Toggles between all the available input
sources ( TV, AV, Componente, HDMI 1, HDMI 2, HDMI 3,
MENU
Press to see an on-screen menu of your TV's features.
CH+/-
Press to change channels. In the on-screen menu, use the CH +/-
buttons as up/down arrow buttons.
VOL+/-
Press to increase or decrease the volume.
In the on-screen menu, use the VOL +/-
buttons as left/right arrow buttons.
POWER
Press POWER button to toggle between normal and standby mode.
3
Owner' s Warranty Card
Instructions
Assembllng
Stand Process
PC)
8
4
5
6
7
General Description
Overview of back panel
PC AUDIO HDMI 1 HDMI 2 HDMI 3 SERVICE
VGA
COAXIAL RF
IN PORT
IN
OUT IN
1 2 3 4 5 6 7 8
VIDEO R L VIDEO R L Y Pb Pr
OUT
9 10 11
1. COAXIAL: output 10. VIDEO: input
2. RF: input 11. YPbPr: input
3. VGA(PC): input
4. PC AUDIO: input
5. HDMI 1: input
6. HDMI 2: input
7. HDMI 3: input
8.
SERVICE PORT
9. VIDEO: output
4
