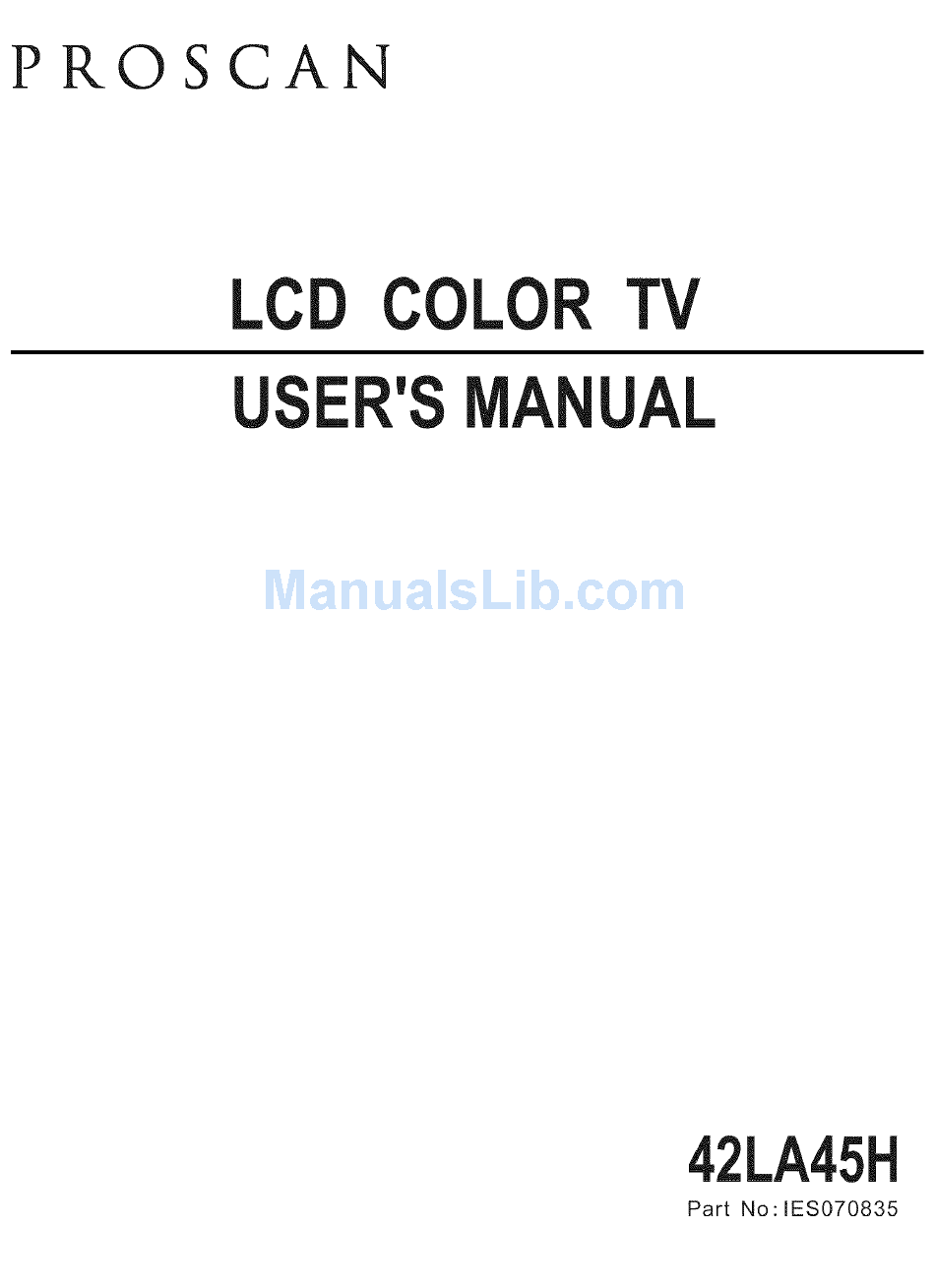

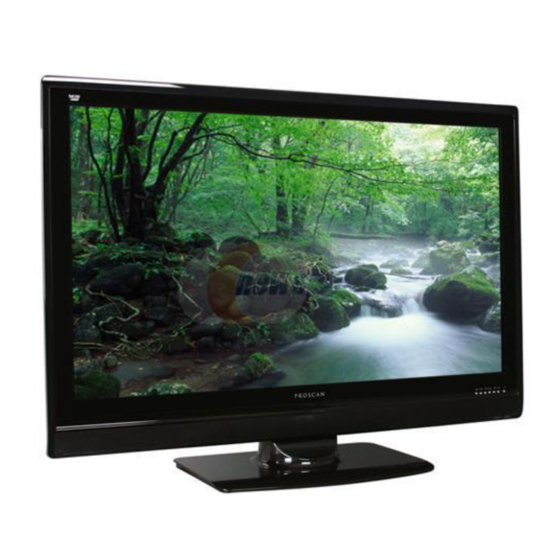

  • Page 1 PROSCAN C LO TV LA45H Part No: IES070835...
  • Page 2: Table Of Contents

    Pleasereadall the safety and operating instructions carefully before you begin. SAFETY CLASS This is an IEC safety class I product and must be grounded for safety. Important SafetyInstructions ........................Preparation for using your newTV......................Selectinga locationfor the TV ..................Learningaboutyour TV....................Connecting yourTV ....................
  • Page 3: Important Safetyinstructions

    CAUTION The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsutated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock. CAUTION: TO REDUCE TfiE RISK OF ELEC- TRIC SHOCK, DO NOT REMOVE COVER(OR BACK).NO USER-...
  • Page 4 important safety instructions 13. UNPLUG THIS APPARATUS DURING LIGHTNING STORMS OR WHEN UNUSED FOR LONG PERIODS OF TIME. 14. REFERALL SERVICING TO QUALIFIED SERVICE PERSONNEL. SERVICING IS REQUIRED WHEN THEAPPARATUS HAS BEEN DAMAGED IN ANY WAY, SUCH AS POWER-SUPPLY CORD OR PLUG IS DAMAGED, LIQUID HAS BEEN SPILLED OR OBJECTS HAVE FALLEN INTO THE APPARATUS, THE APPARATUS HAS BEEN EXPOSED TO RAIN OR MOISTURE, DOES NOT OPERATE NORMALLY, OR HAS BEEN DROPPED.
  • Page 5: Preparation For Using Your Newtv

    Preparation for using your new TV Selecting a location for the TV 1)Place TV on an open bench in a location where light does not directly hit the screen. 2)Place TV far enough from the walls to allow proper ventilation. Inadequate ventilation may cause overheating, which may damage the TV.
  • Page 6 Preparation for using your new TV © HDMI HDMI OPTICAL ANT 75 ®® ®® • _:_© RS232 © © I,EADP,D, VIDEO ©® ® @ © Q HDMI INPUT (:D VIDEO INPUT VGA AUDIO INPUT @ S-VIDEO INPUT @ VGAINPUT (D VIDEO/S-VIDEO AUDIO INPUT (:_ COMPONENT INPUT...
  • Page 7: Connecting Yourtv

    Preparation for using your new TV Connecting your TV Caution: Do not plug the TV in until you have finished connecting all of your equipment. Connectingto A/V equipments To enjoy its multimedia features, you can connect your TV toA/V equipments such as VCD, DVD, STB, Satellite receiver, Camcorder,Audio amplifier etc., and select signal sources using your remote control.
  • Page 8: Connectingto A Computer

    Preparation for using your new TV Connectingto a computer You can use your TV as a monitor/speakers for your computer by connecting through its 15pin standard RGB interface and PC audio interface(AUDIO INPUT4). Connect the devices as shown below. RGB line PC/N_!I [..
  • Page 9: Connectingto A Cable Converter Box

    Preparation for Using your new TV Connecting to a cable converter box This television has an extended tuning range and can tune most cable channels without using a cable Converter box. Some cable companies offer premium pay channels in which signal is scrambled. Descrambling these signals for normal viewing requires the use of a descrambler device which is generally Provided by the cable company.
  • Page 10: Usingthe Remotecontrol

    Using the remote control Preparing the remote control for use Installing the remote control batteries I. Open the battery cover on the back of the remote control. 2. Install two AAA size(1.5V) batteries. Match the + and - signs on the batteries to the signs on the battery compartment.
  • Page 11: Learning Aboutthe Remotecontrol

    Using the remote control Learning about the remote control Power indicator Power ON/OFF -- :ch among TV,Video, S-Video,Component,HDMI,VGA Mute:Mute the sound -- _creen Mode PICTURE:Select the picture the sound mode mode ATSC tuners feature EPG function Selected TV channels -- DISPLAY:Display current Status...
  • Page 12: Understandingthe Tv Features

    Understanding the TV features ® Multimedia - TV receiver, Video monitor and PC display, all in one. • Wider viewing angle, 16:9 and 4:3 display- over 160 o viewing angle, 16:9 ergonomical display panel • Digital display device - truthfully reproducing the images, without distortion or blurring, irrespective of magnetic or geomagnetic effect.
  • Page 13 Basic Operations Pressing [ Mute ] button you will mute the sound, press again to resume sound. Pressing [ PICTURE ] button you will select the picture mode from Standard, Movie, User to Vivid, you can adjust the picture mode as your demand. Pressing [ AUDIO ] button you will select the sound mode from Standard, Speech, User to Music.
  • Page 14 Basic Operations Press [.,,.or,,-]to select the channels, but you can not choose the skipped channels, If you want to choose the skipped channels, press the number directly. Pressing [ CCD ] button will change the CCD mode. Pressing [ MTS/SAP ] button will change the sound mode(Mono, Stereo, SAP). Pressing [ SLEEP ] button you can set up the sleep time.
  • Page 15: Menuoperation

    Menu operation Video mode adjustment 1.Press MENU. The OSD opens. 2.Press Aorv to highlight Video, then press to enter the Video menu. 3.Press A orvhighlight an option, then press4 orl_to adjust the option. You can adjust: Picture Mode-Adjusts the Picture Mode.
  • Page 16: Setup

    Setup (1) OSD Language: Use the arrow right or left button to choose the OSD Language among English, Spanish and French. (2) Screen Mode: Use the arrow button to choose the screen aspect ration from Normal, Wide, Cinema to Zoom. (3)DPMS This is a good function for monitor.
  • Page 17 About TV PG Rating: The TV ratings are divided into two groups: age-based and content-based. Defined as Contents Defined as TV-Y All children Fantasy Violence TV-Y7 Directed to older children Suggestive dialogue TV-G General audience Strong language TV-PG Parental Guidance suggested Sexual situations TV-14 Parents Strongly cautioned...
  • Page 18: Tv Settings

    (3) Input Block: You can block the input source by this function, for example, if you want to blockAV input, just highlight 2 [AV] and push the [ENTER] button, TheAV input will not be seen in the screen. (4) Change Password: At the first time, you can use the default password.
  • Page 19: Troubleshooting

    Appendix Troubleshooting Before calling a service technician, please check the following table for a possible cause of the problem and some solutions. Possible Solutions Symptoms • Make sure the power cord is plugged in, then press [Power]. TV will not turn on ,, The remote control batteries may be dead.
  • Page 20: Specifications

    Appendix Specifications Model 42LA45H 42inches Diagonal display size American TV standard ATSC/NTSC system Television system Audio multiplex BTSC system VHF:2~13 UHF:14~69 CATV:l~125 Digital Terrestrial Broadcast (8VSB): 2-69 Channel coverage Di_lital cable !64!256 QAMI: 1~135 PC mode 640 x 480/60Hz,800 x 600/60Hz,1024 x 768/60Hz YPbPr/YCbCr mode 4801/60Hz,480P/60Hz,720P/60Hz,10801/60Hz Resolution...
