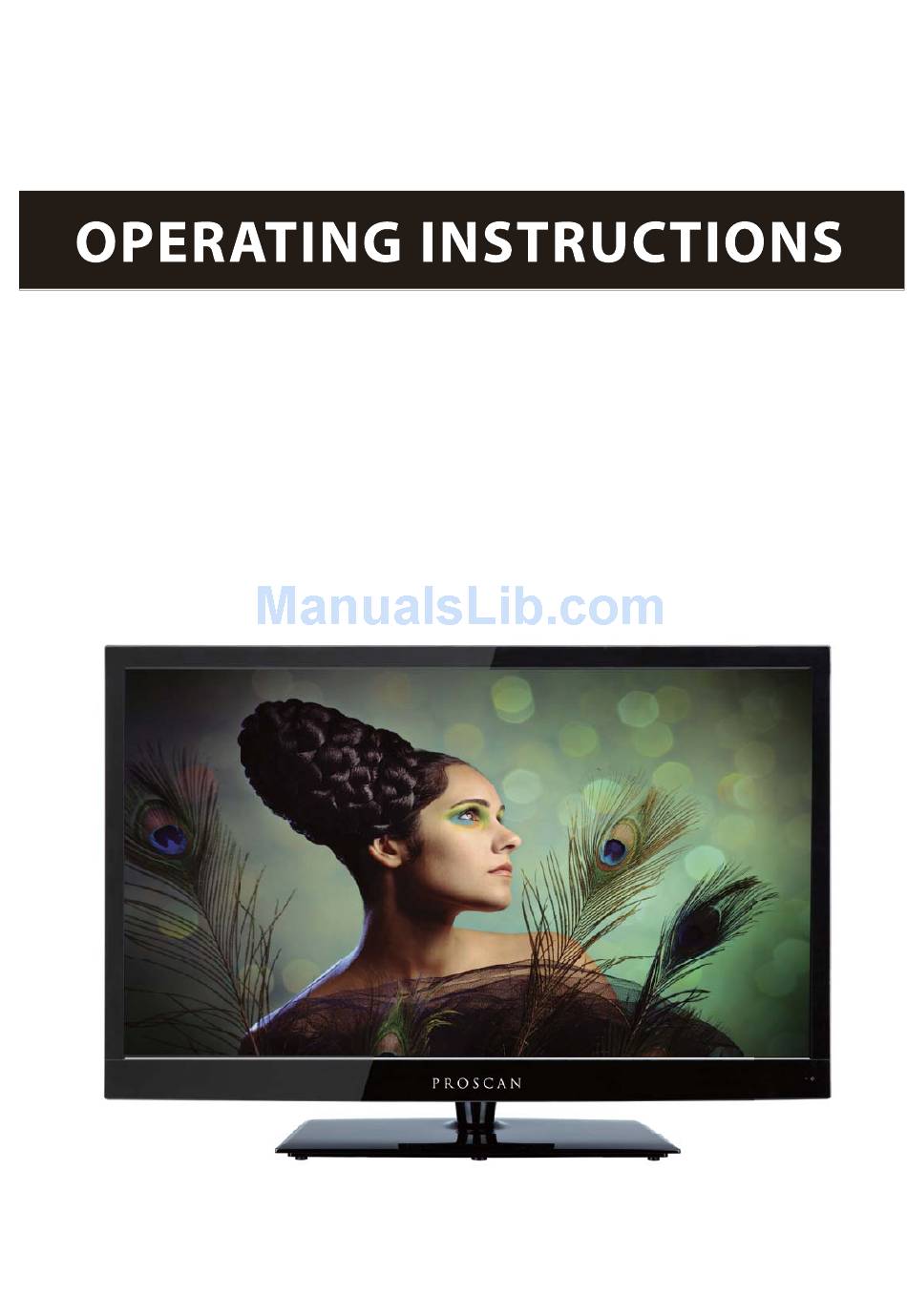

- Page 1 PRO S CA N 50" 1080p LCD Television PLCD5085A...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Unit and Accessories Product Feature Introduction 1. Front View 2. Rear View 3. Instruction for Wall Mount 4. Remote Control Basic Operation OSD Menu 11-18 1. Picture menu 11-12 2. Sound menu 3. Channel menu 4. -
Page 4: Caution
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information Electrical safety the power cable Physical safety... -
Page 6: Unit And Accessories
Unit and Accessories and Product Feature Unit and Accessories TV set INPUT -/-- Instructions for fixing TV stand Note: the pictures below are only for reference PICTURE SOUND SLEEP DISPLAY The parts Installation needed for installing the stand (supplied) (Put your TV on the table with its rear cabinet facing upwards.) 1. -
Page 7: Introduction
Introduction Introduction 1. Front View Power Indicator Remote Control window (Keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20... -
Page 8: Rear View
Introduction 2. Rear View AC POWER IN COAX PC-IN HDMI 1 HDMI 2 HDMI 3 (SERVICE) VIDEO R in L in AUDIO OUT HEADPHONE OUT 1). COAX : Digital audio output. RF : Connect antenna or cable 75 Ohm coaxial to receive TV signal. : Connect it to the HDMI output of video device. -
Page 9: Instruction For Wall Mount
It is strongly recommended to contact a technician for professional assistance for wall mount installation. PROSCAN is not responsible for any damage to the product or injury to yourself or others resulting from the wall-mounting. -
Page 10: Remote Control
Introduction 4. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. INPUT INPUT: Press to display the input source menu. -
Page 11: Remote Control
Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3. -
Page 12: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord, and turn on the switch. 2. -To turn on the TV Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. -
Page 13: Osd Menu
OSD Menu OSD Menu 1. Picture menu Description Picture Settings: Press button to enter the Picture Settings menu. Picture mode: Select between Dynamic, Standard, Movie, User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status. - Page 14 OSD Menu OSD Menu Advanced Picture Settings: Press button to enter the Advanced Picture Settings. Dynamic Contrast: Select the dynamic contrast mode between Off, Low, Medium and High. Film Mode: Activate or deactivate the Film Mode. Noise Reduction: If the broadcast signal received is weak, you can select the DNR option to reduce the video noise level between Off, Low, Medium and High.
-
Page 15: Sound Menu
OSD Menu OSD Menu 2. Sound menu Description Sound Settings: Press button to enter the Sound Settings menu. Sound Mode: Select your desired picture mode as follow: Dynamic, Standard, Soft and User. You may select the sound mode directly by pressing the SOUND button on the remote control. -
Page 16: Channel Menu
OSD Menu OSD Menu 3. Channel menu Cable Description Channel List: Display the channel list. Favorite List: Display the favorite channel list. Channel Settings: Press > button to display the Channel Settings menu. Press button to select the item, and press OK button to change the setting. -
Page 17: Parental Control Menu
OSD Menu OSD Menu 4. Parental Control menu You must enter the password to gain access to the Parental Control menu. The default password is 0000. You may modify the following options: Description V-CHIP: Press button to enter the V-CHIP menu. US V-CHIP: Press button to enter the US V-CHIP menu. - Page 18 OSD Menu OSD Menu Canada V-CHIP: Press button to enter the Canada V-CHIP menu. English Rating: Select among: C, C8+, G, PG, 14+ and 18+. French Rating: Select among: G, 8ans+, 13ans+, 16ans+ and 18ans+. Block UnRated Show: Activate or deactivate the Block UnRated Show function. Downloadable Rating: Setting the Downloadable Rating in DTV mode when the program has the rating information.
-
Page 19: Setup Menu
OSD Menu OSD Menu 5. Setup menu Description Closed Caption: Press button to enter the Closed Caption menu. Caption Display: Activate or deactivate the Caption displaying. Analog Caption Type: Allow you to select the basic selection among: CC1, CC2, CC3, CC4, Text1, Text2, Text3 and Text4. -
Page 20: Others Menu
OSD Menu OSD Menu 6. Others menu Description Blue Back: Turn on/off the blue screen function when there’s no signal. No Signal Power Off: The TV will turn off automatically if there’s no signal after 10 minutes. No Operation Power Off: The TV will turn off automatically if there’s no operation on the TV after 3 hours. -
Page 21: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the TV has failed or its performance has seriously deteriorated, check the TV by using the following simple troubleshooting guide. If you can not resolve the problem with this troubleshooting, please call Technical Support. No power - Check all power connections to the TV. - Page 22 50”LCD TV 50 inches (diagonal) 350nit 4000:1 176(H)/176(V) 16.7M 60Hz 8W +8W 235W * Product specifications and appearance are subject to change without notice. HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
