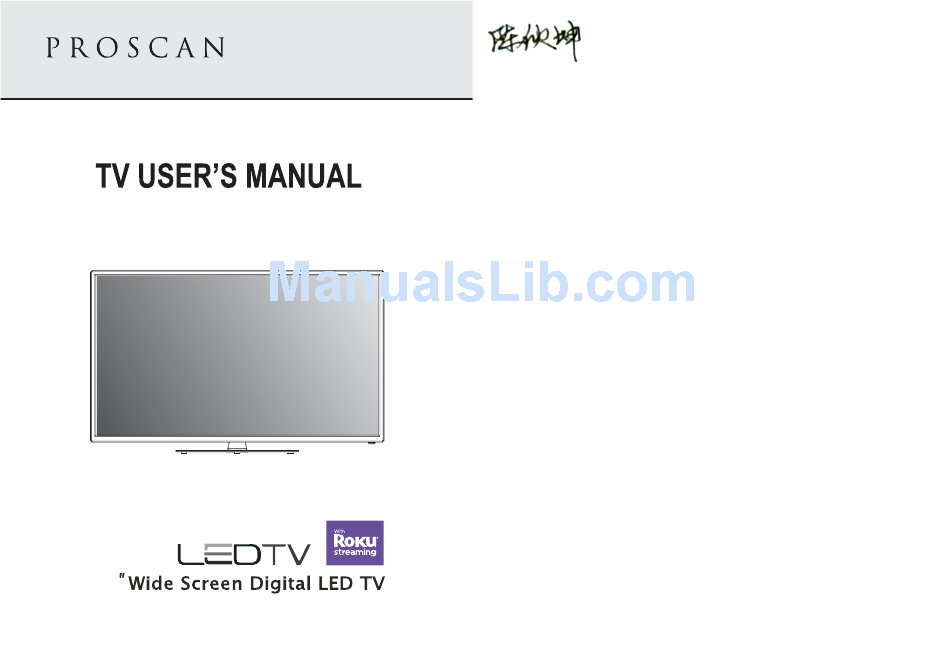

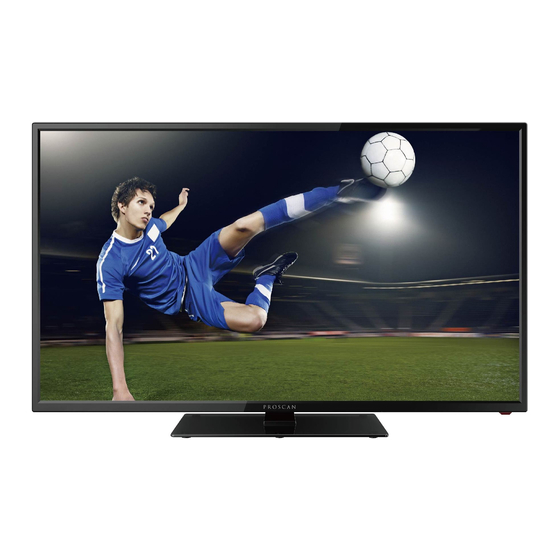

  • Page 1 2015.03.20 18:57:20 +08'00' PLDED4831A-C-RK...

  • Page 2: Table Of Contents

    4.3.Customizing theTIME Settings 4.4.Customizing the SETUP Settings 4.5.Customizing the Patental Settings TV Base Stand assemble 4.6.Customizing the TV Settings 5. PC Mode............6. Roku Quick Guide......... 7. Roku Important Product Information&Warranty......... 8. TROUBLE SHOOTING........9. SPECIFICATIONS.......... Initial Setup 3.1. Initial Installation 3.2.

  • Page 5: Tv Base Stand Assemble

    TV Base Stand assemble 4*10BMH 4*15BAH 3.Mounting on the wall This unit is VESA-complian,and is designed to be wall-mounted with a VESA-compliant 7.87"x7.87"(200mmx200mm)mounting kit designde for flat-panel TVs(not supplied).Mount this unit according to the instructions included in the monting kit. Length of screw should not exceed 11mm NOTE Remove the base stand before mounting the unit on the wall.
  • Page 6 (For Service) AUDIO OUT PC AUDIO HDMI3 HDMI2 /MHL COAXIAL AUDIO VIDEO/Y HDMI1 1. USB (For Service) AUDIO OUT: Output Audio L / R (left / right)
  • Page 7 MHL: sound from speakers Back one level in the GUI under ROKU. ASPECT : Selects the screen size Universal Remote Code:08F7 (Universal Rmote Control is not included)
  • Page 8 adaptor COAXIAL AUDIO VIDEO/Y HDMI1 (For Service) AUDIO OUT COAXIAL AUDIO VIDEO/Y HDMI1 PC AUDIO HDMI3 HDMI2 /MHL...
  • Page 9 (For Service) AUDIO OUT COAXIAL AUDIO VIDEO/Y HDMI1 PC AUDIO Note:Coaxial output HDMI3 HDMI2 /MHL (For Service) COAXIAL AUDIO VIDEO/Y HDMI1 AUDIO OUT PC AUDIO HDMI3 HDMI2 /MHL COAXIAL AUDIO VIDEO/Y HDMI1...

  • Page 10: Initial Setup

    4.1. Customizing the PICTURE 3. Initial Setup Select TV source for example. (Press SOURCE bu on to select TV mode) 1. Press the POWER bu on to turn the LED TV on. 2. Press the MENU bu on on the remote control to display the Main menu, and use the to select the PICTURE.

  • Page 11: Customizing Thetime Settings

    Customizing the SOUND 4.2. 4.3. Customizing the TIME Se ngs Select TV source for example. (Press SOURCE bu on to select TV mode) Select TV source for example. (Press SOURCE bu on to select TV mode) 1. Press the POWER bu on to turn the LED TV on. 1.

  • Page 12: Customizing The Setup Settings

    4.4. Customizing the SETUP Se ngs Select TV source for example. (Press SOUCE bu on to select TV mode) 1. Press the POWER bu on to turn the LED TV on. 2. Press the MENU bu on on the remote control to display the Main menu, and use the bu ons to select the SETUP.
  • Page 13 4.5. Customizing the LOCK Se ngs Select TV source for example. (Press SOURCE bu on to select TV mode) 1. Press the POWER bu on to turn the LED TV on. 2. Press the MENU bu on on the remote control to display the Main menu, and use the bu ons to select the LOCK.
  • Page 14 Use the bu on to highlight the “US” item, then press the n to enter into the following menu. Use the bu on to highlight the “Canada” item, then press bu on to Canada enter into the following menu. Exit Use the bu on to highlight the “TV”...
  • Page 15 4.6. Customizing the CHANNEL Se ngs Select TV source for example. (Press SOUCE bu on to select TV mode) 1. Press the POWER bu on to turn the LED TV on. 2. Press the MENU bu on on the remote control to display the Main menu, and use the bu ons to select the CHANNEL.

  • Page 16: Pc Mode

    5. PC Mode Se ng up your PC so ware (based on Windows XP) The Windows display-se ngs for a typical computer are shown below. But the actual screen on your PC will probably be di erent, depending upon your par cular version of Windows and your par cular video card.
  • Page 17 Let’s get started.
  • Page 18 Roku Streaming Stick What you need Wireless Router High speed Internet...
  • Page 19 Know your Streaming Stick [MHL CONNECTOR] Plugs into the MHL port on the back of your TV. [STATUS LIGHT] Signi es it is on when lit, or activity when shing. [RESET BUTTON] Used to reset your Streaming Stick...
  • Page 20 What to do Plug it in Plug your Roku Streaming Stick into the MHL port of your Roku Ready TV. Simple as that!
  • Page 21 Connect to network Now you can grab your remote and jump right into guided setup. Have your network name and password ready and do the following: Select your network from the list of available networks. Enter your network password, if you use one. Remember, network passwords are case sensitive.
  • Page 22 What to do (cont.) Complete guided setup It’s the nal stretch and hooray—it’s on-screen instructions and you’ll: Get the latest software. Link the Roku Streaming Stick to your Roku account on your computer.
  • Page 23 Your Roku account: During setup, you’ll be prompted to create your Roku account online at roku.com/link. Your Roku Streaming Stick will generate a unique code that links your player to your new account. Roku accounts are free and secure. And while a valid credit card number is required to create your account, rest assured you will only be...

  • Page 24: Troubleshooting

    Troubleshooting Having trouble completing setup? Don’t worry: it’s usually an easy x. If you cannot see a picture on your TV: Make sure your TV is turned on. (This tip could save you some embarrassment.) Make sure the video input on your TV or home theater receiver is set to match the output (usually HDMI or MHL)
  • Page 25 If you cannot connect to your wireless home network during guided setup: If you are not getting 3 or more signal-strength bars above your wireless network, adjust the location of your Roku Streaming Stick and/ or wireless router. Make sure there are no obstructions, like cement walls, between your Roku Streaming Stick and your...
  • Page 26 Troubleshooting (cont.) Make sure you enter the correct password, if your network is security-enabled (password is case sensitive). If you have turned o SSID broadcasting on your wireless router, you can add your network by selecting “My network is not shown” from the “Wireless”...
  • Page 27 (cont.) Make sure the volume on your TV or home theater receiver is turned up and isn’t on mute.
  • Page 28 Roku Streaming Stick Important Product Information The License Agreement The Roku and third-party software license terms can be found at: www.roku.com/ license. Use of the Roku Streaming Stick (“Streaming Stick”) constitutes acceptance of as well as agreement to those license terms. One (1) Year Limited Hardware Warranty Subject to the additional terms and conditions set forth below, Roku provides this Limited Warranty:...
  • Page 29 Important: with your request: (a) model number, (b) serial number, (c) problem description, (d) software version (located in the System (e) date of purchase, (f) place of purchase (re-seller or online place of purchase), and ( ) return shippin Scope of and Limitation on Warranty The warranty on the Streamin Stick is limited to the repair or replacement of defective units as described in the Limited Warranty section above.
  • Page 30 FCC Caution: responsible for compliance could void the user’s authority to operate this equipment. channels 1 through 11. Wireless Radio Use: band. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
  • Page 31 Use and Handling of small children. Stick or accessories. humidity or direct sunlight. www.roku.com trademarks or registered trademarks of Roku, Inc.
  • Page 33 PLDED4831A-C-RK 1920x1080 5000:1 8.5ms 120W AC 100-120V~ 60Hz Audio output USB(For service)
