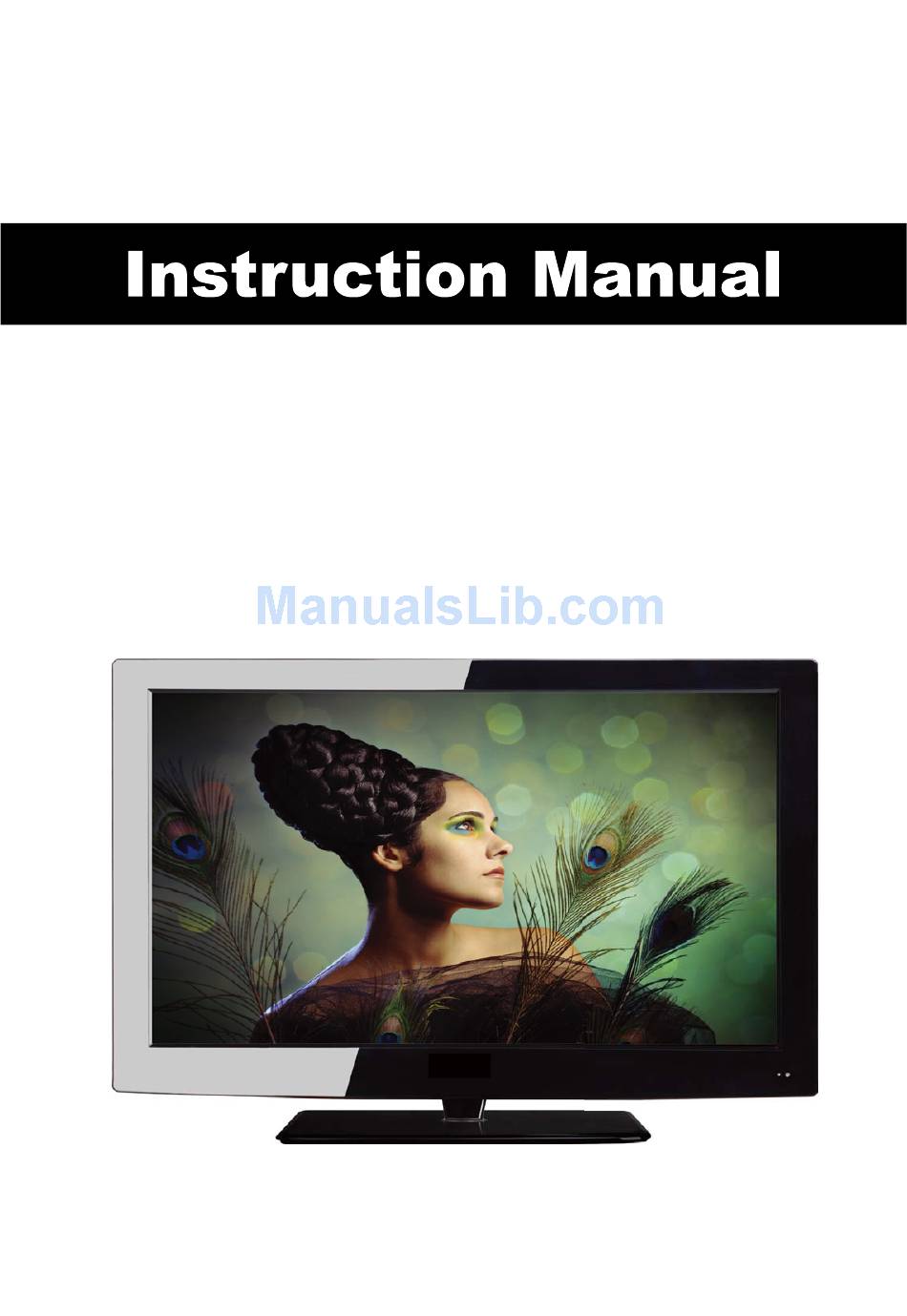

- Page 1 PRO S CA N 32” LCD Television TV with DVD MODEL: PLCD3271A-B PRO S CA N...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Unit and Accessories Introduction 1. Front View 2. Rear View 3. Instruction for Wall Mount 4. Remote Control Basic Operation OSD Menu 11-17 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. -
Page 4: Caution
Caution Caution is intended to alert the user to the presence of un-insulated "dangerous to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information Electrical safety power Physical safety... -
Page 6: Unit And Accessories
Unit and Accessories Unit and Accessories INPUT -/-- PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU TV set Remote control Batteries: 2xAAA Instructions for fixing stand Instructions for User's manual AC Cord fixing stand... -
Page 7: Introduction
Introduction Introduction 1. Front View Power Indicator Remote Control window (Keep clear) 1). (IR) Infrared Receiver: Receives IR signals from the remote control. (Power on/Standby)LED Indicator: Press POWER to turn on and off. Indicator on(Red) Standby mode Indicator on(Green) Power on mode The effective receiving range for the signal is 5-8 metres from the front of the remote control window, and 30 to the left or right side and 20... -
Page 8: Rear View
Introduction 2. Rear View Coax for Service HDMI1 HDMI2 HDMI3 PC Audio in Video L i n R in AUDIO OUT AC POWER IN: Connect it to AC100-240V~ 50/60Hz power supply with the mains cable. Headphone out : Connect it to your headphone or audio equipments. USB for Service : For service use only. -
Page 9: Instruction For Wall Mount
TV set. - Do not fasten the screws too tight for this may damage the TV or cause the TV to fall, resulting in personal injury. PROSCAN is not liable for these kinds of incidents - Do not mount your PROSCAN TV at more than a 15 degree tilt. -
Page 10: Remote Control
Introduction 4. Remote Control The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote control may not work correctly if it is operated out of range or out of angle. POWER(red button): Turn the TV on/standby. INPUT INPUT: Press to display the input source menu. - Page 11 Introduction Installing Batteries 1. Open the battery compartment cover on the back of the remote control. 2. Insert two 1.5V AAA size batteries observing the polarity markings inside the battery compartment. Don’t mix different types or used batteries with new ones. 3.
-
Page 12: Basic Operation
Basic Operation Power on/off 1. -To turn on the Switch Press POWER button on the TV or remote control. -To turn off the TV Press POWER button on the TV or remote control. Input Source select Press INPUT button on the TV set or remote control to display input Component source menu, and use CH+/- button on the TV set or button... -
Page 13: Osd Menu
OSD Menu OSD Menu 1. Picture menu Description Picture mode: Select between Standard, Dynamic, Mild, Sports User and Power Saving. You may select the picture mode directly by pressing the PICTURE button on the remote control. Note: when select the "Power Saving", the machine is in energy-saving status. Contrast: Control the difference between the bright and dark regions of the screen picture. -
Page 14: Audio Menu
OSD Menu 2. Audio menu Setup Picture Audio Time Lock Channel Flat Sound Mode Bass Treble Balance Surround SPDIF Type Audio Language English Select Move Exit MENU Description Sound Mode: Select your desired picture mode as follow: Flat, Music, Movie, Sports and User You may select the sound mode directly by pressing the SOUND button on the remote control. -
Page 15: Time Menu
OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central and Mountain. Daylight Saving Time: Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 16: Setup Menu
OSD Menu 4. Setup menu Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom just scan. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the V-Position, H-Position, Clock, Phase or even perform an Auto adjustment. -
Page 17: Lock Menu
OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Description Change password: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password. -
Page 18: Channel Menu
OSD Menu 6. Channel menu Description Air/Cable: Allow you to select antenna between Air and Cable. If you selet “Cable”, the following items(Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to use. Auto Scan: Enter the Auto Scan menu to start auto scan. If you select “Cable”... - Page 19 OSD Menu Show/Hide: Allow you to show or hide the channels. button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allow you to setup a label for the channel. Press button to select the position of the table, and press button to select the...
-
Page 20: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV. - Page 21 Technical Specifications 32”(Diagonal) Viewing Picture Size (diagonal) Resolution 1366x768 Aspect Ratio 16:9 Display colours 16.7M Brightness 350 cd/m Contrast ratio 3000:1 Response time View angle (H)/176 TV system Digital TV: ATSC Analog TV: NTSC ATSC decode Video System MPEG-2MP@HL Sound System AC-3 Video System NTSC NTSC Sound System...
