Truma Saphir comfort RC Operating Instructions Manual
Air conditioning unit (australia)
Hide thumbs
Also See for Saphir comfort RC:
- Operating and installation instruction (80 pages) ,
- Manual (32 pages) ,
- Operating instructions manual (11 pages)
Subscribe to Our Youtube Channel
Related Manuals for Truma Saphir comfort RC
Summary of Contents for Truma Saphir comfort RC
- Page 1 Saphir comfort RC (Australia) Operating instructions Page 2 Installation instructions Page 9 To be kept in the vehicle!
-
Page 2: Table Of Contents

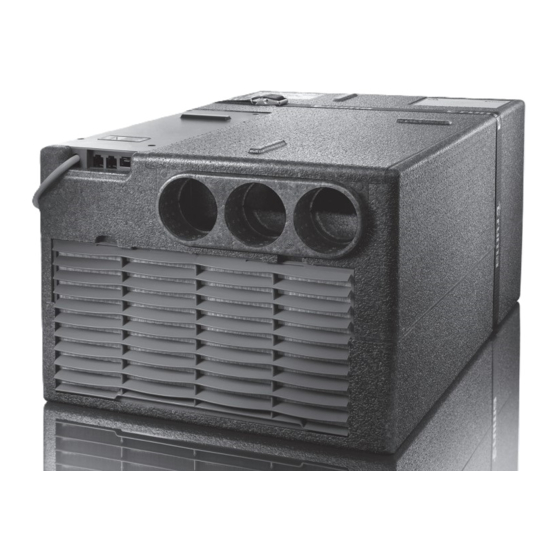

Air conditioning unit Saphir comfort RC Installation example Air conditioning unit Saphir comfort RC 2a Supply air intake 2b Supply air outlet 3a Circulatory air return 3b Air outlets Infrared (IR) remote control Infrared (IR) receiver Table of contents Symbols used ................. 3 Declaration of conformity .......... -
Page 3: Symbols Used
Notes for the use of air conditioners Symbol indicates a possible hazard. – The Saphir comfort RC air conditioning unit is designed Comment including information and tips. for minimal power consumption. Nevertheless, you should check before taking the system into operation whether the camping site has adequate fuses (minimum 6 A). -
Page 4: Operating Instructions
Operating instructions Before starting to use the device, it is essential that the Operating Instructions and “Safety instructions” be read carefully. The vehicle owner is responsible for ensuring that the device can be operated in the proper manner. Remote control The symbols shown on the display become visible depending on the setting. -
Page 5: Ir Receiver And Manual On / Off
IR receiver and manual on / off Mode There is an additional pushbutton on the receiver (m), with Select the required operating mode by pressing the “MODE” which the unit can also be switched on and off without the button one or more times. remote control (e.g. -
Page 6: Timer On / Off
Timer ON / OFF The air conditioning unit on / off time can be set in advance from a minimum of 15 minutes up to a maximum 24 hours, starting from the current time. To carry out programming, switch on the unit with the remote control. -
Page 7: Ir Remote Handset Battery Change
IR remote handset battery change Technical data Please be sure to use leak-proof micro-batteries only, type Determined on the basis of EN 14511 and the Truma test LR 3, AM4, AAA, MN 2400 (1.5 V). conditions. The battery compartment is located on the rear of the remote Designation control unit. -
Page 8: Installation Dimensions
Warranty conditions – The company will only provide service on presentation of proof of purchase, on either the Truma product, or the Caravan / RV / Pleasure Craft in which the Truma product has been installed, to any authorised service agent. The pur-... -
Page 9: Installation Instructions
2 fastening brackets (3) at the sides. – modifications to the unit (including accessories), – failure to use original Truma parts as replacement parts and accessories, – failure to follow the installation and operating instructions. -
Page 10: Cold Air Distribution And Circulating Air Return Feed
Slide the cold air ducts (10) into the cold air outlets of the unit and route to the air outlet nozzles. Ensure that the cold air ducts are firmly seated in the cold air outlets. Truma can supply a sound muffler for installing in the cold air system (part no. -
Page 11: Installing The Ir Receiver
Ø Insert plug of IR receiver cable (17) into socket (19). Truma will supply side parts (16) in 8 different colours for finishing off the cover frames (please contact your dealer The port (18) is a com port for communication and is not for details). - Page 12 In Australia, always notify the Dometic Service Centre if problems are encountered; in other countries the relevant service partners should be contacted (see Service Booklet or www.truma.com). Having the equipment model and the serial number ready (see type plate) will speed up processing.
