Step 1

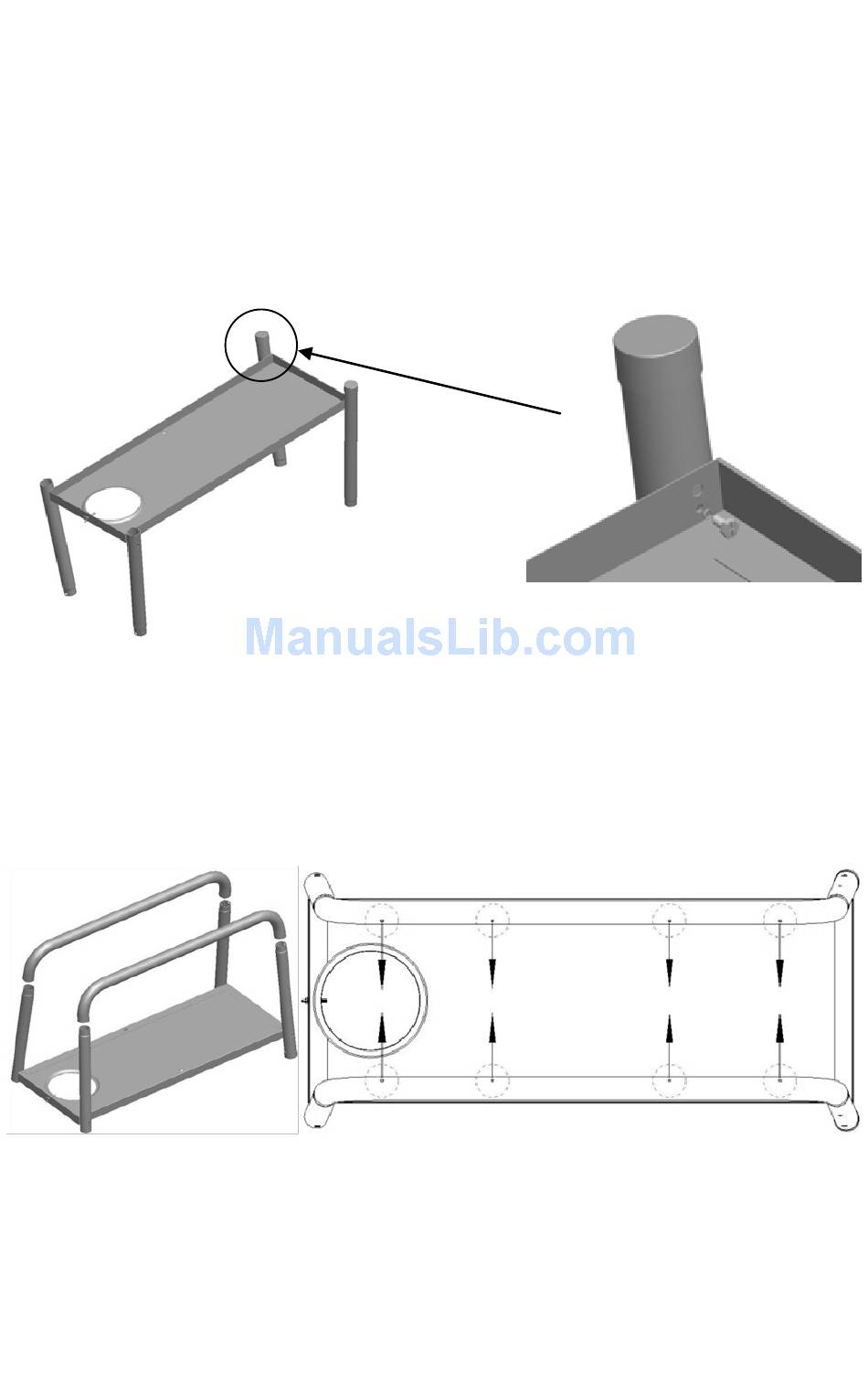

Attach the LEFT LEGS & RIGHT LEGS to the BASE using four (4) ½" BOLTS and four
(4) ¼" LOCK WASHERS as shown. When you install the LEFT LEG & RIGHT LEG,
please make sure that the holes at the top of the LEGS are facing out. Please note
that the wheel legs have inside and outside sides. The axel will not fit through the
legs if the outside of the leg is not facing out
Step 2
Attach the LEG CROSSBAR to the frame as shown making sure that the holes on the
CROSSBAR are facing inward. See below.
OM5050E.2
10
™ & © Char-Griller / A&J Mfg.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5050 and is the answer not in the manual?

Questions and answers

Related Manuals for Char-Griller 5050

Summary of Contents for Char-Griller 5050

  • Page 1 Step 2 Attach the LEG CROSSBAR to the frame as shown making sure that the holes on the CROSSBAR are facing inward. See below. OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 2 Attach BOTTOM SHELF to the LEGS (as shown below). Step 4 Install the LEG BRACES to the LEGS using eight (8) LOCK WASHERS and eight (8) shown. Remember to NOT tighten the bolts until completing ½” BOLTS as step 6. OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 3 Make sure to insert the bolt first through the lock washer then the flat washer then through the grill body as shown. Turn grill assembly up on end as shown and tighten ALL nuts and bolts. OM5050E.2 ™ & © Char-Griller / A&J Mfg.

  • Page 4: Grill Body

    0.40” Bolt Slider Bracket Figure 3 Figure 2 Slider Bracket Figure 1 Stopper Bracket GRILL BODY CATCH PAN CATCH PAN Support Bracket Side Bracket CATCH PAN Figure 4 Stopper Bracket Slider Bracket OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 5 Hose Hose GREASE GREASE GREASE be on the outside of be on the outside of be on the outside of TRAY TRAY TRAY the leg brace. the leg brace. the leg brace. OM5050E.2 ™ & © Char-Griller / A&J Mfg.

  • Page 6: Electronic Igniter

    WIRE to the backside of the ELECTRONIC IGNITER, which is attached to the back side of the CONTROL PANEL. Any wire can go into any of the three sockets on the Electronic Igniter. Burner Electronic Igniter Igniter Wire OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 7 BOLT should first go through a FLAT WASHER then the DAMPER then the GRILL BODY then another FLAT WASHER then a LOCK WASHER and then secured with a HEX NUT. See below. OM5050E.2 ™ & © Char-Griller / A&J Mfg.

  • Page 8: Lock Washer

    SIDE HANDLE. See below. Lock Washer Step 14 Attach the HOOD HANDLES to the GRILL HOODS with four (4) LOCK WASHERS and four (4) WING NUTS as shown below. Lock Washer OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 9 HOOD and secure with two (2) HEX NUTS and two (2) ½” BOLTS for each CHIM- NEY, see below. Step 16 Insert the THERMOMETERS through BEZEL into the GRILL HOODS and secure with two (2) WING NUTS as shown. OM5050E.2 ™ & © Char-Griller / A&J Mfg.

  • Page 10: Hinge Pin

    HINGE PIN from inside the charcoal grill through the HOOD then through the Gas HOOD and Body as shown. Then insert COTTER PINS through the holes in the three HINGE PINS. Hinge Pin OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 11 UP SHIELDS over the BURNER TUBES then hang the FIRE GRATE/ ASH PAN from the FIRE GRATE HANGERS on the catch tabs that are welded to the inside of the CHAR- COAL GRILL BODY sides. Fire Grate Hangers Fire Grate/Ash Pan Pot Stand Flare-up Shields OM5050E.2 ™ & © Char-Griller / A&J Mfg.

  • Page 12: Cooking Grates

    Slide the GREASE TRAY into place on the guide rails under the Side Burner as shown below. Insure that the GREASE TRAY is centered under the burner. Side Burner Housing Grease Tray OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 13 L.P. Gas cylinder evacuation can be accomplished during each purging by using a Type 1connection. The Type 1 valve outlet has an external 1 5/16” ACME right hand tread which will accept this connection. OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 14 Then re-attach the igniter button by turning it clockwise. Press the igniter button and make sure all 3 igniters that are attached to the burner tubes are creating a spark. Step 24 Tighten ALL BOLTS and NUTS. OM5050E.2 ™ & © Char-Griller / A&J Mfg.
  • Page 15 Any remaining glue residue can be cleaned off with a spray lubricant like WD-40 . Do NOT use any other type of solvent or cleaner because this will dam- age the finish/paint/coating on the grill. OM5050E.2 ™ & © Char-Griller / A&J Mfg.
