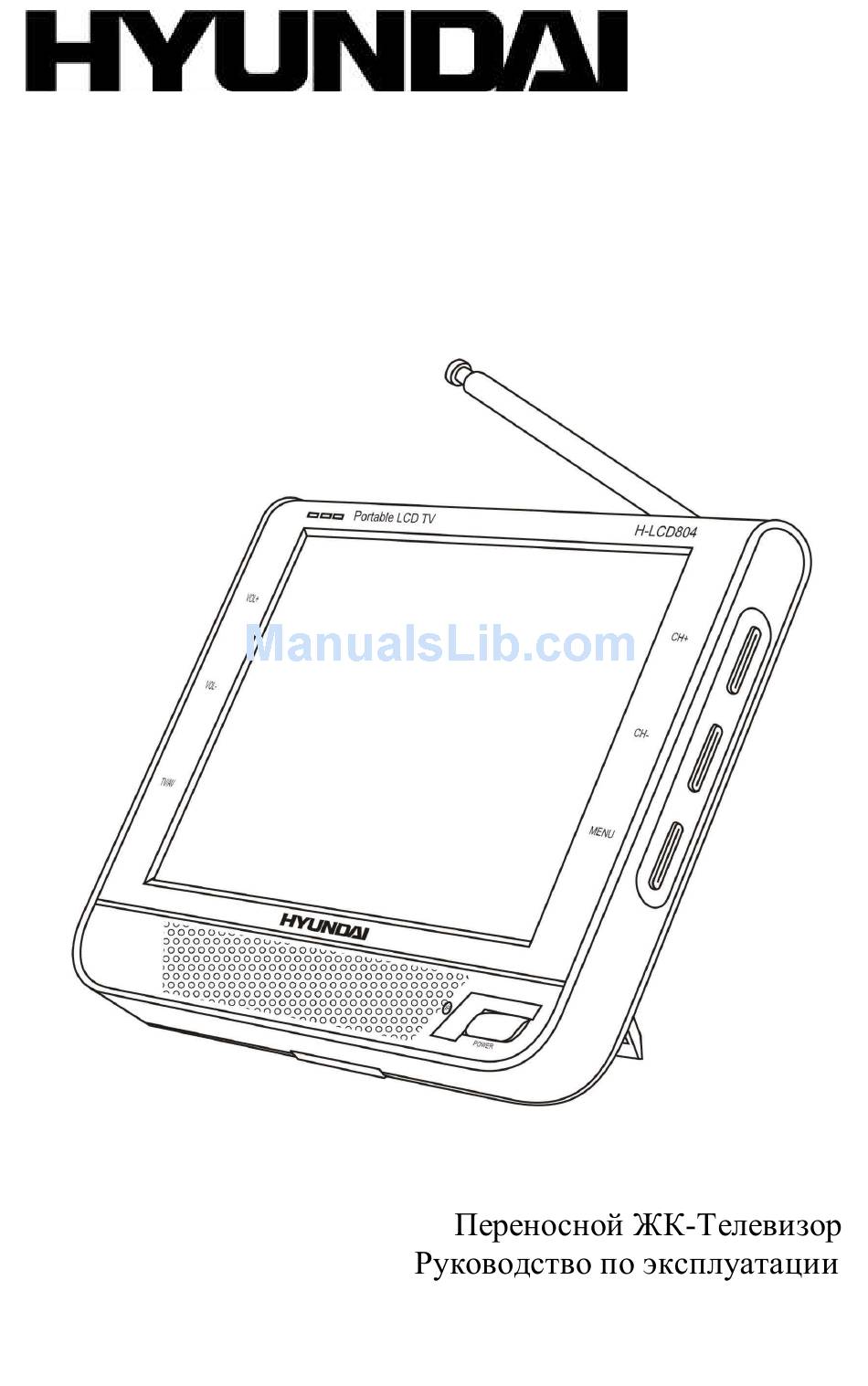

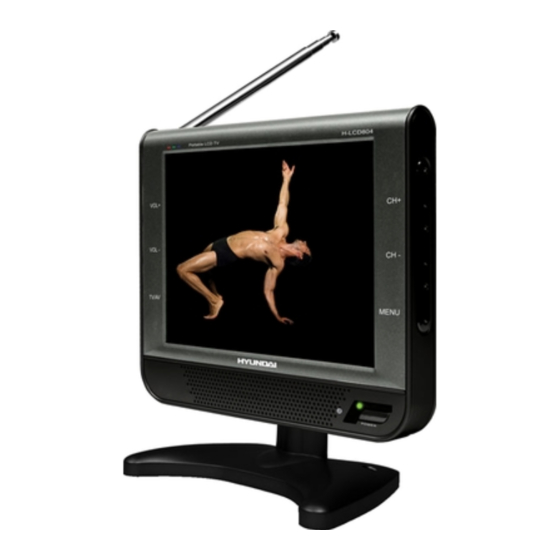

  • Page 1 H-LCD804 Portable LCD Color TV Instruction manual...

  • Page 2: Table Of Contents

    Dear consumer! Thank you for purchasing the TFT-LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein Contents Contents..................2 Caution ..................3 Accessories..................3...

  • Page 3: Caution

    Caution Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it.

  • Page 4: Aspect

    Double-side adhesive tape for base support Car adaptor Remote control Antenna cable (75Ohm) Telescopic antenna Aspect Main Part FRONT 1.Telescopic antenna 2.TFT-LCD screen 3.Volume+ selection + 4.Volume - selection - 5. TV/AV Shift 6.Channel+ option 7.Channel - option 8.Menu 9. Power indicator 10.Standby Power on/off 11.Remote receiving window 12.Base support...

  • Page 5: Remote Control

    BACK 13.Antenna IN jack 14.Earphone jack 15.AV1 IN jack 16.AV2 IN jack 17.12V DC IN jack 18.Loudspeaker Remote control 1. Channel select 2. Volume control 3. Mute 4. Picture mode 5. Channel key 6. Channel shift 7. Horizontal 8. Vertical 9.
  • Page 6 (Channel selection) Press CH , the number of TV channel increases. Press CH , the number of TV channel decreases. VOL - / + (Volume adjust) Press VOL - , the volume of TV set decreases. Press VOL + , the volume of TV set increases. MODE (Mode): By pressing this button, users can realize the five picture mode of Standard, Soft, Vivid, Light and Personal.

  • Page 7: Power Selection

    Power Selection 220V AC adapter AC adapter (refer to product tag attached to the AC adapter) supplies power to the television from 220V alternating current. Automobile storage battery with 12V DC Use automobile adapter (suitable for vehicles with negative grounding) to supply power to the television from the automobile's storage battery.
  • Page 8 Connection Method of AV Input 1.Insert the external video cord into the yellow port of the AV exchange head, the left sound track into the white port and the right sound track into the red port. Then plug the AV exchange head in AV1/IN jack.

  • Page 9: Menu Operation

    Menu operation Connect the power and turn on the power switch. Extend the antenna. Use the CH +/- buttons to find the necessary channel. Use the VOL +/- button to regulate the volume level. Press the MENU button on the unit or remote control to select among different Menu pages, i.
  • Page 10 Calendar: Press CH +/- to select Calendar and press VOL +/- to display a calendar. Press CH +/- to change year and press VOL +/- to change month. Press other buttons to exit Calendar or it will always show on the screen. Game: Press CH +/-, VOL +/- to navigate in the game.
  • Page 11 Note: The time that has been set will return back to the default time (00:00) if you unplug the unit from its power socket. Attention: press CH- to find th original condition of this item, then press VOL +/- to make it to zero, press VOL + to add one minute, the max can be 59 minutes, then press the button once more, it comes back to zero.

  • Page 12: In Order To Receive Clearer Picture

    Position: Please choose the number of channel you want to set. Remember: Turn on to remember the set channel. Band: You may choose the band where to search the channel. You can choose V-L, V-H, UHF. Swap: Press CH +/- to choose the program swap item. The function allows you to swap the current channel number to another one.

  • Page 13: Before You Request Repair Service

    Before you request repair service The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and sound Battery pack is exhausted or not making contact, AC adapter or automobile adapter is not properly connected.

  • Page 14: Specification

    Specification Product name: 8" portable LCD color television Receivable channels: 48.25 MHz - 863.25 MHz Resolution: 1440(H) x 468(V) Brightness: 300 cd /m² Contrast: 150:1 Audio input: 0.3W Response Speed (ms): R: 10 / F: 20 View Angle: U: 40 / D: 60, R / L : 60 Connectors: external antenna input jack, stereo earphone jack, audio/video input jack, external power input jack.
  • Page 15 ................15 ............16 .................16 ..................17 ...............18 ............20 ..............20 ................22 ......26 ........27 .............28...
  • Page 16 40° . 20° 60° .
  • Page 17 2.TFT-LCD TV/AV...
  • Page 18 AV1 IN AV2 IN 12V DC IN AV/TV Power CH+, CH-. ((0-9) - / - - ): «- / - -»,...
  • Page 19 VOL - / + ( VOL - VOL + MODE ( POWER ( MENU ( MUTE ( VOL+/ VOL- CALL (Call): TIMER ( LANG ( CALE ( / CH , VOL+/ VOL- AV ( TV / AV): TV / AV. AUTO (...
  • Page 20 220 AC DC12V.
  • Page 21 AV1/IN AV2/IN Power CH-/CH+ TV/ AV (ON/OFF)
  • Page 22 POWER CH +/- MENU « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/- CH +/-, VOL +/- CH +/-, VOL +/- CH +/-, VOL +/- NTSC « » MENU, « ». CH +/-, VOL +/-,...
  • Page 23 CH +/-, VOL +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, CH+, « » MENU, « ». CH +/-, VOL +/-, VOL +/-, «00:00», VOL +, VOL -, CH +/-, VOL +/-, «00:00». VOL +, VOL -, VOL +/-, «00:00», VOL +,...
  • Page 24 VOL -, (00:00), VOL +/-, VOL +, VOL -, VOL +/-, VOL +, VOL -, CH +/-, VOL +/-, « » MENU, « ». CH +/-, VOL +/-, CH +/-, VOL +/-, : AUTO, PAL, N3.58, N4.43, SECAM.
  • Page 25 CH +/-, VOL +/-, (5.5 m, 6.0 m, 6.5 m). « ». [V+] [V-], [V+] [V-], « » MENU, « ». CH +/-, VOL +/-, : V-L, V-H, UHF. +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, CH +/-, VOL +/-, CH +/-, VOL +/-,...
  • Page 26 VOL +/- MENU, CH +/-, NTSC. VOL +/-. CATV.
  • Page 27 TV/AV? « »...
  • Page 28 : 8" : 48.25 - 863.25 : 1440 ( ) x 468 ( ) : 300 / ² : 150:1 ( ): R: 10 / F:20 : U: 40 / D:60, R / L : 60 (12 ) : 215 x 177 x 37...
