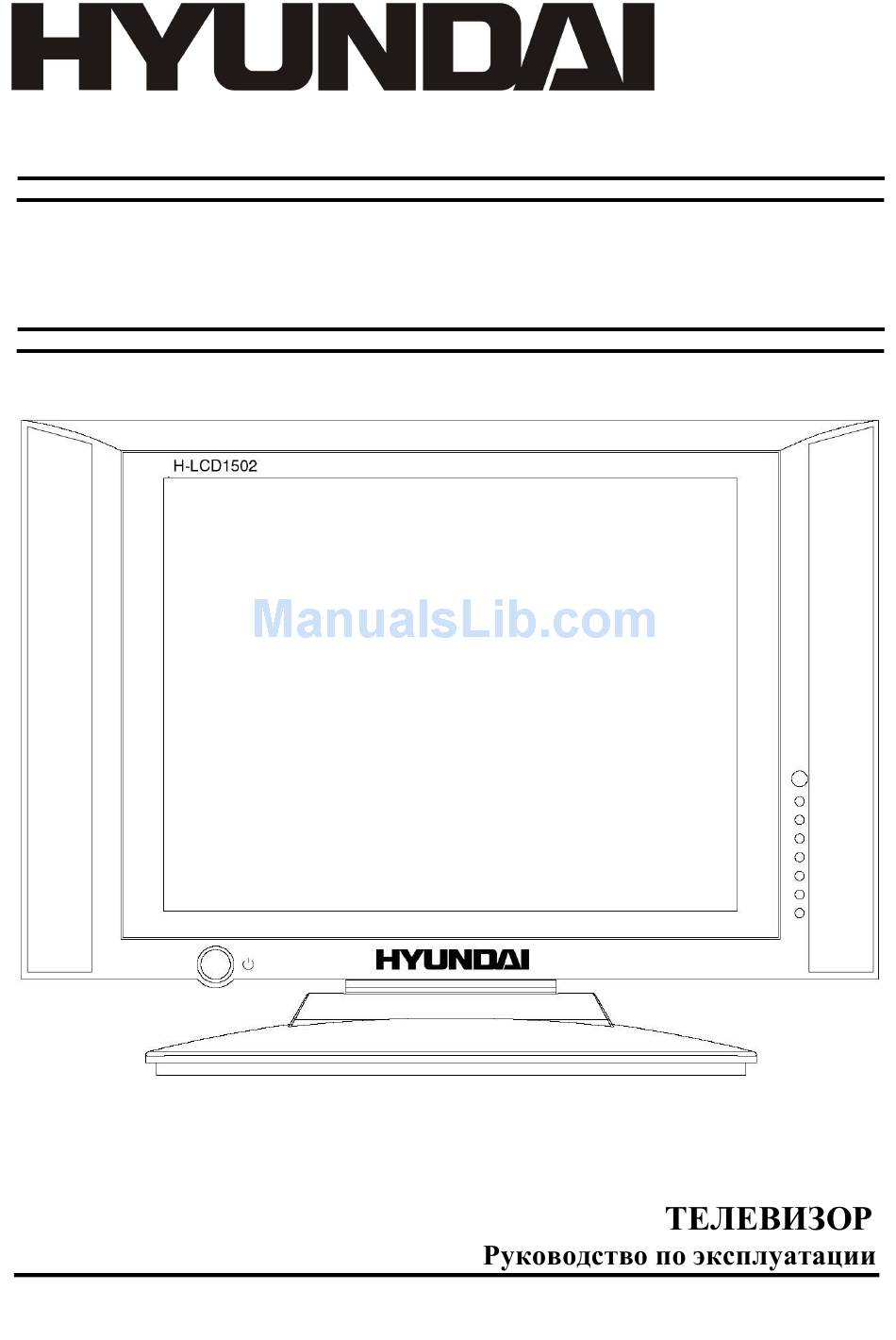

  • Page 1 H-LCD1502 LCD TV Instruction manual...

  • Page 2: Table Of Contents

    Table of contents Table of contents..........................2 Important safety precautions ......................3 General Introduction ........................5 Accessories ............................. 5 Installation ............................6 Controls ............................7 Front panel........................... 7 Back panel ........................... 8 Remote controller (RC)........................ 8 General operations .......................... 9 Turning ON/OFF .........................

  • Page 3: Important Safety Precautions

    Important safety precautions Warning Please unplug the power cord from the AC outlet and contact our service personnel to repair under the following conditions: Any obvious abnormality appears in the product, such as smoky, peculiar smell or strange sound. When a liquid has been spilled or other objects have fallen into the product. No picture or sound.
  • Page 4 mix old and new batteries, and do not place the batteries to burn or disassemble them. If the remote control is unused for an extend period of time, remove batteries from the remote control. Cords Place the signal cord back of the product. Cleaning Unplug the power cord from the AC outlet before cleaning the product.

  • Page 5: General Introduction

    General Introduction Size of the screen 15”/38 cm Aspect ratio 4:3 Screen resolution: 1024x768 Brightness: 350 cd/m2 Contrast: 450:1 Wide viewing angle 140º/140º Response time: 16 ms Color systems: PAL, SECAM, NTSC Digital comb filter NICAM Stereo, 2x2.5W Convenient OSD menu in Russian and English languages Connections: RF antenna, S-Video, Composite, headphones out, PC audio in, D-Sub (VGA) Wide range power supply: 110-240V, 50/60Hz Accessories...

  • Page 6: Installation

    Installation Antenna connection 1. Connect the plug of the antenna cable or CATV cable to the cable (not provided with this unit), then connect to the antenna input of this unit for best reception. 2. If the antenna cable in your home is other than the above two, or you have problems in installing the antenna, please contact your dealer.

  • Page 7: Controls

    Controls Front panel 1. Speakers 2. POWER button 3. Power indicator/Remote sensor 4. TV/AV button 5. MUTE button 6. MENU button 7. PROGRAM UP button 8. PROGRAM DOWN button 9. VOLUME UP button 10. VOLUME DOWN button...

  • Page 8: Back Panel

    Back panel 1. 12V DC power: plug the output of DC 12V adapter. 2. PC: Connect a PC via a VGA cable. 3. S-VIDEO input: Connect S-VIDEO, use same AUDIO input as AV input. 4. AV: connect AUDIO (R/L) and VIDEO input signal from signal source such as DVD. 5.

  • Page 9: General Operations

    General operations Turning ON/OFF 1. Plug the end of the power cord into an appropriate wall outlet and connect the antenna cable or CATV cable. 2. Turn on the TV. Switch on the POWER button on the front panel of TV to connect AC power. When the power of the TV is connected, the power indicator lights up in red, the TV is in standby mode, press the POWER button on the RC or front panel to switch the set to normal operation mode.
  • Page 10 Press the FAV. button on the RC repeatedly, it will select FAV. channel in cycle. Q.VIEW Press Q.VIEW button on the RC will switch to last program or source you just watch.

  • Page 11: Osd Operations

    OSD operations Menu Operation 1. Press MENU button to display the main menu. 2. Press VOLUME UP/DOWN (VOL+/-) buttons to enter the needed menu. 3. Press PROGRAM DOWN (PROG-) button to highlight the desired menu/item. 4. Press VOLUME UP/DOWN (VOL+/-) buttons to adjust the setting. 5.

  • Page 12: Installation Menu

    INSTALLATION MENU Enter Installation menu. Following options are available for setting: Channel. To set the received TV channel number. You can also change the channel by pressing number buttons. Color System. To select color system. Sound System. To select sound system. If there is no sound or sound is week, you should change the sound system accordingly.

  • Page 13: Troubleshooting

    Troubleshooting Before calling a technician, please check the following items to see whether you can easily diagnose and fix the encountered symptoms on your own. Symptoms Possible Cause Correction The power cord is not plugged in. Plug the power cord in. No picture, no sound, Contrast, sharpness, color and volume Alter the value of contrast,...

  • Page 14: The Causes Of Interference

    The causes of interference Incorporated in your TV receiver are the most up-to-date devices to eliminate interference. Local radiation however, can create disturbances, which visibly affect your picture. Proper installations, a good aerial are your best safeguards against these disturbances. RF INTERFERENCE Moving ripples across the screen are caused by nearby transmitting or receiving short-wave radio equipment.

  • Page 15: Specifications

    Specifications Items H-LCD1502 Size (diagonal) 15.0 inch (38 cm) Brightness 400 (cd/m LCD panel Contrast 450:1 items Angle of View 140/140 High Speed Response 16 ms Recommended Resolution 1024 768 Color System PAL, NTSC, SECAM, PAL/NTSC Digital Comb Filter Sound System...
  • Page 16 )................22 ......................... 23 ..................23 ........................23 ......................25 ........................25 « »..................... 25 « »......................25 « » ........................26 « » ......................26 « » ......................26 « » ......................... 27 ................28 ........................29 ..................... 30 HYUNDAI!
  • Page 18 –20° +50° . LCD 15” -...
  • Page 19 : 15”/38 : 4:3 : 1024x768 : 350 ² : 450:1 : 140º/140º : 16 : PAL, SECAM, NTSC NICAM, 2 x 5 : RF , S-Video, , PC , D-Sub (VGA) : 110-240 B, 50/60...
  • Page 21 POWER TV/AV MUTE MENU PROGRAM UP PROGRAM DOWN VOLUME UP VOLUME DOWN...
  • Page 22 1. 12V DC: DC 12 . 2. PC: 3. S-VIDEO 4. AV ( DVD. 5. PC MUTE. POWER. Q.VIEW. AV/TV. DISPLAY. SLEEP. PROG+. VOL-. MENU. PROG-. VOL+. P.P. S.M. FAV. ZOOM.
  • Page 23 POWER POWER POWER POWER PROG+/- PROGRAM UP/DOWN VOL+/- VOLUME UP/DOWN P.P. SLEEP SLEEP, SLEEP, : 0 ( ), 5, 10, 15, 20, 25, 30, 45, 60, “POWER OFF” (« »). S.M. AV/TV AV/TV PROGRAM UP/DOWN VOLUME UP.
  • Page 24 ZOOM ( ZOOM ZOOM : 16:9 4:3. FAV. Q.VIEW Q.VIEW...
  • Page 25 MENU VOLUME UP/DOWN (VOL+/-), PROGRAM DOWN (PROG-) VOLUME UP/DOWN (VOL+/-) MENU MENU « » « ». « », » ( ), « », ( ), « », « », « », « » ( » ( NTSC. « »: « »...
  • Page 26 « » « ». : « », « » ( ), « » ( ), « » « » « » « » « » « » « ». ». ». ». ». MENU ». MENU. ». ». ». ». », PROG+/-.
  • Page 27 « » « » « ». : « » ( ), « » ( « » « » ), « » ( » (...
  • Page 28 AUTO » CH+/CH-...
  • Page 29 « » » « ».
  • Page 30 H-LCD1502 400 ( 450:1 140/140 1024 768 PAL, NTSC, SECAM, PAL/NTSC DK, I, BG, M 2x2,5 S-Video S-Video DC 100-240 ~ 50/60 ( ) x 355 ( ) x 156 : LCD...
