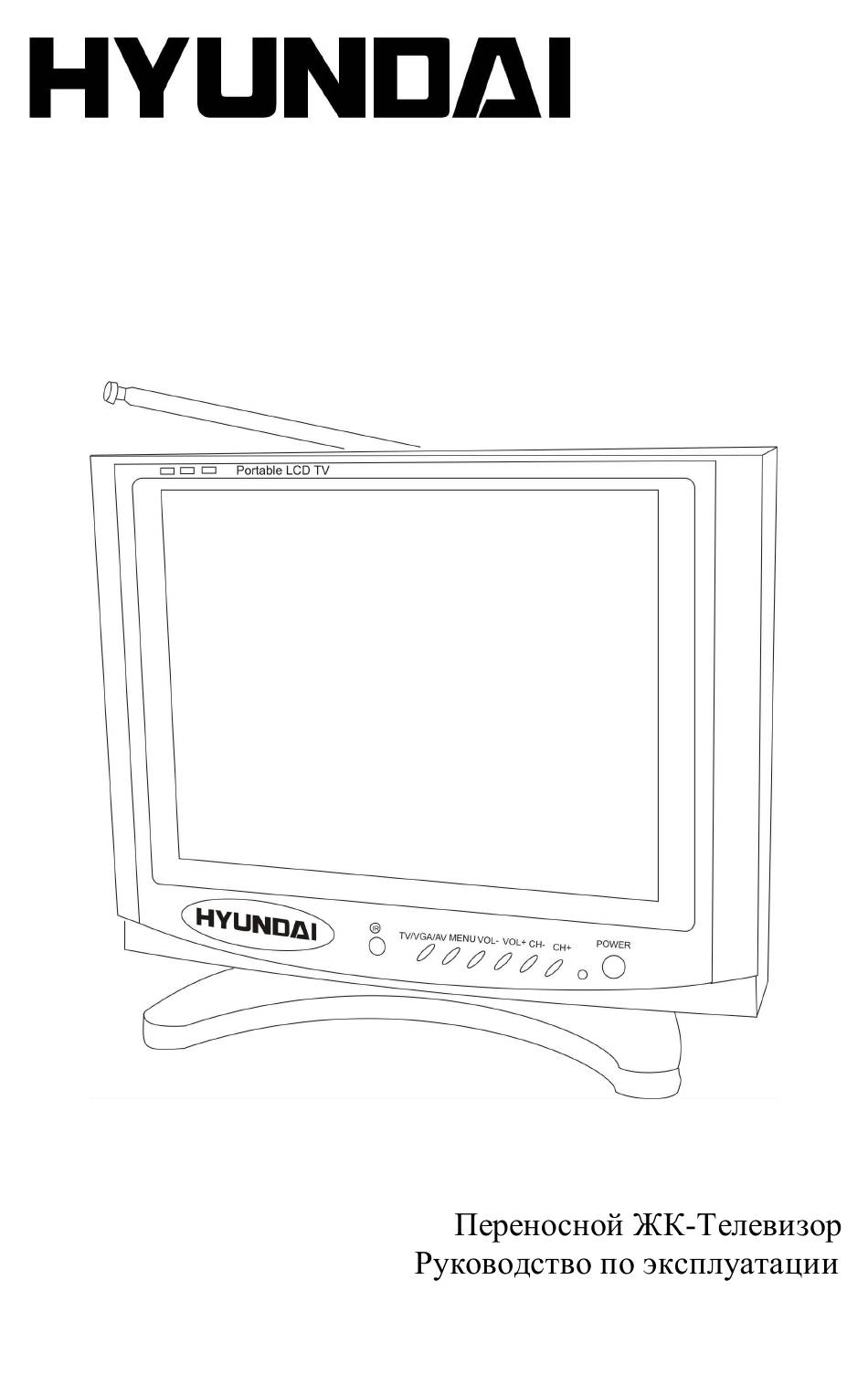

- Page 1 H-LCD801 Portable LCD Color TV Instruction manual...
-
Page 2: Table Of Contents
Dear consumer! Thank you for purchasing the TFT-LCD color television. To enjoy the features of this unit and to ensure safety and years of trouble-free operation, be sure to carefully read this manual and follow the instructions contained herein Contents Contents..................2 Caution ..................3 Accessories..................3... -
Page 3: Caution
Caution Never attempt your own maintenance. If something appears strange, please turn the TV off and consult your TV dealer. The TV is composed of many delicate electronic components that can be damaged or broken if you open the TV or attempt to modify it. -
Page 4: Aspect
Double-side adhesive tape for base support Car adaptor AAA type batteries Remote control Aspect Main Part FRONT... -
Page 5: Remote Control
BACK Remote control... - Page 6 Caution Please align the remote control with the infrared-receiving window on TV set in operation. Never oppress, drop, wet or disassembly the remote control. Never press any button continuously and swiftly. Operation interval is at least 2 seconds. Press Power to turn on the machine before pressing CH+, CH- for channel selection.
-
Page 7: Power Selection
Power Selection 220V AC adapter AC adapter (refer to product tag attached to the AC adapter) supplies power to the television from 220V alternating current. Automobile storage battery with 12V DC Use automobile adapter (suitable for vehicles with negative grounding) to supply power to the television from the automobile's storage battery. - Page 8 Connection Method of AV Input 1.Insert the external video cord into the yellow port of the AV exchange head, the left sound track into the white port and the right sound track into the red port. Then plug the AV exchange head in AV1/IN jack. 2.Insert the external video cord into the yellow port of the AV exchange head, the left sound track into the white port and the right sound track into the red port.
- Page 9 Menu operation Press MENU to display options as follows: Picture Press CH+ or CH- to select Picture item. Press VOL- or VOL+, Bright, Contrast, Color and Reset displays on the screen as illustrated below: Press CH+ or CH- to select the item Bright. Press VOL+ or VOL- to adjust the analog quantity of Bright.
- Page 10 · Press CH+ or CH- to select Clock item. Press VOL- or VOL+ can set off-time within 120 minutes. · Press CH+ or CH- to select Blue back item. Press VOL- or VOL+ can realize ON/OFF the Blue back under no signal. Preset ·...
- Page 11 · Press CH+ or CH- to select Auto search item Press VOL- or VOL+ to start Auto Search, and put into automatic memory and storage upon completion of Auto Search. And return to Program No. 0 upon completion. Notice 1.Auto Search Start from Program No. 0. 2.When receive signal under Manul Search, the indication frequency stop means the optimum position for signal storage.
- Page 12 Auto Press CH+/CH- to select Auto adjust, press VOL+/VOL- can adjust the analog quantity of bright, contrast, H.position, V.position, clock, phase etc. Screen will display AUTO ADJUST ..After seconds, auto adjust finish, the monitor has been adjusted to the best state. Reset Press CH+/CH- to select RESET item, press VOL+/VOL- can set bright, contrast, OSD V, OSD H, clock, color temperate etc of picture to factory default.
-
Page 13: Before You Request Repair Service
Before you request repair service The following occurrences do not indicate that the television is faulty. Before you request repair, follow the listed methods to check the device. Occurrences Possible reasons No picture and sound Battery pack is exhausted or not making contact, AC adapter or automobile adapter is not properly connected. -
Page 14: Specification
Specification Product name: 8" automobile portable LCD color television Receivable channels: 49.75MHz-863.25MHz 48.25MHz-855.25MHz System: PAL/SECAM (TV), PAL/NTSC (AV) Display component: color TFT-LCD Screen dimensions: 8 inches Pix: 640(RGB) x 480 Brightness: 300 cd /m² Contrast: 150:1 Tuning: DK, BG Dot matrix: 253.5 H x 253.5 V Audio input: 0.2W Speaker: 32mm x2... - Page 15 ................15 ............16 .................16 ..................17 ...............18 ............20 ..............20 ................22 ......26 ........27 .............28...
- Page 16 40° . 20° 60° .
- Page 19 Power CH+, CH-. ((0-9) - / - - ): «- / - -», VOL - / + ( VOL - VOL + MODE ( POWER ( MUTE ( VOL+/ VOL- CALL (Call): TIMER ( LANG ( TV/VGA/AV ( TV / VGA / AV): TV/VGA/ AV.
- Page 20 220 AC DC12V.
- Page 21 AV1/IN AV2/IN AV2/IN VGA ( Power CH-/CH+...
- Page 22 MENU, VOL - VOL+ Bright. VOL+ VOL- Contrast, Color Reset. VOL+ VOL-, · System, English, Input, Clock Blue back, ·...
- Page 23 VOL - / VOL + · VOL - / VOL + TV/VGA/ · VOL- or VOL+ · VOL- VOL+ · ·...
- Page 24 VOL- VOL+ ON ( · VOL- VOL+ · VOL+, : I, DK, BG L.
- Page 25 : 6.0M I, 6.5M DK (L), 5.5M PAL-I PAL-DK SECAM- PAL-BG SECAM- SECAM-L. MENU, CH+/CH- VOL+/VOL- CH+/CH- VOL+/VOL-...
- Page 26 CH+/CH- OSD clock, VOL+/VOL- (5-100 CH+/CH- VOL+/VOL- (9300K,6500k) CH+/CH- color temp, VOL+/VOL- : 9300 , 6500 . : 640 480, 60 CATV.
- Page 27 TV/AV? « »...
- Page 28 : 8" :DI: 49.75 -863.25 48.25 -855.25 : PAL/SECAM ( ), PAL/NTSC ( TFT-LCD : 640(RGB) x 480 : 300 / ² : 150:1 : DK, BG : 253.5 x 253.5 : 0.2 ( ): R: 30 / F:50 : U: 50 / D:60, R / L : 60 VGA.
