Summary of Contents for Hyundai H-LCD2202

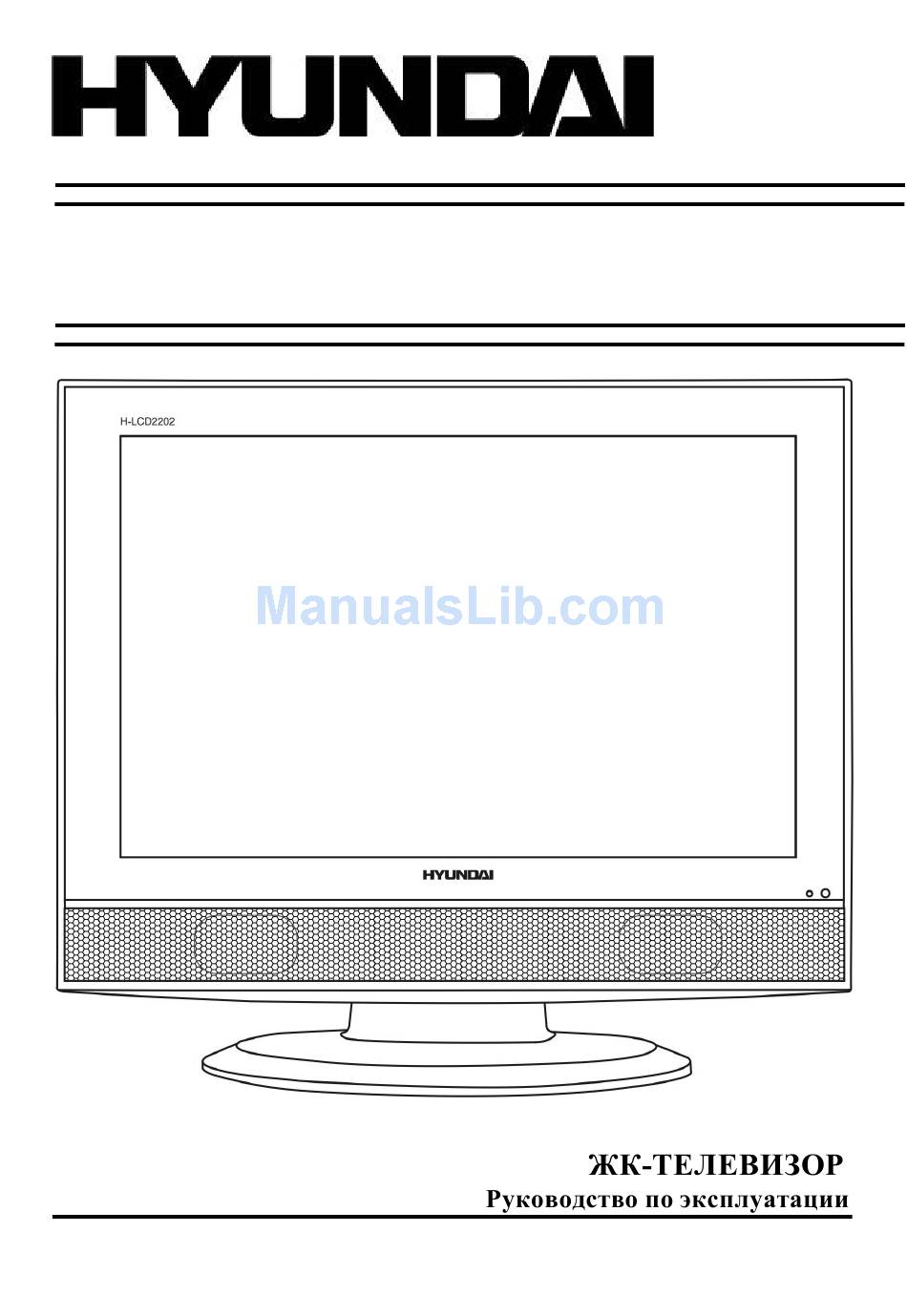

- Page 1 H-LCD2202 LCD TV Instruction manual...
-
Page 2: Table Of Contents
Table of contents Table of contents ............................2 Important safety precautions ........................3 General introduction ............................ 5 Accessories..............................5 Controls and connection..........................6 OSD operations ............................9 Troubleshooting............................11 The causes of interference...........................11 Specifications .............................12 Thank you very much for buying our product – the most natural Colour Television Receiver. To enjoy your set to the full from the very beginning, read this manual carefully and keep it for future reference. -
Page 3: Important Safety Precautions
Important safety precautions Warning Please unplug the power cord from the AC outlet and contact our service personnel to repair under the following conditions: Any obvious abnormality appears in the product, such as smoky, peculiar smell or strange sound. When a liquid has been spilled or other objects have fallen into the product. No picture or sound. - Page 4 Fasten the wheel of the product or shelf with wheels when installing this product. If it moves or is tipped over, it may be damaged. Do not place any fire source such as candlelight close to this product or place it on this product. If it is tipped over or fallen down, it may cause damage or fire.
-
Page 5: General Introduction
General introduction Size of the screen: 22"/56 cm Aspect ratio: 16:10 Screen resolution: 1680 x 1050 Brightness: 300 cd/m Contrast: 700:1 Wide viewing angle 170º/160º Response time: 5 ms Progressive scan Color systems: PAL, SECAM Digital comb filter NICAM/A2 Stereo Teletext Convenient OSD menu in Russian and English languages Connections: RF antenna, composite, S-Video, SCART, VGA (d-Sub), HDMI, PC audio input... -
Page 6: Controls And Connection
Controls and connection Front panel Right panel Top panel button description Button Description MENU Open the menu or switch among the menus. CH+/- In TV mode, decrease/increase channel number. Select functions in menu operation. VOL+/- Decrease/increase the sound volume. Adjust functions in menu operation. TV/AV To switch among the signal source. -
Page 7: Rear Panel
Rear panel Rear panel terminals and controls Items Connection description Connect the AC power cable with 100-240V AC power supply. Connect the AC input other end of the AC power cable with the AC power port on the TV. Connect one end of the HDMI cable with HDMI output port, connect the other HDMI end of the HDMI cable with the HDMI port on the TV, and tighten the bolts clockwise on the each end of HDMI cable. - Page 8 Remote control (RC) TV/AV button. Press to select the input source. Number buttons. Press to input figures. SYSTEM button. Press to adjust color and audio parameters. CALL button. Press to display channel information. MENU button. Press to display or hide the OSD menu. VOL+/VOL- buttons.
-
Page 9: Osd Operations
OSD operations For all the buttons mentioned below, you can use those on the front panel or on the RC. To see the OSD, press MENU button. The first press will show either: the VIDEO menu, if the set is switched to TV, SCART, AV, HDMI or S-VIDEO. the PC menu, if the set is switched to PC-RGB. -
Page 10: Audio Menu
AUDIO menu In this menu you can adjust following parameters: Volume: to adjust the volume of the sound. Balance: to adjust the left/right balance of the sound. Audio Preset: to select from Personal, Voice, Music or Theatre. If you select Personal, you can adjust the following settings: Treble and Bass: to adjust the tone of the sound. -
Page 11: Troubleshooting
Troubleshooting Before calling a technician, please check the following items to see whether you can easily diagnose and fix the encountered symptoms on your own. Symptoms Possible Cause Correction The power cord is not plugged in. No picture, no Plug the power cord in. Contrast, brightness, sharpness, color and sound, and no Alter the value of contrast, brightness,... -
Page 12: Specifications
Specifications Items H-LCD2202 Size (diagonal) 22” (56 cm) Brightness 300 (cd/m Contrast 700:1 LCD panel items Angle of view 170°/160° High speed response 5 ms Resolution 1680 x 1050 Aspect ratio 16:10 Color system PAL, SECAM Sound system DK, I, BG... - Page 13 ...............................13 ....................14 ..........................16 ...........................16 .....................17 ........................21 ...................23 ............................23 ........................24 HYUNDAI!
- Page 14 –20° +50° .
- Page 15 LCD-...
- Page 16 : 22"/56 : 16:10 : 1680 x 1050 : 300 ² : 700:1 : 170º/160º : PAL, SECAM NICAM/A2 : RF , S-Video, SCART, , VGA (D- Sub), HDMI, : 100-240 B, 50/60...
- Page 17 MENU CH+/- VOL-/+ TV/AV POWER...
- Page 18 100-240 (AC) HDMI HDMI HDMI SCART S-Video S-Video S-Video S-Video PAL, NTSC, SECAM. VIDEO/S-VIDEO). S-Video...
- Page 19 AV/TV. SYSTEM. CALL. MENU. VOL+/VOL-. TEXT/TV: MIX: SUBP/NICAM: HOLD: REVEAL: INDEX: SIZE: CANCEL: POWER. MUTE. SLEEP. RECALL. S-MODE. P-MODE. CH+/CH-. (AAA) (+/-).
- Page 21 MENU. TV, SCART, AV, HDMI S-VIDEO. PC-RGB. MENU CH+/CH-. VOL+/VOL-, MENU TV, SCART, AV S-VIDEO) NTSC). HDMI) VOL+ : 6500K, 9300K VOL+/VOL-, MENU. VOL+...
- Page 22 : BG, DK, I, L. – CH+/-; – VOL+, VOL+/VOL- « » CH+, « ». VOL+/VOL- « » CH+, « ». CH+, VOL+, « » « » ( MENU VOL+, – – : TV, SCART, PC-RGB, AV, HDMI S-VIDEO. VOL+,...
- Page 23 » CH+/CH- « » » ».
- Page 24 H-LCD2200 22” (56 300 ( ²) 700:1 170°/160° 1680 x 1050 16:10 PAL, SECAM DK, I, BG NICAM/A2 2 x 5 S-Video SCART HDMI VGA (d-Sub) Plug and Play ~100-240 ; 50/60 : LCD...
