Shop fox W1819 Owner's Manual

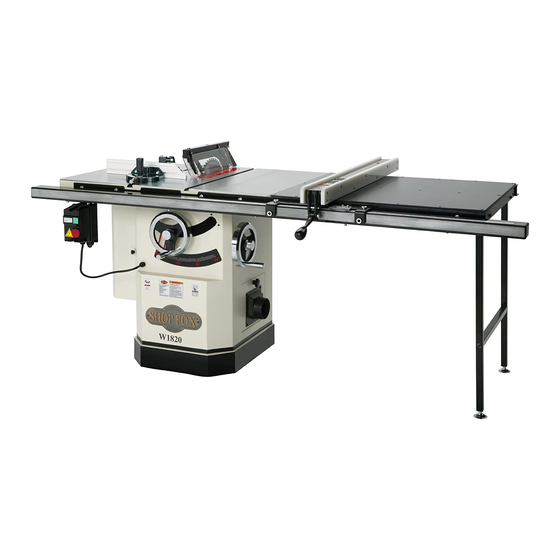

10" cabinet saw
Hide thumbs Also See for W1819:
Table of Contents

Advertisement

Quick Links

Download this manual
232857

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W1819 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Shop fox W1819

Summary of Contents for Shop fox W1819

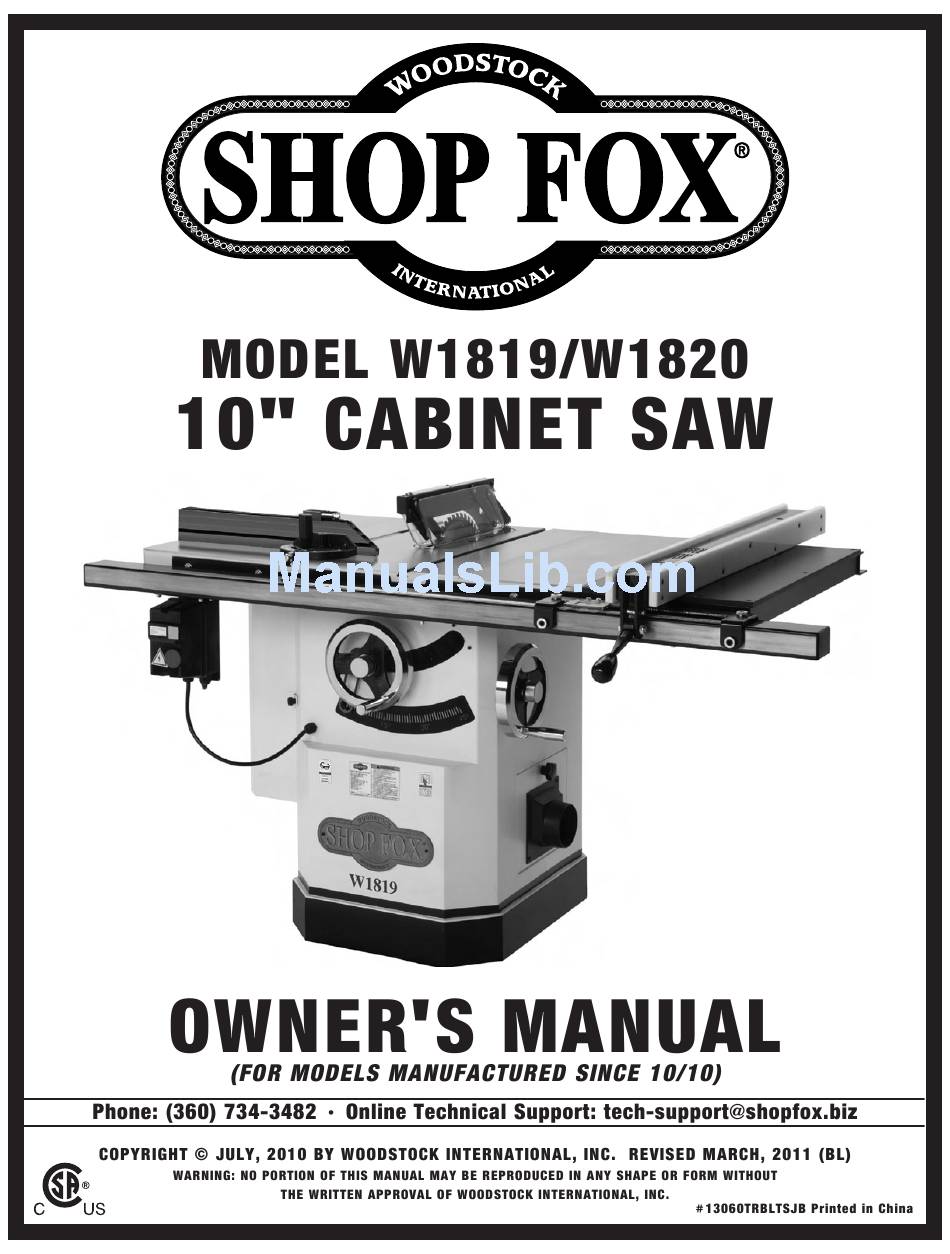

  • Page 1 232857...

  • Page 3: Table Of Contents

    Miter Gauge ........85 Blade Guard Assembly ......36 Fence ..........86 Riving Knife ........38 W1819 Extension Wing & Rails ....87 Workpiece Inspection ......39 W1820 Extension Wing & Rails ....88 Ripping ........... 40 Machine Labels ......... 89 Crosscutting ........
  • Page 4 This machine has been specially designed to provide many years of trouble-free service. Close attention to detail, ruggedly built parts and a rigid quality control program assure safe and reliable operation. Woodstock International, Inc. is committed to customer satisfaction. Our intent with this manual is to include the basic information for safety, setup, operation, maintenance, and service of this product.
  • Page 5 Miter Fence Blade Guard Right Left Fence with Flip Stop Extension Extension Table Extension Wing Wing Miter Gauge Front Rail Tube Scale On/Off Blade Tilt Switch Lock Blade Tilt Handwheel Blade Height Handwheel 4" Dust Port Table Blade Tilt Height Scale Lock Identification (Model W1820 shown).
  • Page 6 02'(/ : 6+23 )2;Š &$%,1(7 6$: : 5,9,1* .1,)( 0RWRUV 0DLQ 7\SH 7()& &DSDFLWRU 6WDUW ,QGXFWLRQ +RUVHSRZHU  +3 9ROWDJH 9 3KDVH 6LQJOH $PSV $ 6SHHG  530 &\FOH  +] 1XPEHU RI 6SHHGV  3RZHU 7UDQVIHU  7ULSOH 9%HOW 'ULYH %HDULQJV 6KLHOGHG DQG 3HUPDQHQWO\ 6HDOHG 0DLQ 6SHFLILFDWLRQV %ODGH ,QIRUPDWLRQ...
  • Page 7 )HQFH ,QIRUPDWLRQ )HQFH 7\SH &DPORFN 76KDSHG )HQFH ZLWK +'3( )DFH )HQFH 6L]H /HQJWK  LQ )HQFH 6L]H :LGWK  LQ )HQFH 6L]H +HLJKW  LQ )HQFH 5DLO 7\SH 6TXDUH 6WHHO 7XELQJ )HQFH 5DLO /HQJWK  LQ )HQFH 5DLO :LGWK  LQ )HQFH 5DLO +HLJKW  LQ 0LWHU *DXJH ,QIRUPDWLRQ 0LWHU *DXJH 6ORW 7\SH 76ORW...
  • Page 8 (OHFWULFDO 3RZHU 5HTXLUHPHQW 9 6LQJOH3KDVH  +] 0LQLPXP &LUFXLW 6L]H $ 6ZLWFK 0DJQHWLF ZLWK 7KHUPDO 2YHUORDG 3URWHFWLRQ 6ZLWFK 9ROWDJH 9 &RUG /HQJWK  IHHW &RUG *DXJH  JDXJH 3OXJ ,QFOXGHG <HV ,QFOXGHG 3OXJ 7\SH  2WKHU ,62 )DFWRU\  ,62  &RXQWU\ 2I 2ULJLQ  &KLQD :DUUDQW\   <HDU 6HULDO 1XPEHU /RFDWLRQ  ,' /DEHO RQ &DELQHW...
  • Page 9 02'(/ : 6+23 )2;Š &$%,1(7 6$: : 5,9,1* .1,)( /21* 5$,/6 0RWRUV 0DLQ 7\SH 7()& &DSDFLWRU 6WDUW ,QGXFWLRQ +RUVHSRZHU  +3 9ROWDJH 9 3KDVH 6LQJOH $PSV $ 6SHHG  530 &\FOH  +] 1XPEHU RI 6SHHGV  3RZHU 7UDQVIHU  7ULSOH 9%HOW 'ULYH %HDULQJV 6KLHOGHG DQG 3HUPDQHQWO\ 6HDOHG 0DLQ 6SHFLILFDWLRQV %ODGH ,QIRUPDWLRQ...
  • Page 10 )HQFH ,QIRUPDWLRQ )HQFH 7\SH &DPORFN 76KDSHG )HQFH ZLWK +'3( )DFH )HQFH 6L]H /HQJWK  LQ )HQFH 6L]H :LGWK  LQ )HQFH 6L]H +HLJKW  LQ )HQFH 5DLO 7\SH 6TXDUH 6WHHO 7XELQJ )HQFH 5DLO /HQJWK  LQ )HQFH 5DLO :LGWK  LQ )HQFH 5DLO +HLJKW  LQ 0LWHU *DXJH ,QIRUPDWLRQ 0LWHU *DXJH 6ORW 7\SH 76ORW...
  • Page 11 (OHFWULFDO 3RZHU 5HTXLUHPHQW 9 6LQJOH3KDVH  +] 0LQLPXP &LUFXLW 6L]H $ 6ZLWFK 0DJQHWLF ZLWK 7KHUPDO 2YHUORDG 3URWHFWLRQ 6ZLWFK 9ROWDJH 9 &RUG /HQJWK  IW &RUG *DXJH  JDXJH 3OXJ ,QFOXGHG <HV ,QFOXGHG 3OXJ 7\SH  2WKHU ,62 )DFWRU\  ,62  &RXQWU\ 2I 2ULJLQ  &KLQD :DUUDQW\   <HDU 6HULDO 1XPEHU /RFDWLRQ  ,' /DEHO RQ &DELQHW...
  • Page 12 For Your Own Safety, Read Manual Before Operating Machine Read and understand this Always wear hearing owner’s manual BEFORE using machine. protection when operating or observing Untrained users can be seriously hurt. loud machinery. Extended exposure to this noise without hearing protection can cause Always wear ANSI-approved permanent hearing loss.
  • Page 13 Untrained operators Unexpected movement during can be seriously hurt by machinery. Only operations greatly increases the risk of injury allow trained or properly supervised people and loss of control. Verify machines are to use machine. When machine is not being stable/secure and mobile bases (if used) are used, disconnect power, remove switch keys, locked before starting.
  • Page 14 Never purposely touch a saw blade during operation. Always keep hands/fingers out of the blade path; place them where they cannot slip into the blade accidentally. Never reach around, behind, or over the blade. Touching a spinning saw blade will cause serious laceration or amputation injuries.
  • Page 15 Below are ways to avoid the most common causes of kickback: Even if you know how to prevent kickback, • Only cut workpieces with at least one it may still happen. Here are some ways to smooth and straight edge. DO NOT cut protect yourself if kickback DOES occur: warped, cupped or twisted wood.
  • Page 16 The following is a list of common definitions, terms and phrases used throughout this manual as they relate to this table saw and woodworking in general. Become familiar with these terms for assembling, adjusting or operating this machine. A metal shaft extending from the drive A cut in which the blade does mechanism that is the mounting location for not cut through the top of the workpiece.
  • Page 17 This machine must be connected to the correct size and type of power supply circuit, or fire or electrical damage may occur. Read through this section to determine if an adequate power supply circuit is available. If a correct circuit is not available, a qualified electrician MUST install one before you can connect the machine to power.

  • Page 18: Grounding Requirements

    This machine MUST be grounded. In the event of certain types of malfunctions or breakdowns, grounding provides a path of least resistance for electric current to travel—in order to reduce the risk of electric shock. Improper connection of the equipment-grounding wire will increase the risk of electric shock.
  • Page 19 This machine has been carefully packaged for safe transportation. If you notice the machine has been damaged during shipping, please contact your authorized Shop Fox dealer immediately. The following items are needed, but not included, to setup your machine. •...

  • Page 20: Inventory

    The following is a description of the main components shipped each W1819/W1820 model. Lay the components out to inventory them. Main Table Saw Unit ........1 Extension Wings ..........2 Main table saw unit. Dust Port ............1 Motor Door ..........1 Blade Guard Assembly ........1 Riving Knife ..........1...
  • Page 21 Cap Screws M6-1 x 16 (Front Rail/Tube) ....3 Inventory needed to install the • Flat Washers 6mm (Front Rail/Tube) ....3 fence on the Model W1819. • Lock Washers (Front Rail/Tube) ......3 • Hex Bolts M8-1.25 x 40 (Front & Rear Rails) ..6 •...
  • Page 22 Front Rail Rectangular Tube 82" ......1 Front Rail 70"..........1 Rear Rail 70" ..........1 Fence Assembly ..........1 Fence Handle ..........1 Rear Rail Foot ..........1 Hex Wrench 6mm ..........1 Front Rail Tape Scale ........1 Extension Table ..........1 Legs ............2 Inventory needed to install the •...
  • Page 23 The table and other unpainted parts of your This machine distributes a table saw are coated with a waxy grease that heavy load in a small footprint. Some residential floors may require additional protects them from corrosion during shipment. Clean this grease off with a solvent cleaner or bracing to support both machine and citrus-based degreaser.
  • Page 24 Assembly steps are the same for the Model W1819 and W1820 except where noted. Assembly consists of install- ing minor components, the extension wings, front and rear rails, extension table, and the legs (Model W1820 only). Hinge Socket Pull the magnetic switch out of the saw cabinet and...
  • Page 25 Insert the lip of the lower part of the dust port into the cabinet and tighten the thumb knob to secure (see Thumb Knob Remove the M8-1.25 x 30 cap screws, 8mm flat washers, and 8mm lock washers from the ends of the main table.
  • Page 26 50" front rail with the three M6-1 x 16 cap screws, 6mm flat washers, and 6mm lock washers, as shown Rail Tube Model W1819 tube attached to front rail. Install the 82" front rail tube onto the 70" front rail with five M6-1 x 16 cap screws, 6mm...
  • Page 27 6mm flat washers, four 6mm lock washers, and four M6-1 hex nuts, as shown in Using a long straightedge, adjust the extension table so it is flat (both flush and parallel) with the main . Model W1819 extension table table and extension wings ( ), then tighten installed.
  • Page 28 Adjust the extension table so it is flat (both flush and parallel) with the main table, using a long straightedge (similar to the method shown in ). This can be done by loosening the mounting Rear Foot bolts and adjusting the feet up/down as needed. Tighten the extension table mounting bolts, and tighten the hex nuts on the feet up against the legs Handle...
  • Page 29 Model W1819/W1820 (Mfg. Since 10/10) 4. Put on a pair of heavy leather gloves and use the included arbor wrenches to tighten the arbor nut (turn clockwise to tighten), as shown in Figure 27. Checking Fence Parallelism 1. Slide the fence along the rail. If it drags across the...
  • Page 30 On the Model W1819, if you move the pointer window to the right side of the fence, you may have to trim the last two inches of the scale so it will not protrude past the end of the fence tube.

  • Page 31: Dust Collection

    Adjust the set screws to make sure the table insert is flush with the table (use a straightedge as a guide), then tighten the button head screw to secure the table insert in place. . Place a straightedge against the blade and the spreader.

  • Page 32: Test Run

    Once the assembly is complete, test run the machine to make sure it runs properly for regular operations. The test run consists of verifying the following: 1) The motor powers up and runs correctly, and 2) the safety disabling mechanism on the switch works correctly. If, during the test run, you cannot easily locate the source of an unusual noise or vibration, stop using the machine immediately, then review...
  • Page 33 This machine will perform many types of operations that are beyond the scope of this manual. Many of these operations can be dangerous or deadly if performed incorrectly. The instructions in this section are written with the understanding that the operator has the necessary knowledge and skills to operate this machine.
  • Page 34 A non-through cut is a sawing operation where the blade does not protrude above the top face of the wood stock, as shown in Examples of non-through cuts include dadoes and rabbets. Non-through cuts have a higher risk of injury from kickback because the spreader and blade guard must be removed.
  • Page 35 (see • Best for cutting with the grain of the workpiece. • 20-40 teeth. • Flat-top ground tooth profile. • Large gullets for large chip removal. . Ripping blade. (see • Best for cutting across the grain of the workpiece. •...
  • Page 36 (see There are two types of dado blades: stacked and wobble. • : These dedicated dado cutting blade sets consist of up to 8 individual blades. Multiple cutters are "stacked" between two outside blades. The width of the dado is determined by the combination of cutters that are “stacked”...

  • Page 37: Blade Installation

    The saw blade is sharp. Use extra care or wear gloves when handling the blade or working near it. Front of Saw Review this section, even if your saw blade came pre- installed. Teeth Direction & Blade Rotation DISCONNECT THE SAW FROM POWER! Put on heavy leather gloves and raise the arbor all the way up.

  • Page 38: Blade Guard Assembly

    The term "blade guard" refers to the assembly that con- sists of the clear polycarbonate shield, the spreader, and the anti-kickback pawls on each side of the spreader ). Each of these components have important safety functions during the operation of the saw. The clear polycarbonate guard allows the operator to see the blade cut the workpiece during operation.
  • Page 39 The anti-kickback pawls allow the workpiece to travel in Arresting only one direction. If the workpiece moves backwards, Hooks such as during a kickback, the pawls will dig into the Pawl workpiece to slow or stop it. To work properly, the pawls must return to their bottom- most position after pivoting, as shown in Figure 47, and they must not be engaged in the arresting hooks.

  • Page 40: Riving Knife

    The riving knife works in the same manner as the spread- er on the blade guard assembly. It is a metal plate that prevents the newly cut workpiece from pinching the back- side of the blade and causing kickback. The key difference between the spreader and the riving knife is that the riving knife mounts below the blade's highest point of rotation, as shown in The height difference between the riving knife and the...
  • Page 41 Some workpieces are not safe to cut or may Large/Loose Knots: Loose knots can require modification before they can be made become dislodged during the cutting safe to cut. operation. Large knots can cause kickback and machine damage. Choose workpieces that do not have large/loose knots or plan ahead to avoid cutting through them.

  • Page 42: Ripping

    "Ripping" means cutting with the grain of a natural wood workpiece. In other man-made materials such as MDF or plywood, ripping simply means cutting lengthwise. Review and take the necessary precautions to prevent kickback. If using natural wood, joint one long edge of the workpiece on a jointer.

  • Page 43: Crosscutting

    "Crosscutting" means cutting across the grain of a natural wood workpiece. In other man-made materials, such as MDF or plywood, crosscuttting means cutting across the width of the workpiece. DISCONNECT THE SAW FROM POWER! Ensure that the blade guard/spreader is installed. Move the rip fence aside and position the miter gauge, adjusted to 90°, in a miter slot.

  • Page 44: Miter Fence

    A miter is an angled crosscut. Miters are usually cut in the same manner as crosscuts, using the miter gauge and a predetermined mark on the workpiece. DISCONNECT THE SAW FROM POWER! Ensure that the blade guard/spreader is installed. Determine the angle of your cut. If the angle needs to be very precise, use a protractor to set the miter gauge to the blade.

  • Page 45: Flip Stop

    The flip stop can be adjusted anywhere along the slot in the top of the miter fence (see ), and locked in place the same distance away from the blade as your desired width of cut. In the down position, the flip stop can be used to make multiple cuts of the same width.
  • Page 46 Commonly used in furniture joinery, a dado is a straight channel cut in the face of the workpiece. Dadoes can be cut using either a dedicated dado blade or a standard saw blade. Figure 57 shows a cutaway view of a dado cut being made with a dado blade.
  • Page 47 Dado Blade Cut 1 Because dado blades are so much wider than standard blades, they place a much greater amount of force against Fence Workpiece the workpiece when cutting. To avoid injury, dado cuts require a much slower feed rate than normal cuts, and they are best done with multiple Cut 2 light cuts that get progressively deeper until the desired...
  • Page 48 A ripping blade is typically the best blade to use for cutting dadoes when using a standard blade because it removes sawdust very efficiently. See for blade details. DISCONNECT THE SAW FROM POWER! Ensure that the riving knife and standard table insert are installed and properly adjusted.

  • Page 49: Rabbet Cutting

    Commonly used in furniture joinery, a rabbet is an L-shaped groove cut in the edge of the workpiece. Rabbets can be cut with either a dado blade or a standard saw blade. Rabbet cutting on the edge of the workpiece requires a sacrificial fence attachment as shown in .
  • Page 50 A ripping blade is typically the best blade to use for cutting rabbets when using a standard blade because it removes sawdust very efficiently (see Page 33 for blade details about ripping blades). Also, a sacrificial fence is not required when cutting rabbets with a standard blade. DISCONNECT THE SAW FROM POWER! Ensure that the riving knife and standard table insert are installed.

  • Page 51: Resawing

    Resawing is the process of cutting a thick piece of stock into one or more thinner pieces. Although resawing can be done with a table saw, we strongly recommend that you use a bandsaw instead. A bandsaw is the ideal machine for resawing, and resawing with one is fairly easy and safe.
  • Page 52 The resaw barrier acts in tandem with the rip fence when resawing to provide tall support for the workpiece to minimize the probability of it binding against the blade and causing kickback. Table Saw ............1 Jointer and Planer ......Recommended Clamps ..........2 Minimum Drill and Drill Bits ..........1 Wood*...
  • Page 53 Cut the auxiliary fence board to size. If you are using hardwood, cut the board oversize, then joint and plane the board to the correct size to make sure the board is square and flat. Unthread the fence face mounting hardware and remove the fence face from the fence assembly.
  • Page 54 Attach the auxiliary fence to the standard fence and (Front View) set it to the desired width. Place the workpiece against the auxiliary fence and slide the resaw barrier against the workpiece, as shown in 68. Now clamp the resaw barrier to the top of the table saw at both ends.

  • Page 55: Table Saw Accessories

    Durable handle is designed for maximum control. Measure 13 " overall. Shop Fox is the perfect companion for the Model W1819/W1820. It packs a 1 HP, 110V/220V, single-phase motor and 800 CFM air suction capacity. -53-...
  • Page 56 will make light work out of those big jobs with greater accuracy and safety. The features a ⁄ W1765 110V, 1.8 Amp motor. The features a ⁄ HP, 220V, 4 Amp motor. Both models feature forward/reverse, XYZ adjustment, multiple feed speeds, and synthetic rubber wheels. W1766 is the best value in precision measuring instruments.

  • Page 57: Push Sticks

    Easily made from scrap stock, featherboards ( provide an added degree of protection against kickback, 10" (Minimum) especially when used together with push sticks. They 30° also maintain pressure on the workpiece to keep it Kerf " against the fence or table while cutting, which makes "- "...
  • Page 58 Make a series of end cuts with the grain, approximately ⁄ "– ⁄ " apart and 2"–3" long, as shown (A). Alternatively, start cuts at 2"-3" deep, then make them progressively deeper, as shown in (B). Cuts made across the grain will result in weak fingers that easily break when flexed.
  • Page 59 Fence Featherboard Lower the saw blade, then adjust the fence to the desired width and secure it. Clamp Place the workpiece against the fence, making sure it is 1" in front of the blade. Place a featherboard on the table away from the blade so all fingers point forward and contact the Clamp workpiece (see...
  • Page 60 Push Stick Prohibition Zone When used correctly, push sticks reduce the risk of injury Store Push by keeping hands away from the blade while cutting. In Stick Here Push Stick the event of an accident, a push stick can absorb damage for Easy Access that would have otherwise happened to hands or fingers.

  • Page 61: Push Blocks

    Push Stick Prohibition Zone When used correctly, a push block reduces the risk of injury by keeping hands away from the blade while Push Stick cutting. In the event of an accident, a push block often takes the damage that would have otherwise happened Supporting to hands or fingers.
  • Page 62 ⁄ " Hardwood Length of Fence ⁄ " Plywood There are designs for hundreds of specialty jigs that can be found in books, trade magazines, and the internet. 3" These types of jigs can greatly improve the safety and consistentcy of cuts. They are particularly useful during Length production runs when dozens or hundreds of the same of Fence...
  • Page 63 Auxilliary Fence Place the auxiliary fence on the table and clamp it to the fence at both ends, then adjust the distance between the auxiliary fence and the blade—this Blade determines how wide the workpiece will be ripped (see Workpiece Install the blade guard, then secure the spreader Cutting pawls in the upright position, as shown in Figure 48...

  • Page 64: Outfeed & Support Tables

    Outfeed Support Table Table One of the best accessories for improving the safety and ease of using a table saw is simply placing a large table (outfeed table) behind the saw to catch the workpiece (see ). Additionally, another table to the left of the saw (support table) can also help support large workpieces so they can be cut safely and accurately.

  • Page 65: Schedule

    OxiSolv Blade & Bit Cleaner. Check/tighten the belt tension ( Cleaning the Model W1819/W1820 is relatively easy. Vacuum excess wood chips and sawdust, and wipe off the remaining dust with a dry cloth. If any resin has built up, use a resin dissolving cleaner to remove it.
  • Page 66 An essential step for lubrication is cleaning the compo- nents before lubricating them. This step is critical because dust and chips build up on lubricated components, which makes them hard to move. Simply adding more grease to built-up grime will not result in smooth moving components.
  • Page 67 This section covers the most common service adjustments or procedures that may need to be made during the life of your machine. If you require additional machine service not included in this section, please contact Woodstock International Technical Support at (360) 734-3482 or send e-mail to: The table saw features stop bolts that stop the blade exactly at 45°...
  • Page 68 Tilt the blade away from 0° by about 5°, so there is room for the stop bolt to move. 90° Stop Bolt & Jam Open the motor access cover, loosen the jam nut shown in , adjust the stop bolt up or down according to how far off the blade was from 90°.
  • Page 69 Your table saw will give the best results if the miter slot and the rip fence are parallel to the blade. If either of these are not exactly parallel, your cuts and your fin- ished work will be lower in quality, but more importantly, the risk of kickback will be increased.
  • Page 70 The blade guard spreader and riving knife must be aligned with the blade when installed. If the spreader/riving knife is not aligned with the blade, then the workpiece will before forced sideways during the cut, which will increase Top Alignment the risk of kickback.
  • Page 71 The spreader/riving knife mounting position can be adjusted into alignment with the blade using the set screws on the spreader/riving knife mounting block. Hex Wrench 3mm ..........1 Hex Wrench 5mm ..........1 Center Screws To adjust the spreader/riving knife position, do these Screws Screw steps:...
  • Page 72 There are four main adjustments for the fence: (1) square, (2) height, (3) parallelism, and (4) clamping pressure. Keep in mind that these adjustments are interconnected and some trial-and-error may be needed to achieve satisfactory results. Hex Wrench 6mm ..........1 Square ............1 Felt-Tipped Marker ..........1 The fence face must be square to the table in order to...
  • Page 73 Clamping Pressure and Parallelism Set screws on the rear side of the fence bracket adjust the clamping pressure to hold your fence securely, and position the fence parallel to the blade. DISCONNECT THE SAW FROM POWER! Remove the fence. Equally adjust the set screws shown in on the rear side of the front bracket as necessary until the clamping pressure is strong enough that the fence will not move as pressure is applied against it.
  • Page 74 The fence scale indicator window, shown in can be calibrated with the fence scale if you notice that Screws your cuts do not accurately match what is shown on the fence scale. The indicator adjusts by loosening the two mounting screws and sliding it in the desired direction. Hex Wrench 2.5mm ..........1 Scrap Piece of Wood ..........1 Indicator...

  • Page 75: Body

    The miter gauge can be adjusted so it is perpendicular to the blade and so it is snug in the T-slot. 90° Square ............1 45° Square ............1 Hex Wrench 2.5mm ..........1 Hex Wrench 2mm ..........1 Hex Wrench 3mm ..........1 DISCONNECT THE SAW FROM POWER! Slide the miter gauge into the T-slot on the table.
  • Page 76 The three V-belts stretch slightly as the saw is used. Most of the belt stretching will happen during the first 16 hours of use, but it may continue in small increments through continued use. Wrenches 18mm ..........2 DISCONNECT THE SAW FROM POWER! Lower the blade completely, then open the motor V-Belts cabinet.
  • Page 77 These pages are current at the time of printing. However, in the spirit of improvement, we may make changes to the electrical systems of future machines. Study this diagram carefully. If you notice differences between your machine and these wiring diagrams, call Woodstock International Technical Support at (360) 734-3482.
  • Page 78 Magnetic switch. Run capacitor. Motor wiring. Read Page 75 Before Start capacitor. Wiring -76-...
  • Page 79 This section covers the most common problems and corrections with this type of machine. Symptom Possible Cause Possible Solution Machine does not start or a 1. Locking pin installed. 1. Remove locking pin from ON button. breaker trips. 2. Blown fuse. 2.
  • Page 80 Symptom Possible Cause Possible Solution Blade is not aligned with 1. Blade is warped. 1. Replace blade ( miter slot or fence. 2. Table top is not parallel to blade. 2. Make table parallel to blade ( 3. Fence is not parallel to blade. 3.
  • Page 81 146-1 146-2 155-1 155-3 155-4 155-2 155-5 -79-...
  • Page 82 PART # DESCRIPTION PART # DESCRIPTION X1819101 CABINET STAND XPLW06M LOCK WASHER 10MM XPCAP88M CAP SCREW M10-1.25 X 25 XPN02M HEX NUT M10-1.5 XPLW06M LOCK WASHER 10MM X1819146 DUST SHIELD XPW04M FLAT WASHER 10MM 146-1 X1819146-1 UPPER BRUSH X1819105 TILT SCALE 146-2 X1819146-2 LOWER BRUSH X1819106 STRAIN RELIEF...
  • Page 83 -81-...

  • Page 84: Trunnion

    PART # DESCRIPTION PART # DESCRIPTION X1819201 HANDWHEEL LOCK KNOB XPSS14M SET SCREW M8-1.25 X 12 X1819202 HANDWHEEL HANDLE XPSS19M SET SCREW M8-1.25 X 30 202-1 X1819202-1 HANDWHEEL XPN03M HEX NUT M8-1.25 XPSS53M SET SCREW M5-.8 X 12 X1819245 ELEVATION SHAFT X1819204 TILT POINTER PIVOT XPLN14M...
  • Page 85 PART # DESCRIPTION PART # DESCRIPTION XPSS04M SET SCREW M6-1 X 12 X1819320 PLATE GEAR X1819307 SPLITTER LOCK PLATE XPSS25M SET SCREW M6-1 X 20 XPLW03M LOCK WASHER 6MM XPN01M HEX NUT M6-1 XPB08M HEX BOLT M6-1 X 20 XPWF10M FENDER WASHER 10MM X1819310 ORIENTATION PLATE...

  • Page 86: Blade Guard

    PART # DESCRIPTION PART # DESCRIPTION 401AV2 X1819401AV2 BLADE GUARD ASSEMBLY V2.10.10 440V2 XPB122M HEX BOLT M4-.7 X 8 XPRP39M ROLL PIN 4 X 20 441V2 XPS62M PHLP HD SCR M6-1 X 30 X1819419 TORSION SPRING 442V2 X1819442V2 GUARD SPACER V2.10.10 422V2 X1819422V2 SUPPORT ARM V2.10.10...

  • Page 87: Miter Gauge

    501A PART # DESCRIPTION PART # DESCRIPTION 501A X1819501A MITER GAUGE ASSEMBLY XPW05M FLAT WASHER 4MM X1819501 MITER BAR XPLW02M LOCK WASHER 4MM X1819502 XPS07M PHLP HD SCR M4-.7 X 8 XPSS79M SET SCREW M4-.7 X 6 X1819518 MITER KNOB XPCAP41M CAP SCREW M4-.7 X 14 X1819519...
  • Page 88 PART # DESCRIPTION PART # DESCRIPTION X1819601 FENCE END CAP XPB47M HEX BOLT M6-1 X 40 X1819602 FENCE FACE XPLN03M LOCK NUT M6-1 XPCAP01M CAP SCREW M6-1 X 16 XPB116M HEX BOLT M10-1.5 X 45 X1819604 GLIDE PAD XPLN05M LOCK NUT M10-1.5 X1819605 FENCE SCALE WINDOW X1819616...
  • Page 89 PART # DESCRIPTION PART # DESCRIPTION X1819701 GUIDE TUBE END CAP XPW01M FLAT WASHER 8MM X1819702 GUIDE TUBE X1819711 REAR RAIL X1819703 FENCE SCALE XPB15M HEX BOLT M8-1.25 X 40 X1819704 FRONT RAIL XPN03M HEX NUT M8-1.25 XPCAP01M CAP SCREW M6-1 X 16 X1819714 EXTENSION WING XPLW03M...
  • Page 90 PART # DESCRIPTION PART # DESCRIPTION X1820701 GUIDE TUBE END CAP X1820720 EXTENSION WING XPCAP01M CAP SCREW M6-1 X 16 X1820721 LONGITUDINAL EXTENSION SUPPORT XPLW03M LOCK WASHER 6MM X1820722 LEG XPW03M FLAT WASHER 6MM X1820723 LEG CROSS BAR XPB26M HEX BOLT M8-1.25 X 30 XPBHS20M BUTTON HD CAP SCR M8-1.25 X 30 XPLW04M LOCK WASHER 8MM X1820725 FOOT...
  • Page 91 PART # DESCRIPTION PART # DESCRIPTION XLABEL-04 ELECTRICITY LABEL X1819807 MODEL NUMBER LABEL (W1819) X1819802 TABLE SAW PRECAUTIONS LABEL X1820807 MODEL NUMBER LABEL (W1820) X1819803 BLADE GUARD WARNING LABEL X1819808 MACHINE ID LABEL (W1819) X1819804 RIP FENCE LABEL X1820808 MACHINE ID LABEL (W1820)
  • Page 92 -90-...
