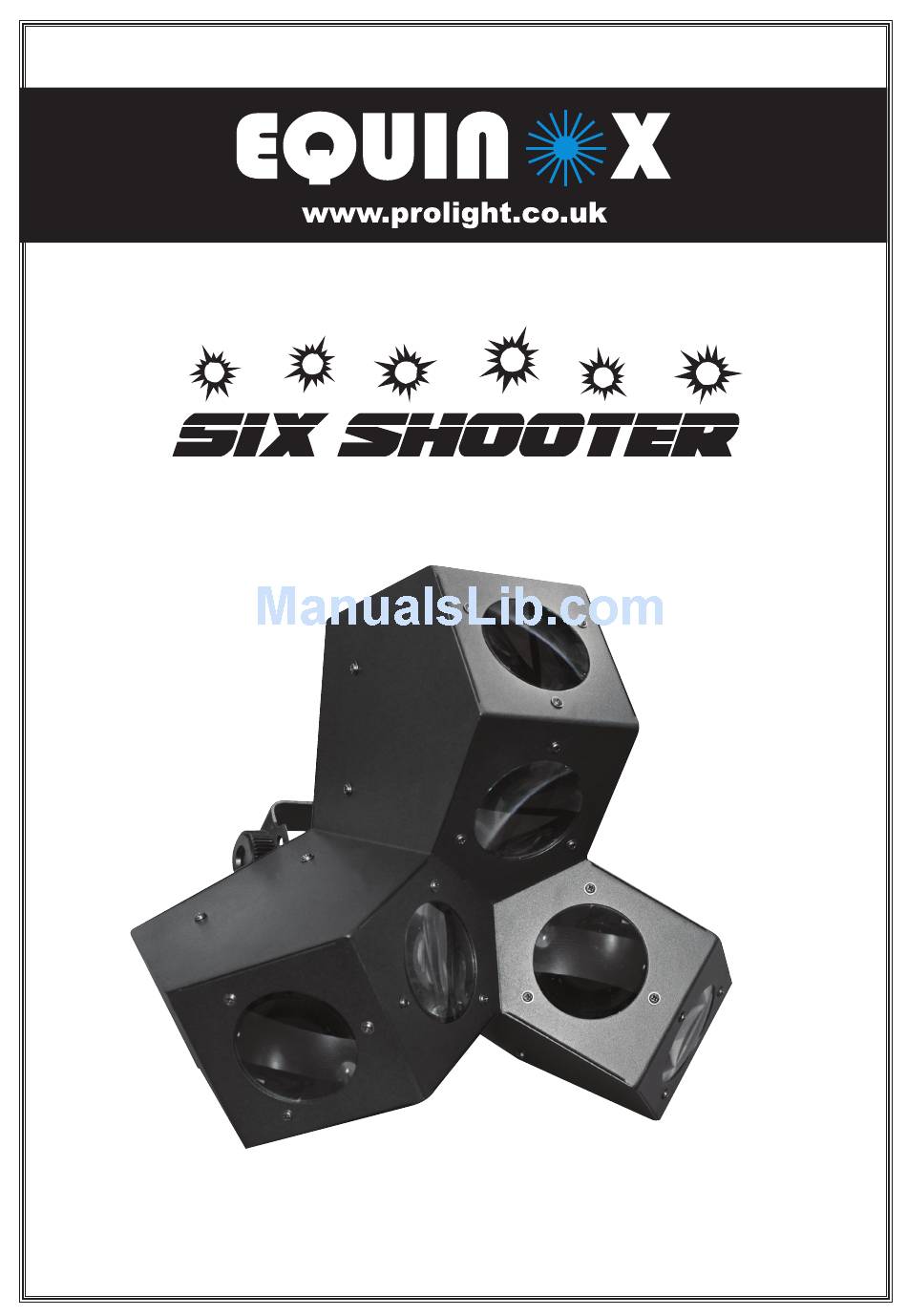

Page 1: User Manual
Order code: EQLED76 User manual... -
Page 2: Safety Instructions
Equinox Six Shooter Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
Equinox Six Shooter Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Technical Specifications
Equinox Six Shooter Technical specifications You should find inside the Equinox carton the following items: 1, Equinox Six Shooter 2, Power cable 3, Instruction manual Technical Specifications: • DMX channels: 1 or 3 selectable • Sound Active, auto, DMX and master/slave modes •... -
Page 5: Dmx Channel Mode
Equinox Six Shooter Operation Modes Operations modes: DMX mode: To access the DMX mode, press the “MODE” button on the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the d. - Page 6 Equinox Six Shooter Operation Modes Master/slave mode To access the master/slave mode, press the “MODE” button on the rear of the unit to show SLAv on the LED display and press the “ENTER” button to confirm the setting. The unit will now run in sequence with the master unit.
- Page 7 Equinox Six Shooter DMX Set up Version mode To select the version mode, press the “MODE” button to show on the LED display. Now press the “ENTER” button to see the current version of the built-in software. Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MODE”...
- Page 8 Equinox Six Shooter DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 9 Equinox Six Shooter Notes Notes...
- Page 10 Equinox Six Shooter Notes Notes...
- Page 12 English Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with seperate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please seperate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
