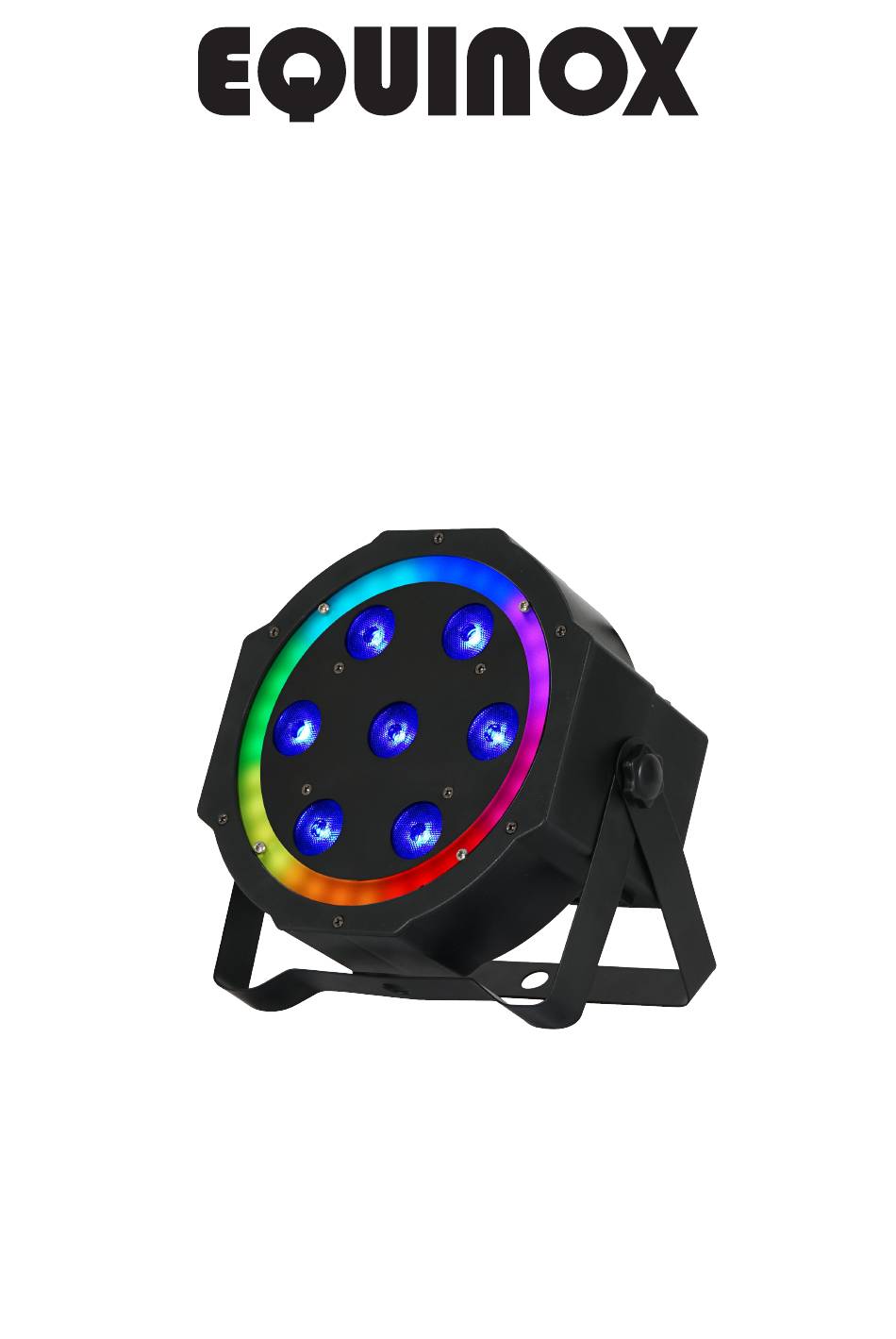

- Page 1 Eclipse User Manual Order code: EQLED118...
-
Page 2: Safety Advice
Please note: These fixtures are intended for stage lighting and entertainment applications only, and are not intended for extended periods of use, including but not limited to house-light, industrial or architectural applications and should only be operated with short duty cycles. www.prolight.co.uk Eclipse User Manual... - Page 3 • Supplied with IR remote 40° - Lux FULL ON 8816 2204 1632 3412 Specifications Eclipse 3812 Power consumption Power supply 100~240V, 50/60Hz Fuse F3A 250V 40° Dimensions 197 x 195 x 110mm Weight 0.9kg Order code EQLED118 195mm 110mm www.prolight.co.uk Eclipse User Manual...
- Page 4 06 - Fuse F3A 250V 1 x IR remote & 03 - Bracket 07 - IEC power input 09 - DMX output 1 x power cable 04 - LED display 08 - DMX input 10 - IEC power output www.prolight.co.uk Eclipse User Manual...
-
Page 5: Master/Slave Mode
I n g S t r o d I S p Display invert L e d Display on or turns off after 30 seconds o f f y E s d E F A Resets factory defaults www.prolight.co.uk Eclipse User Manual... -
Page 6: Dmx Mode
000-255 Master dimmer (0-100%) - beam only 000-255 Colour macros - beam only 000-255 Master dimmer (0-100%) - ring only 000-255 Colour macros - ring only 000-255 Macro programs - ring only 000-255 Macro program speed (slow-fast) www.prolight.co.uk Eclipse User Manual... - Page 7 180-204 Show 7 (White fade in/out) 205-229 Show 8 (Colour change in/out (3 colours RGB) 230-255 Show 9 (Colour change in/out (7 colours RGBCMYW) CH13 000-255 Speed (when sound OFF) / Sound sensitivity (when sound ON) www.prolight.co.uk Eclipse User Manual...
- Page 8 000-255 Red dimmer 7 (0-100%) CH32 000-255 Green dimmer 7 (0-100%) CH33 000-255 Blue dimmer 7 (0-100%) CH34 000-255 Red dimmer 8 (0-100%) CH35 000-255 Green dimmer 8 (0-100%) CH36 000-255 Blue dimmer 8 (0-100%) continued... www.prolight.co.uk Eclipse User Manual...
- Page 9 Press the “ENTER” button and use the “UP” and “DOWN” buttons to select the speed setting between Sp00 Sp99 Press the “ENTER” button to confirm. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Eclipse User Manual...
- Page 10 LED display. Press the “ENTER” button and use the “UP” and “DOWN” buttons to select either Press the “ENTER” button to confirm. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Eclipse User Manual...
-
Page 11: Ir Remote Functions
08 - Manual colour selection. Use the ‘R’, ‘G’, ‘B’ or ‘W’ buttons to select a manual colour. 09 - Pressing the ‘Dim –’ or ‘Dim +’ buttons will allow the R, G, B, W selection to be dimmed. www.prolight.co.uk Eclipse User Manual... -
Page 12: Dmx Setup
Further DMX cables can be purchased from all good sound and lighting suppliers or Prolight Concepts dealers. Please quote: 3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Eclipse User Manual... -
Page 13: Line Termination
5-pin XLR (male) 3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Eclipse User Manual... -
Page 14: Power Linking
Please note: Caution should be used when power linking other fixtures to the Eclipse as the power con- sumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. -
Page 15: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Eclipse User Manual... - Page 16 Eclipse User Manual...
