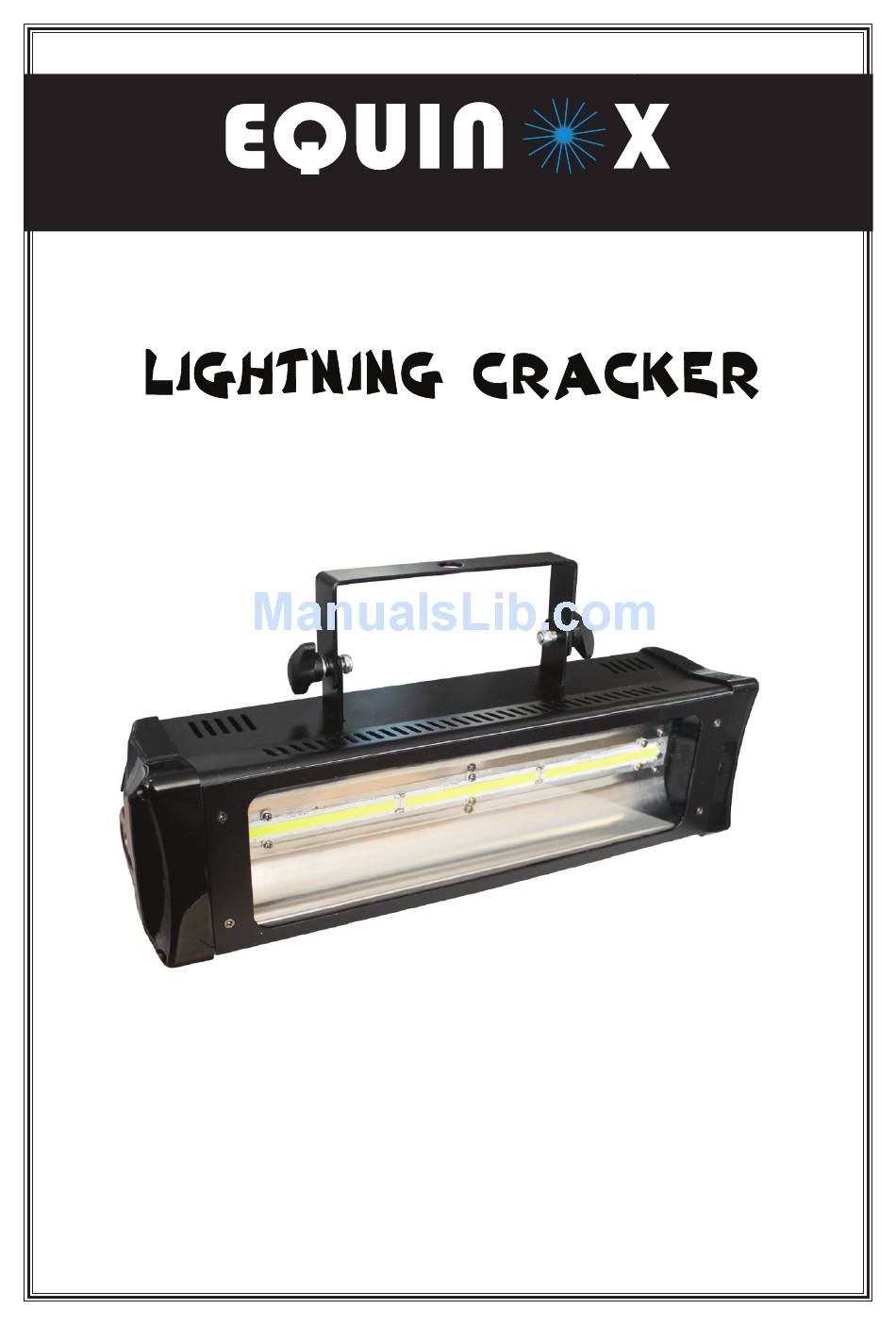

Page 1: User Manual
w w w . p r o l i g h t . c o . u k Order code: STRO11 User manual... - Page 2 Equinox Lightning Cracker Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual...
- Page 3 Equinox Lightning Cracker Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Equinox Lightning Cracker Technical specifications You should find inside the Equinox carton the following items: 1, Equinox Lightning Cracker strobe 2, Instruction manual Technical Specifications: DMX channels: 2 Voltage: AC 240V - 50Hz Fuse: F2A-250V Amp Power consumption: 14W Dimensions: 378 x 116 x 166mm Weight: 1.8Kgs Operations: There are 3 operating modes to choose from:...
- Page 5 Equinox Lightning Cracker Overview Over view POWER SUPLY 240V - 50Hz DIPSWITCHES DMX IN SAFETY EYE 100% DIMMER SPEED WWW.PROLIGHT.CO.UK FUSE: F2A/250V DMX OUT Main features • 3 x 3.5W White Linear LEDs • Large coverage area • Adjustable flash and intensity rate •...
- Page 6 Equinox Lightning Cracker DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a short circuit and erratic behaviour.
- Page 7 Equinox Lightning Cracker Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position Dip Switch position DMX Address...
