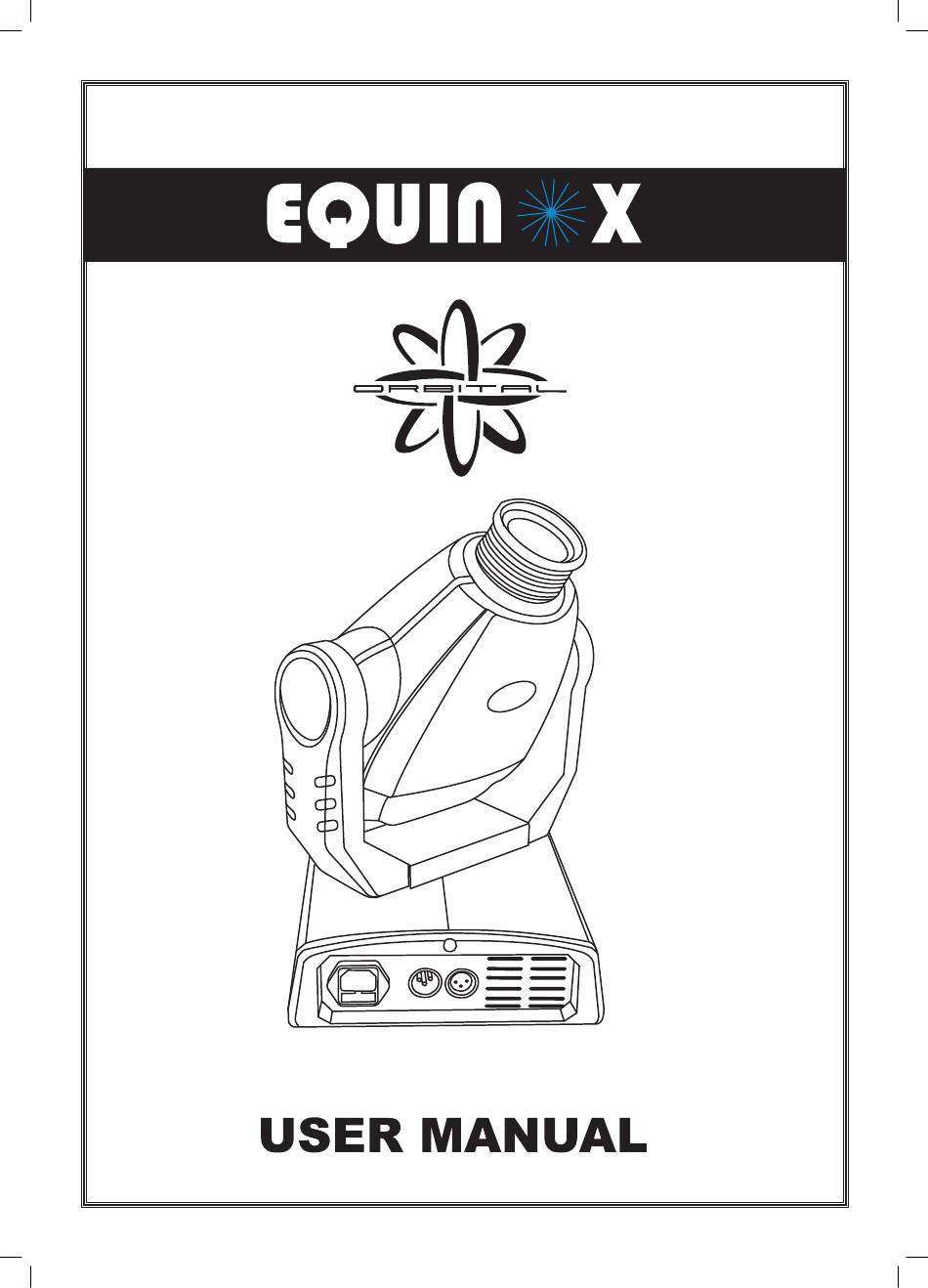

- Page 1 ORDER CODE: EQLED71...
-
Page 2: Safety Instructions
Equinox Orbital Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations
Equinox Orbital Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Equinox Orbital Technical specifications You should find inside the carton the following items: 1, Equinox Orbital Moving Head 2, Power cable 3, User manual Technical Specifications: DMX channels: 6/11 selectable Operating modes: 1, Sound Activated 2, Auto Run 3, DMX 4, Master/slave Ultra Bright 25W LED output Colour wheel: 8 Colours + White...
- Page 5 Equinox Orbital Operation modes Control Panel Overview: To access the control panel functions, use the four push buttons located under the LED display. When a function is selected, the LED display will show the first available option for that particular function.
- Page 6 Equinox Orbital DMX Chart 11 channel DMX chart Channel Value Function Pan 540˚ 0-255 0-255 Tilt 270˚ Pan/tilt movement speed (fast to slow) 0-255 White 0-13 Yellow 14-27 28-41 Pink 42-55 Green 56-69 Purple Blue 70-83 84-97 Lime Green 98-111 Orange 112-127 128-190...
- Page 7 Equinox Orbital DMX Chart 11 channel DMX chart (cont..) Channel Value Function Shutter closed 10-19 Shutter open Strobe 1 (slow to fast) 20-127 Shutter open 128-137 138-201 Strobe 2 (slow to fast) 202-255 Shutter open Dimmer 0-100% 0-255 0-16 No function 17-33 Blackout with pan/tilt movement 34-50...
- Page 8 Equinox Orbital DMX Chart 6 channel DMX chart...
- Page 9 Equinox Orbital DMX set up DMX Control Mode Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently.
- Page 10 Equinox Orbital DMX Set Up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
