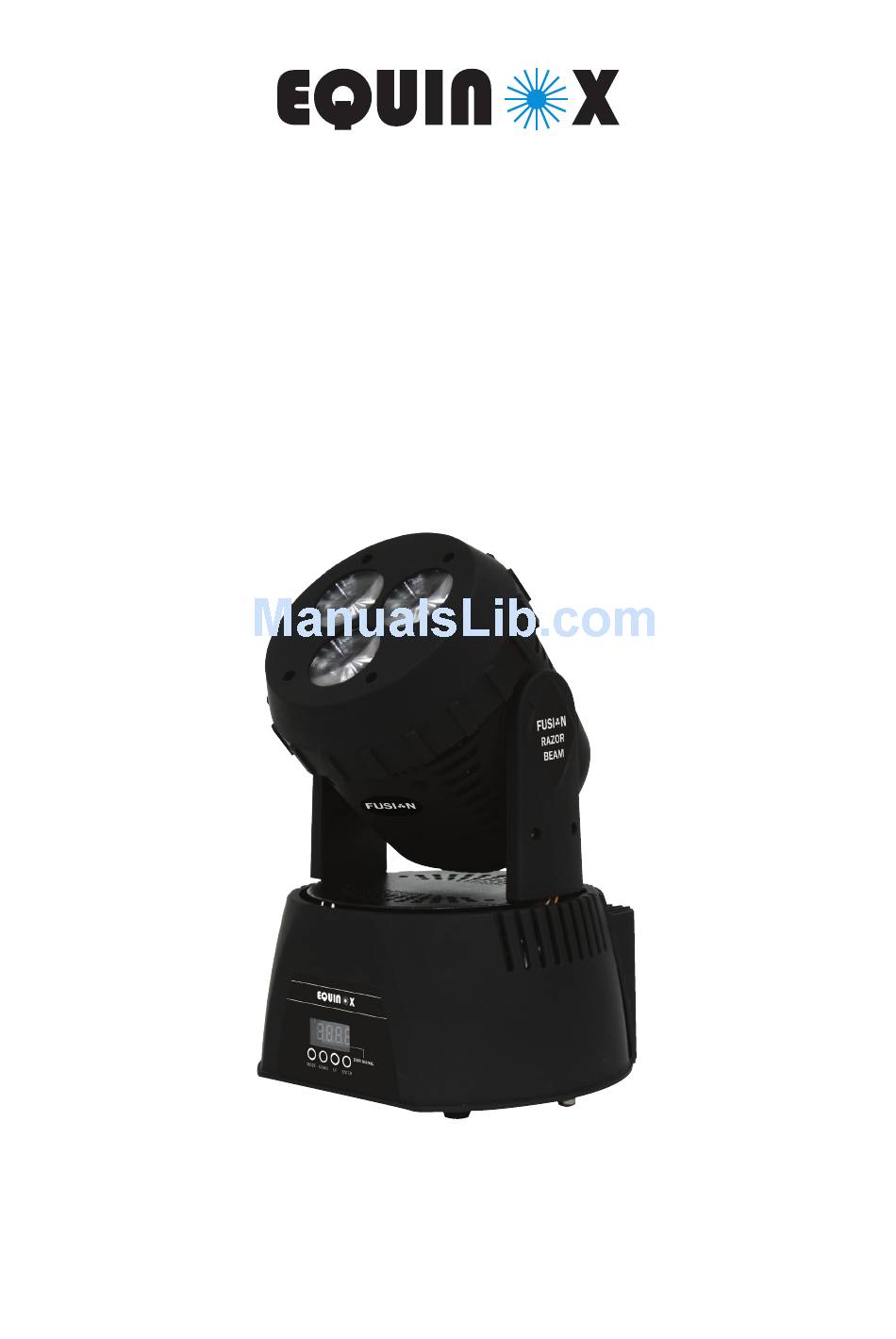

- Page 1 Fusion Razor Beam 3 x 12W Moving Head User Manual Order code: EQLED006...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 Product overview & technical specifications Fusion Razor Beam The Equinox Fusion Razor Beam utilises 3 x 12W quad colour LEDs to produce intense razor sharp beams. The compact and lightweight design allows for easy transportation and installation. The 4 push button LED menu allows for easy access to the functions including DMX, auto, sound active, strobe and master/slave modes. Loaded with advanced internal programming by Equinox the sound active and auto modes deliver stunning light shows. • 3 x 12W quad-colour LEDs • Beam angle: 8° • Pan: 540°, Tilt: 180° • DMX channels: 1, 4, 7 or 10 selectable • Auto, sound active, strobe and master slave modes • 0-100% dimming with variable strobe • 4 push button menu with LED display • IEC in/out sockets • 3-pin XLR in/out socket • Fan cooled • Supplied with hanging bracket 8° - Lux 1700 Specifications Razor Beam Power consumption Power supply 100~240V, 50/60Hz 8° Dimensions 288 x 222 x 190mm Weight 3.6kg Order code EQLED006 222mm 190mm...
-
Page 4: Technical Specifications
Technical specifications POWER IN/OUT DMX IN DMX OUT MENU DOWN ENTER In the box: 1 x fixture, 01 - LED display 05 - Enter button 09 - DMX in 1 x power cable, 02 - Menu button 06 - Power out socket 10 - On/off switch hanging bracket & 03 - Down button 07 - Power in socket 11 - DMX out 1 x user manual 04 - Up button 08 - Fuse 5A 250V www.prolight.co.uk Fusion Razor Beam User Manual... -
Page 5: Operating Instructions
Operating instructions DMX channel selection: Operating in DMX control mode gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. CHnd To access the DMX channel mode, press the “MODE” button on the font of the unit to show on the LED display. Now press the “ENTER” button and the channel mode will be displayed. Use the “UP” and “DOWN” buttons to choose one of the 1, 4, 7, or 10 DMX channel modes. Press the Addr “ENTER” button again, this will set the DMX channel. The display will now display To exit out of any of the above options, press the “MODE” button. 1 channel mode: Channel Value Function Blackout 8-127 Auto run (AT01) 128-255 Sound active (128: low sensitivity, 255: high sensitivity) www.prolight.co.uk Fusion Razor Beam User Manual... - Page 6 4 channel mode: Channel Value Function 0-255 Pan adjustment 0-255 Tilt adjustment 0-255 0-100% dimming (0: low brightness, 255: high brightness) Blackout 5-14 15-24 Green 25-34 Blue 35-44 White 45-54 Cyan 55-64 Yellow 65-74 Orange 75-84 Pink 85-94 Purple 95-104 Pastle green (green & white) 105-114 Pastle red (red & white) 115-124 Pastle blue (blue & white) 125-134 Pastle pink (red, blue & white) 135-144 Warm white (orange & white) 145-150 Blackout 151-200...
- Page 7 Operating instructions 10 channel mode: Channel Value Function 0-255 Pan adjustment 0-255 Tilt adjustment 0-255 Speed (pan & tilt) 0-255 0-100% dimming (0: low brightness, 255: high brightness) 0-255 Red (0: low brightness, 255: high brightness) 0-255 Green (0: low brightness, 255: high brightness) 0-255 Blue (0: low brightness, 255: high brightness) 0-255 White (0: low brightness, 255: high brightness) Blackout 5-14 15-24 Green 25-34 Blue 35-44 White 45-54 Cyan 55-64 Yellow 65-74 Orange 75-84 Pink 85-94 Purple 95-104...
- Page 8 Operating instructions Changing the address: Addr To access the address menu, press the “MODE” button on the front of the unit to show A001. is displayed. Press the “ENTER” button, the unit should now display Use the “UP” and “DOWN” A001 A512 buttons to select through . Press the “ENTER” button again, this will set the address. To exit out of any of the above options, press the “MODE” button. Slave mode: SLnd To access slave mode press “MODE” until the display shows . Press the “ENTER” button, the unit SL 1. SL 1 SL 2 should now display Use the “UP” and “DOWN” buttons to select either or . Press the “ENTER” button again, this will enable your chosen slave mode. To exit out of any of the above options, press the “MODE” button.
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. - Page 10 DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion.
-
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Fusion Razor Beam User Manual... - Page 12 www.prolight.co.uk Fusion Razor Beam User Manual...
