- Page 1 DOL1000-MF Programming & Installation Manual...

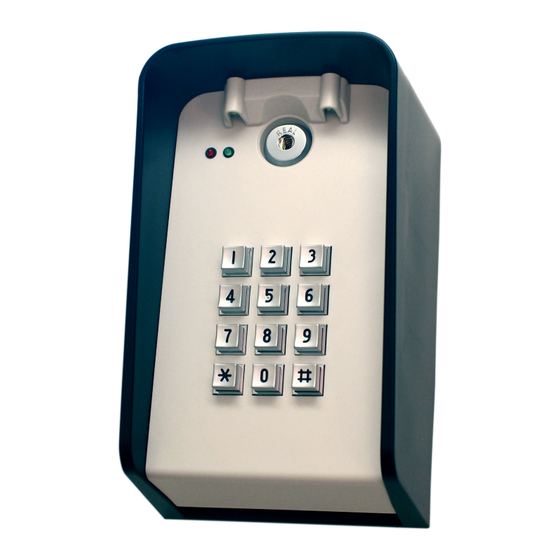

- Page 3 INTRODUCTION The DOL1000-MF is a versatile keypad that has the option of running wirelessly. The DOL1000-MF can work with 6 volts of battery power or 6-24 volts of AC/DC. This keypad can be wired with multiple wireless transmitters. DOL1000-MF can store up to 1000 access codes. Guest access codes are also programmable, which are single-use codes for access.
-
Page 4: Connection Terminals
CONNECTION TERMINALS • V+/V-: These terminals will supply power to the transmitter. • ANT: Antenna • RF1-4: The DOL1000-MF can control up to 4 different channels. Each RF terminal represents a different channel. • GO: Connects to the green LED •... -
Page 5: Installation Examples
RESETTING THE KEYPAD AND MASTER CODE Located on the DOL1000-MF’s circuit board, the red Master Reset Button is used to reset the master code back to 1234. The following steps will reset the master code: 1. Remove the battery or eliminate the power source to the DOL1000-MF and wait for 30 seconds for the keypad to completely power off. - Page 6 • 433MHz transmitter with battery example: • NOTE: Be sure to connect the power source to the correct terminals! The battery terminals and the AC/DC terminals are different. • NOTE: Any channel can be assigned for devices that connect to normally open/normally closed.
-
Page 7: Specifications
During the warranty period, the product will be repaired or replaced (at the sole discretion of Transmitter Solutions) if the product does not operate correctly due to a defective component. This warranty does not extend to (a) the keypad case, which can be damaged by conditions outside the control of Transmitter Solutions, or (b) battery life of the keypad. - Page 8 7380 S. Eastern Ave, Suite 124-320 • Las Vegas, NV 89123 (866) 975-0101 • (866) 975-0404 fax www.transmittersolutions.com...
