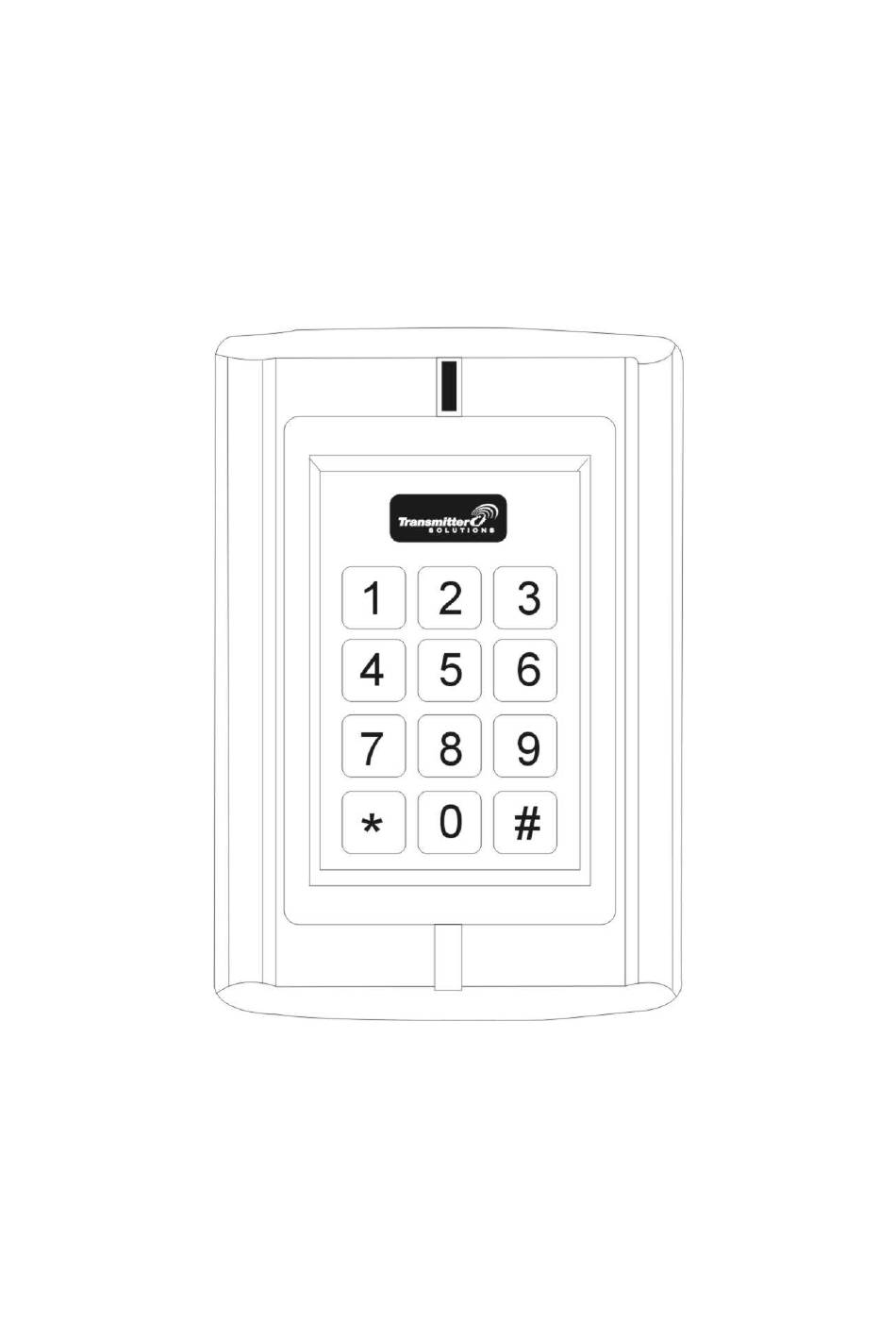

- Page 1 Model BC-2010 HID&EM Keypad/Reader/Controller User Manual...
-
Page 2: Packing List
3.5*27mm, used for fixing Please ensure that all the above contents are correct. If any are missing please notify the supplier of the BC-2010. BC-2010 Quick Reference Programming Guide To enter the programming mode Master code 888888 is the default factory master code... - Page 3 It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish. The BC-2010 supports up to 1500 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports both HID and EM 125KHZ frequency cards.
-
Page 4: Specifications
Specifications Operating Voltage 12V DC User Capacity 1500 Keypad 12 keys, 3x 4 digits Card Type HID 125 KHZ card; EM 125KHZ card Card Reading Distance 3 -7 cm ＜80mA Active Current ＜50mA Idle Current Lock Output Load Max 3A Alarm Output Load Max 20A Operating Temperature... - Page 5 Notes: BC-2010 uses a standard 10 pin connector- J1.The diagrams above show the standard cable colour connections for wiring BC-2010 keypad to a lock when used in a standalone mode. The upper diagram shows a common power supply for both the keypad and lock, the...
-
Page 6: To Reset To Factory Default
Note: Reset to factory default, the user’s information is still retained. 9. Anti Tamper Alarm The BC-2010 is built-in tamper switch. If the keypad is removed from the cover then the tamper alarm will operate. Sound and Light indication... - Page 7 To change the master code New code New code # The master code can be 6 to 8 digits long Setting the working mode: Set valid card only users # Entry is by card only Set valid card and PIN users # Entry is by card and PIN together Set valid card or PIN users # Entry is by either card or PIN (default)
- Page 8 Read Card To delete a card user by card. Note users can be deleted continuously without exiting programming mode To delete a card user by user ID. This User ID option can be used when a user has lost their card To delete a card by card number(8 digits) Input 8 digits Card number Cards can be deleted continuously without exiting...
-
Page 9: Door Settings
11.2 Door Settings Relay Output Delay Time To set door relay strike time 0～99 0-99 is to set the door relay time 0-99 seconds Door Open Detection Door Open Too Long (DOTL) warning. When used with an optional magnetic contact or built-in magnetic contact of the lock, if the door is opened normally, but not closed after 1 minute, the inside buzzer will beep automatically to remind people to close the door and continue for 1 minute before switching off automatically. -
Page 10: Interconnecting Two Devices
12.1 BC-2010 operating as a Wiegand Output Reader In this mode the BC-2010 supports a Wiegand 26 bit output so the Wiegand data lines can be connected to any controller which supports a Wiegand 26 bit input. See figure 1. - Page 11 Two BC-2010 units interconnected for a single door In this mode two BC-2010 units are used for a single door, one for entry and the other for exit. Either device acts as the controller and reader at the same time. Users can be enrolled on either of the devices.
- Page 12 FCC WARNING This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
