OWC Digital

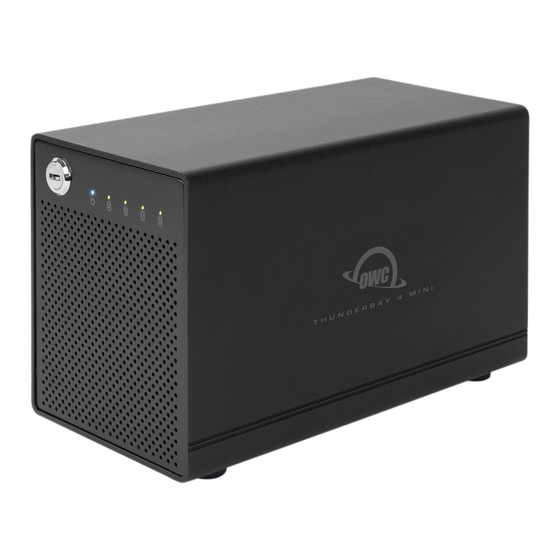

ThunderBay 4 mini
ASSEMBLY MANUAL & USER GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ThunderBay 4 mini and is the answer not in the manual?

Questions and answers

Summary of Contents for OWC ThunderBay 4 mini

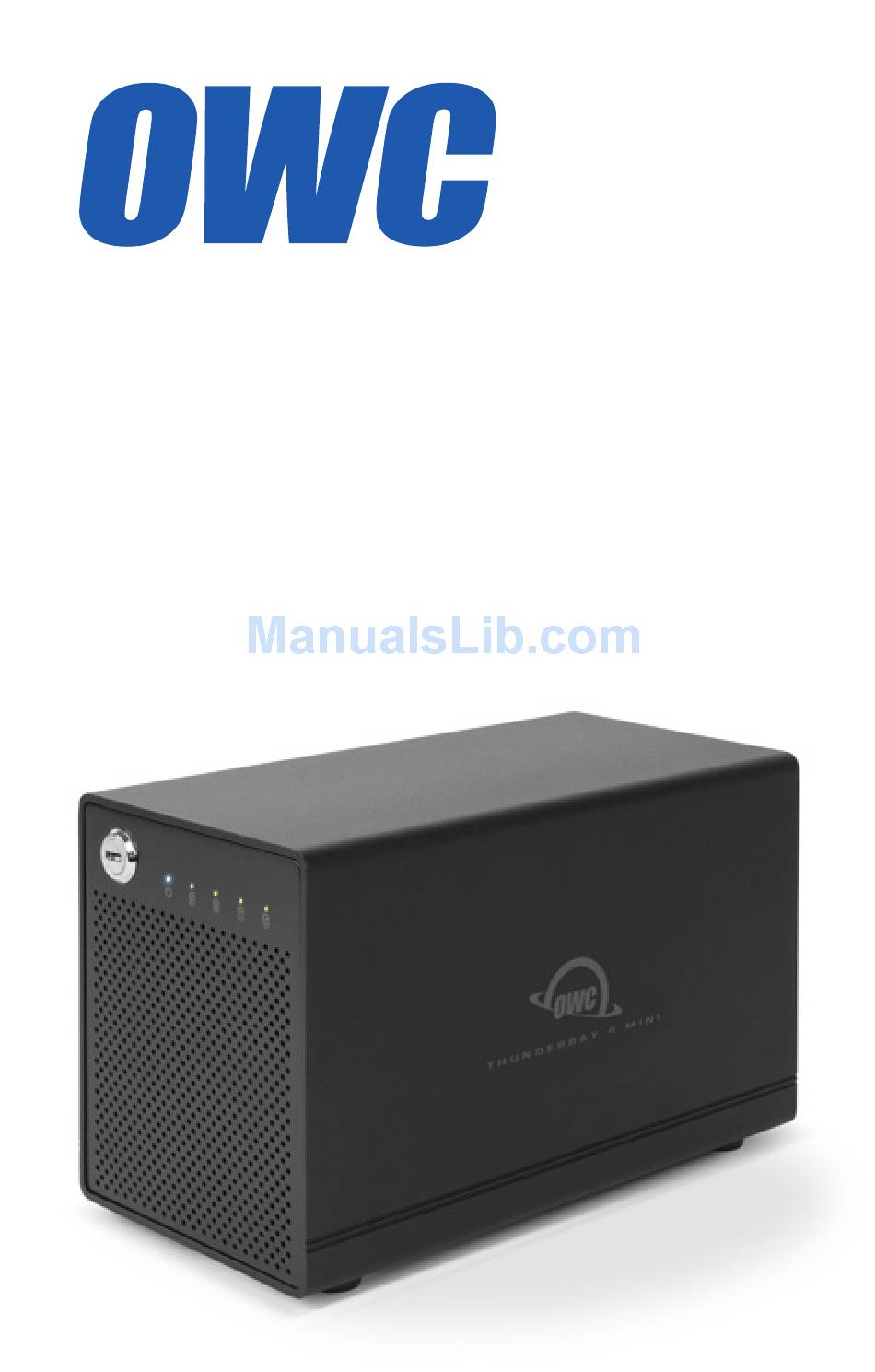

  • Page 1 ® OWC Digital ThunderBay 4 mini ASSEMBLY MANUAL & USER GUIDE...
  • Page 2: Table Of Contents

    2.1 HARD DRIVE INSTALLATION 2.2 QUICK START 2.3 SOFTWARE RAID 2.4 CHANGING DRIVES 2.4.1 Drive Failure APPENDIX ......................5 3.1 TROUBLESHOOTING 3.2 ABOUT DATA BACKUP 3.3 ONLINE RESOURCES 3.4 TECHNICAL SUPPORT INFORMATION OWC DIGITAL - THUNDERBAY 4 MINI TABLE OF CONTENTS...
  • Page 3: Minimum System Requirements

    1. Locking faceplate — Use the included keys to lock the faceplate for security, or remove the faceplate to gain access to the drive bays. 2. LED indicators — See the following chart for details on the ThunderBay 4 mini’s LEDs. ThunderBay...
  • Page 4: Rear View

    2. Power input — Connect the included power supply here. NOTE: • There is no power switch on the ThunderBay 4 mini. As long as the power supply is connected, the device mini will turn on when it receives a data signal through the Thunderbolt cable.
  • Page 5: Hard Drive Installation

    7. Fasten the drive into the drive tray using four of the included Phillips screws. 8. Slide the drive tray back into the rails in the ThunderBay 4 mini and push until it is seated fully. If you encounter resistance, do not force the drive tray. Remove it, check to make sure that there are no obstructions and that the drive tray is lined up correctly, then slide it in again.
  • Page 6: Quick Start

    2. Connect the power supply between the ThunderBay 4 mini and a power outlet. 3. Connect a Thunderbolt cable between the ThunderBay 4 mini and a computer. When you do this, the ThunderBay 4 mini will turn on and the drives will be available for use on the computer.
  • Page 7: Troubleshooting

    Begin your troubleshooting by verifying that the power cable is connected to the ThunderBay 4 mini and to a power source. If the power cable is connected to a power strip, make sure that the power switch on the strip is turned on.
  • Page 8 Copyrights: © 2015 OWC Digital. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or trans- mitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of OWC Digital.
