Summary of Contents for Antari SFX-1000

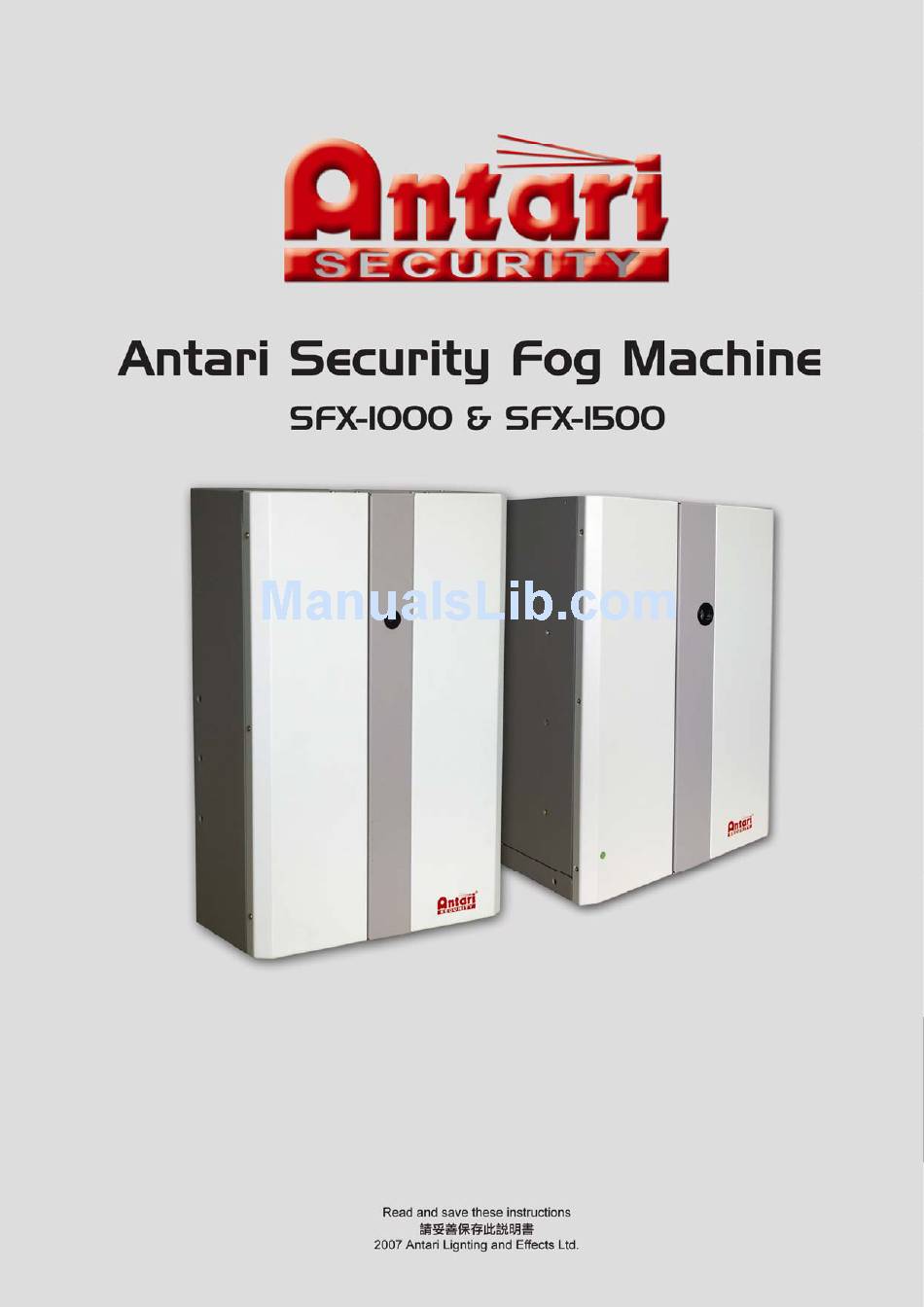

- Page 1 - - 0 - -...
- Page 2 ＊ Please disconnect power before change fuse. ＊ Please operate only with adult supervision. ＊ Only Antari smoke fluid should be used. Other fluid may damage the equipment or cause dangers to human physical safety. ＊ Do not use without smoke fluid.
-
Page 3: Pcb Connection
PCB Connection All relay outputs are offered as volt-free contacts. The “Alarm” and “Trigger” inputs are also required to be volt-free. Tamper: When the Tamper connection or its front jumper or the machine front cover or fluid bag chamber cover, any one of above four parts is open circuit, the LED red light will flash every 2 seconds and the buzzer will produce a long beep sound every minute to warn. - Page 4 security control center, the relay will give a signal of closed circuit if the smoke machine completes the heating process. This signal can notice the security control center that the smoke machine is ready. If COM and NC are wired, the reverse signal (open circuit) will be sent out. Trigger This terminal can work with Alarm and Hold together to activate the smoke generator.
-
Page 5: Example Of Application
◎ Example of application Security Buzzer Security Smoke Generator Security Strobe Security System Control Center PIR (Motion Detector) Setting the DIP Switches Open the front cover and locate the DIP switches (There is a block of two). DIP1 When switch to “ON”, the activation of producing smoke is reverse. (It means that Alarm, Trigger, Hold-off PIR Alarm have to be open circuit in order to make smoke) DIP2 In order to change UPS state (Switch UPS ON/OFF) on the security smoke machine, first please... - Page 6 Green light flashes slowly Test the security smoke generator Once Antari security smoke generators reach ready status (Green LED On), you can carry out a simple test at generators to check the smoke production. Open the front cover, and press and hold down the “PB1“test button. The machine will produce smoke.
- Page 7 SFX-1000 & SFX-1500 保全煙霧機操作說明書 Antari 警告! ＊ ＊ ＊ ＊ ＊ ＊ Antari ＊ ＊ ＊ ● 1 × Antari ● 1 × ● 1 × ● 1 × Antari Alarm,Trigger Hold-off ,Alarm Trigger ,Hold-off PIR( Alarm Trigger Hold-off Alarm...
- Page 8 Tamper Tamper (Jumper) ,LED 12V/100mA Hold off Alarm,Trigger Hold-off, Alarm Trigger PIR( Alarm Trigger Hold-off Verification COM,NO( COM,NO( COM,NO( Ready COM,NO( Trigger Alarm, Hold-off Trigger, Alarm Hold-off Alarm Trigger, Hold-off Alarm, Trigger Hold-off - 7 -...
- Page 9 ◎ 動 作 偵 測 器 RIR ( TAMPER 電 壓 輸 入 請 注 意 正 負 極 12V / 100mA 12VDC/100mA Hold 觸 發 訊 號 Verification LED燈 號 顯 示 機 器 狀 態 的 改 變 機...
- Page 10 DIP1 ”ON” Alarm, Trigger, Hold-off PIR Alarm DIP2 ”ON” ”OFF” - 9 -...
- Page 11 Antari ”PB1” Antari Antari Email: sales@antari.com : +886-3-322-5829 :+886-3-322-0433 - 10 -...
- Page 12 C08SFX102 - 11 -...
