Life Fitness Service Kit Instruction (GK61-00002-0008)

HOW TO... REPLACE ROCKER ARMS

Tools required: Snap ring pliers, 3/8 Socket set, and Standard wrench set
Step 1
Unplug the unit at the electrical outlet.
Step 2
Raise the boot covers on the upper arms then remove
three mounting bolts from each upper arm.
Step 3
If equipped, remove the clevis covers.
Step 4
Remove the nut and bolt securing the PEDAL LEVER to
the ROCKER ARM, and lower the pedal lever.
Step 5
Remove the END CAP and internal snap from the rocker
arm.
Step 6
Remove the rocker arm.
Step 7
Install the new rocker
arm in reverse order.
NOTE: For units
without clevis covers,
plug the square holes
in the bottom of the
rocker arms with the
supplied plugs.
NOTE: For units with
clevis covers, insert
the nylon grommets
(nuts) as supplied,
then install clevis
covers.

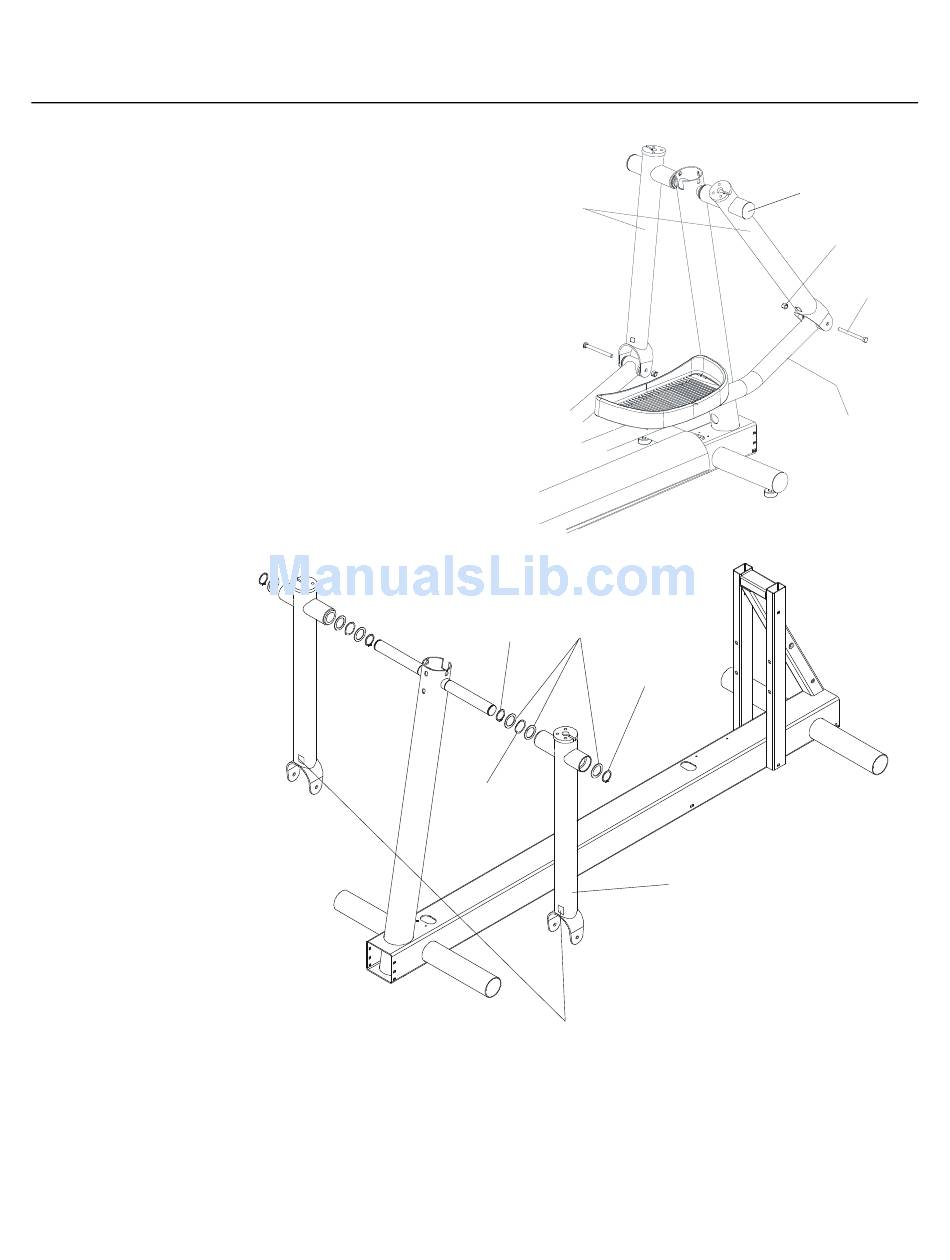

Rocker Arms
Snap
Flat Washers
Ring
Wave
Washer
Insert Plug or Nylon Grommet
into square opening
End Cap
Pedal Lever
Snap
Ring
Rocker Arm
M051-00K61-A022
Torque
30-35 FT. LBS.
Bolts(2)
