Life Fitness M051-00K61-A039 Installation Manual

Life Fitness Rear Drive Cross-Trainers
How To... Install AVK Leg Leveler Retainer
Tools Required: Screwdriver, Open end wrench
1. Raise and support the front end of the Cross-Trainer
to access the LEG LEVELERS.
2. Remove the LEG LEVELERS.
3. Carefully remove the existing AVKs (nut inserts).
NOTE: Do not leave loose AVKs in the frame tube.

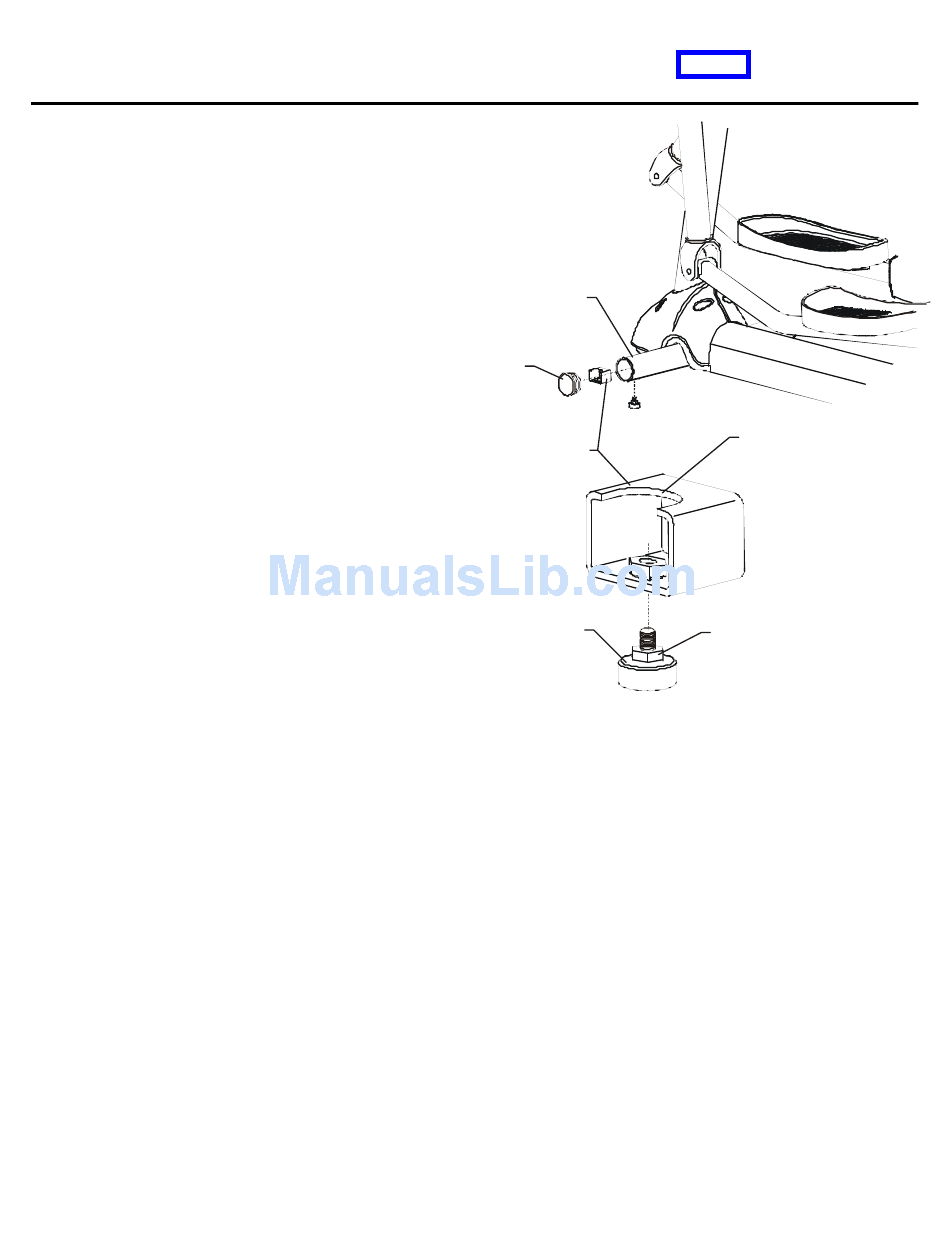

4. Install the new LEG LEVELER RETAINER with the
radius cut facing up and outward as shown.
5. Align the bolt hole in the LEG LEVELER RETAINER
with the bolt hole in the FRAME TUBE.
6. With the JAM NUT in place, screw the LEG
LEVELER into the LEG LEVELER RETAINER.
7. Remove the support from the front end of the unit.
8. Stabilize the front of the unit and secure THE LEG
LEVELER positions by tightening THE LEG
LEVELER JAM NUTS against the FRAME TUBE.
9. Reinstall the END CAPS.
Frame
End
Cap
Leg Leveler
Retainer
Leg Leveler
Bulletin
Service Kit GK61-00002-0038
Radius cut faces
up and outward
towards end cap
Jam Nut
M051-00K61-A039
