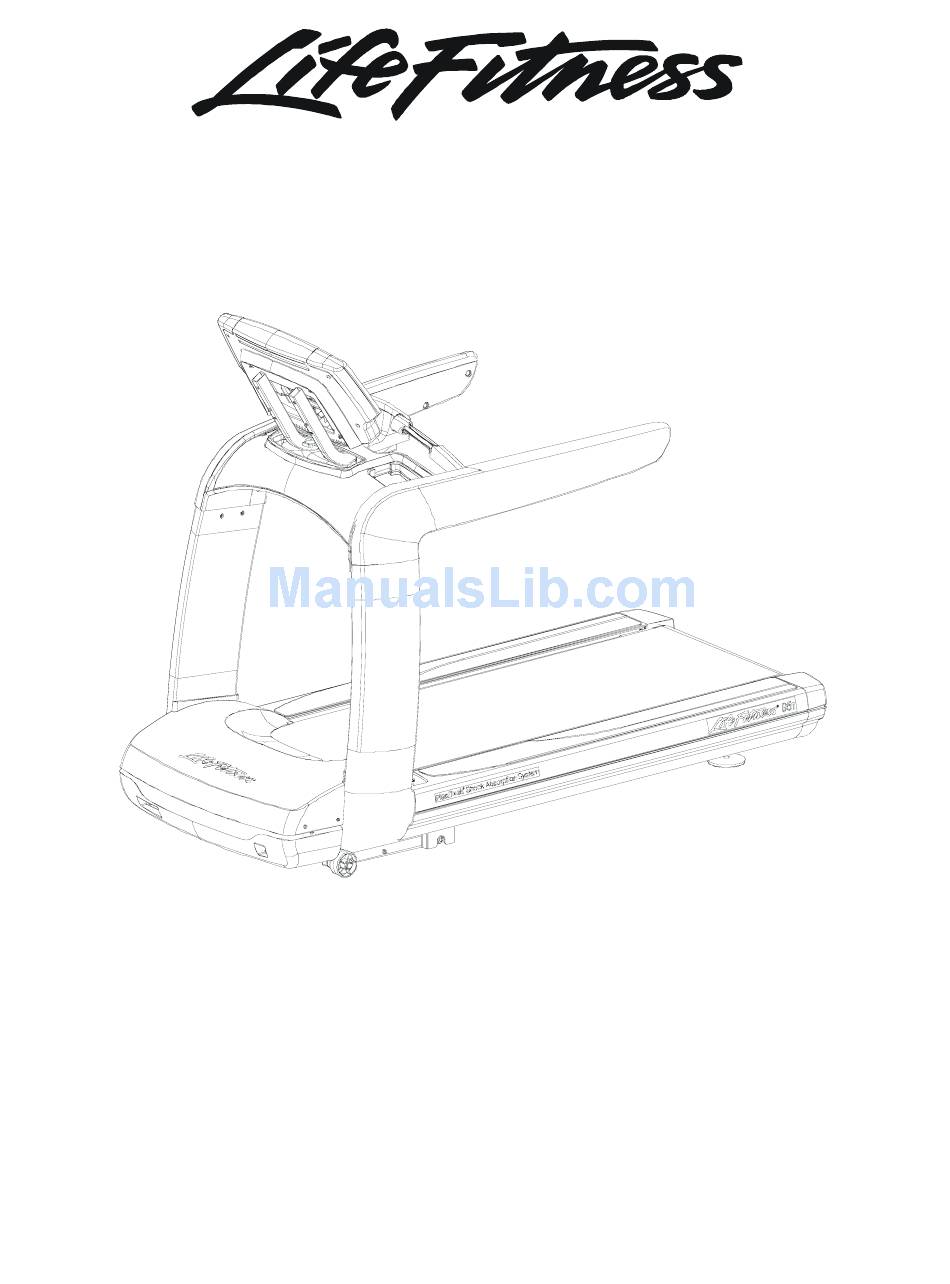

- Page 1 PCST-DOMLX-02, PCST-DOMHX-02, and PCST-INTHX-02 Treadmills Customer Support Services PARTS MANUAL rev 22 May 2008...
-
Page 2: Table Of Contents
Platinum Club Series Treadmill PCST-XXXXX-02 CONTENTS S/N PST100000 and up Miscellaneous ... 3 Rear End Caps... 4 Anti-slip Pad and Extrusions ... 5 Console Assembly ... 6 Uprights and Covers ... 7 Bridge Covers and Activity Zone ... 8 Handrails and Covers ... 9 Console Bracket and Covers ...10... -
Page 3: Miscellaneous
LINE CORDS: Domestic Low Voltage Domestic High Voltage International high Voltage Australia China This treadmill has both Lifepulse hand sensors and telemetry and is pre-wired for attachable TV. S/N PST100000 and up Part No. M051-00K65-A020 AK65-00025-0000 0017-00101-1769 – 2 PCS. -
Page 4: Rear End Caps
Platinum Club Series Treadmill Rear End Caps Right Rear End Cap 0K65-01065-0001 Left Rear End Cap 0K65-01065-0002 PCS5T-XXXXX-02 S/N PST100000 and up Rear End Cap Mounting Screws (4) 0017-00101-1776... -
Page 5: Anti-Slip Pad And Extrusions
Platinum Club Series Treadmill Anti-slip Pad and Extrusions Lower Extrusion Spacer (1 per side) 0K65-01259-0000 RH Lower Frame Extrusion Assembly AK65-00093-0001 LH Lower Frame Extrusion Assembly AK65-00093-0002 (Assemblies Include Dual-Lock tape) Right Anti-slip Pad 0K65-01190-0001 Left Anti-slip Pad 0K65-01190-0002 Right Upper Extrusion/Ant-slip Pad Kit... -
Page 6: Console Assembly
Console Assembly LED TREADMILL CONSOLE – ENGLISH LED TREADMILL CONSOLE - INTERNATIONAL 7-INCH LCD TREADMILL CONSOLE DOM 7-INCH LCD TREADMILL CONSOLE INT 15-INCH LCD TREADMILL CONSOLE DOM NTSC 15-INCH LCD TREADMILL CONSOLE NTSC 15-INCH LCD TREADMILL CONSOLE PAL Description PCST-XXXXX-02 S/N PST100000 and up Part No. -
Page 7: Uprights And Covers
Platinum Club Series Treadmill Uprights and Covers Right Upright Cover 0K65-01127-0001 Left Upright Cover 0K65-01127-0002 S/N PST100000 and up Right or Left Upright Assembly AK65-00069-0001 Upright Mounting Bolts (6) 0017-00101-1984 Washers (6) 0017-00104-0489 Upright Cover Mounting Screws (2) 0017-00101-1776 PCST-XXXXX-02... -
Page 8: Bridge Covers And Activity Zone
Platinum Club Series Treadmill Bridge Covers and Activity Zone Top Bridge Cover 0K65-01051-0000 Bottom Bridge Cover 0K65-01052-0000 Bezel Access Door 0K65-01053-0000 Bridge Access Door 0K65-01208-0000 Bridge Cover Mounting Screws (10) 0017-00101-1953 S/N PST100000 and up Activity Zone Assembly AK65-00015-0000 Mounting Screws (2) -
Page 9: Handrails And Covers
Platinum Club Series Treadmill Handrails and Covers Right Handrail Assembly AK65-00077-0001 Right Outer Handrail Cover 0K65-01167-0001 Outer Handrail Mounting Screws (6 per cover) 0017-00101-1953 Left Handrail Assembly AK65-00077-0002 Left Outer Handrail Cover 0K65-01167-0002 Right Inner Handrail Cover 0K65-01168-0001 Left Inner Handrail Cover... -
Page 10: Console Bracket And Covers
Platinum Club Series Treadmill Console Bracket and Covers Console Bracket Assembly AK65-00085-0000 Neck Spacer Screws (2) 0017-00101-1953 Console Neck Spacer 0K65-01188-0000 S/N PST100000 and up Console Mounting Screws (4) 0017-00101-1995 AK65-00090-0000 0017-00101-1953 PCST-XXXXX-02 Rear Console Cover w/Decal Rear Console Cover Screws (2) -
Page 11: Ergo Bar Components
Platinum Club Series Treadmill Ergo Bar Components HR Sensor Kit GK65-00002-0002 (includes 4 sensors, sensor gaskets, and mounting screws) Bridge Weldment AK65-00129-0000 Bridge Weldment Mounting Screws (4) 0017-00101-1953 Inner Ergo Bar Gasket (left) 0K65-01204-0002 Outer Ergo Bar Gasket (left) 0K65-01203-0002... -
Page 12: Motor Pan Covers
Platinum Club Series Treadmill Motor Pan Covers Bottom Motor Cover 0K65-01126-0000 Motor Cover Screws (4) 0017-00101-1776 S/N PST100000 and up Top Motor Cover 0K65-01125-0000 Motor Cover Screws (4) 0017-00101-1776 PCST-XXXXX-02... -
Page 13: Motor Pan Brackets
Platinum Club Series Treadmill Motor Pan Brackets Right Front Motor Cover Bracket 0K65-01134-0001 Mounting Screws (3) 0017-00101-1961 Actuator and Frame Tie Weldment AK65-00088-0000 Flat Washers (5) 0017-00104-0334 Bar Tie Mounting Bolts (5) 0K65-01187-0000 0017-00101-1983 Bar Tie Mounting Hardware Lock Washers (5) -
Page 14: Belt, Deck, And Rollers
Platinum Club Series Treadmill Belt, Deck, and Rollers Front Roller Assy. AK65-00067-0000 (Dom) AK65-00067-0001 (INT) Mounting Bolt 0017-00101-0974 Lock Washer 0017-00104-0006 Flat Washer 0017-00104-0043 Hex Bolts (4) 0017-00101-1632 Lock Washers (4) 0017-00104-0005 Flat Washers (4) 0017-00104-0330 Striding Belt 0K65-01272-0000 Deck... -
Page 15: Deck Springs And Roller Guards
Platinum Club Series Treadmill Deck Springs and Roller Guards Deck Springs (4 on each side) 0K40-01026-0002 Spring Mounting Screw 0017-00101-1652 Flat Washer 0017-00104-0072 Toe Guard Toe Guard Mounting Hardware AK65-00080-0000 Bolts (2) 0017-00101-1967 Washers (2) 0017-00104-0004 Nuts (4) 0017-00103-0333 Washers (2) -
Page 16: Lift Motor And Hardware
Platinum Club Series Treadmill Lift Motor and Hardware Lift Actuators 115V GK65-00002-0008 230V GK65-00002-0009 Ring Grip Pin 0017-00007-0275 Bolt 0017-00101-1021 0017-00103-0025 PCST-XXXXX-02 S/N PST100000 and up... -
Page 17: Lift Frame And Wheels
Platinum Club Series Treadmill Lift Frame and Wheels Lift Frame Assembly (includes lift frame, wheels, e-rings, and end caps) AK65-00035-0000 Tube End Caps (8) 0K60-01092-0000 Lift Wheels (2) 0K65-01245-0000 E-Rings (2) 0017-00100-0249 S/N PST100000 and up Painted Lift Frame Weldment... -
Page 18: Dsp Motor Controller
Platinum Club Series Treadmill PCST-XXXXX-02 DSP Motor Controller S/N PST100000 and up DSP Motor Controller with Cable GK65-00002-0015 100-120V GK65-00002-0016 200-240V Hex Nuts (3) 0017-00103-0350... -
Page 19: On/Off Switch, Home Switch, And Line Filter
PLATINUM CLUB SERIES On/Off switch, Home Switch, and Line Filter Ground Screws (2) 0017-00101-1968 Line Filters 20 amp (Dom only) 0017-00003-1015 10 amp (INT only) 0017-00003-0898 Line Filter Mounting Screws (2) 0017-00101-1968 S/N PST100000 and up Home Switch 0017-00032-0195 Mounting Nuts (2) 0017-00103-0350 IEC Receptacle 0017-00003-0949... -
Page 20: Drive Motor Assembly
Platinum Club Series Treadmill Drive Motor Assembly Drive Motor AK58-00171-0002 Setscrews (2) 0017-00101-0333 Drive Pulley 0K58-01057-0001 Flywheel with Fan 0K65-01221-0000 Hex Bolt 0017-00101-1885 Insulating Pads (2) 0K58-01256-0001 PCST-XXXXX-02 S/N PST100000 and up Hex Nuts (4) 0017-00103-0027 Insulating Washers (4) 0K58-01255-0000... -
Page 21: Idler Assembly And Static Brush
Platinum Club Series Treadmill Idler Assembly Idler Assembly (includes idler bracket, plastic idler, threaded shaft, and nut) AK65-00029-0000 Idler Bracket 0K65-01113-0000 Plastic Idler 0K26-01731-0000 Threaded Shaft 0K58-01084-0002 0017-00103-0324 Locking Pin 0017-00007-0248 Mounting Nuts (4) 0017-00103-0333 S/N PST100000 and up Extension Spring... -
Page 22: Leg Leveler Assembly
Platinum Club Series Treadmill Leg Leveler Assembly Leg Leveler Assembly (includes leveler bracket, pivot pin, stop nut, and leveling foot) AK58-00370-0000 Pivot Pin 0K58-01098-0000 Stop Nut 0K58-01099-0000 Leveling Foot 0K58-01110-0000 PCST-XXXXX-02 S/N PST100000 and up Hex Nuts (4) 0017-00103-0333 Leveler Bracket... -
Page 23: Cables
PLATINUM CLUB SERIES TREADMILL Cables AK26-00348-0000 – Qty. 2 – Green and yellow ground wire with spade lug on one AK32-00160-0000 - Qty. 1 – External Power cable with ferrite. AK65-00062-0000 – Qty. 1 – RG6 Coax cable 75” AK58-00034-0001 – Qty. 1 – Main Power cable from DSP to Console AK58-00224-0001 –... - Page 24 Platinum Club Series Treadmill Cables AK65-00094-0000 – Qty. 1 – Black and white wires with spade lug on each end. AK65-00095-0000 – Qty. 1 – Line filter to switch cable with a black and white AK65-00011-0001 – Qty. 1 – Harness assembly 120/60 20A AK65-00011-0004 –...
- Page 25 Platinum Club Series Treadmill Cables AK65-00011-0005 – Qty. 1 – Harness assembly 230/50 10A (International units only) ……consists of the following components: 1) AK26-00348-0000 Outlet/Gnd Jumper Cable Assy. 2) AK58-00224-0001 MOV Filter Cable Assy. 3) AK58-00263-0000 Hi Pot Jumper cable Assy.
