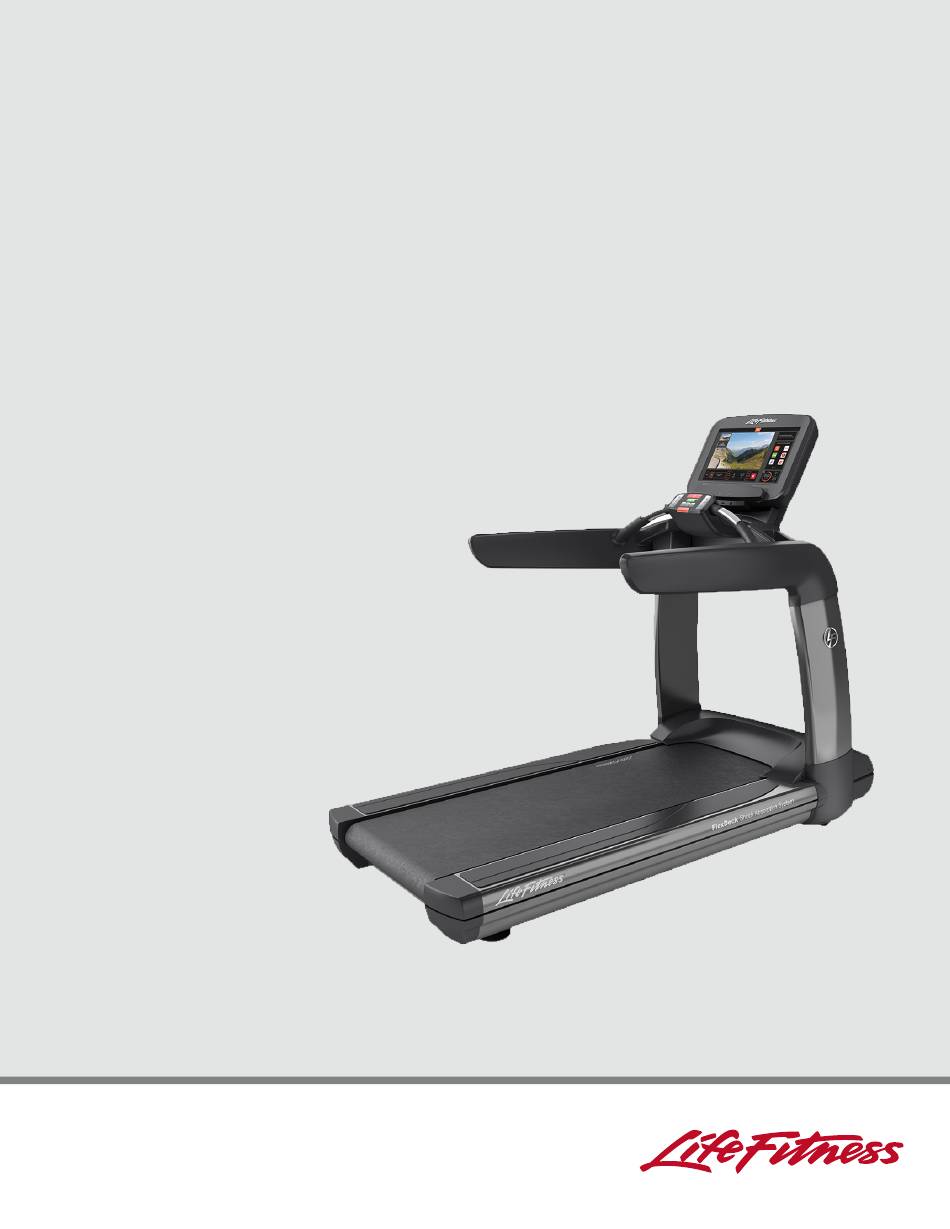

- Page 1 ELEVATION SERIES 95T TREADMILL & ™ PLATINUM CLUB SERIES TREADMILL DISCOVER SE3, DISCOVER SI, & EXPLORE ASSEMBLY INSTRUCTIONS M051-00K92-0000 REV AG...
- Page 3 SAC: 0800 773 8282 option 2 Email:sales@lifefitnessjapan.com kundendienst@lifefitness.com Telephone: +55 (11) 3095 5200 option 2 Sales/Marketing Email: Hong Kong Service Email: vertrieb@lifefitness.com Life Fitness Asia Pacific LTD suportebr@lifefitness.com 32/F, Global Trade Square Spain Sales/Marketing Email: 21 Wong Chuk Hang Road vendasbr@lifefitness.com Life Fitness IBERIA Hong Kong C/Frederic Mompou 5,1º1ª...
- Page 4 Please take special note of the following safety instructions and important points prior to choosing a location and beginning assembly of the Elevation Series 95T Treadmill or Platinum Club Series Treadmill Discover SE3, Discover SI, and Explore.
-
Page 5: Table Of Contents
Table of Contents 1. Getting Started ................4 1.1 Important Safety Instructions . -
Page 6: Getting Started
WARNING: Heart rate monitoring systems may be inaccurate. Over exercising may result in serious injury or ƒ death. If you feel faint, stop exercising immediately. WARNING: Keep the area 6.5 ft. (2 m) by 3 ft. (0.9 m) behind the Life Fitness treadmill clear of any obstructions, ƒ including walls, furniture, and other equipment. - Page 7 If warnings are missing or damaged, please contact LIFE FITNESS immediately for replacement warning labels. ƒ Warning labels are shipped with every product and should be installed before product is used. LIFE FITNESS is not responsible for missing or damaged warning labels.
- Page 8 Pour débrancher, mettre l’appareil hors tension au niveau de l’interrupteur d’alimentation, puis retirer la fiche de la prise électrique. Ne jamais faire fonctionner un produit Life Fitness dont la fiche ou le cordon d’alimentation est endommagé, ni ƒ aucun appareil qui serait tombé ou aurait été endommagé ou même partiellement plongé dans l’eau. Appeler le service clientèle de Life Fitness.
- Page 9 ƒ les faire remplacer. Les étiquettes d’avertissement sont livrées avec chaque produit et doivent être installées avant leur utilisation. LIFE FITNESS ne peut être tenu responsable lorsque des étiquettes d’avertissement sont absentes ou endommagées. Conformément à la directive Machines 2006/42/EC de l’Union européenne, à vide, cet équipement fonctionne ƒ...
-
Page 10: Set-Up
1.2 Set-Up Read the entire manual before setting up the Life Fitness Treadmill. Place the treadmill where it will be used before beginning the setup procedure. Electrical Power Requirements The Life Fitness Treadmill requires a dedicated* line with isolated neutral according to the electrical configurations listed in the chart below. - Page 11 How to Position and Stabilize the Life Fitness Treadmill Follow all safety instructions. Move the treadmill to the location in which it will be used. Note: To center the striding belt see Section 2.5 How to Adjust and Tension the Striding Belt.
- Page 12 Cable TV Hook-Up - Discover SE3 Consoles Only The Discover SE3 console can receive both analog and digital signals. LIFE FITNESS is not responsible for the installa- tion of CATV service or components required for the delivery of CATV service. An external TV signal input via a 75-ohm coaxial cable must be present before TV setup can occur.
- Page 13 WARNING: Make sure that there is a 6.5 foot clearance behind the treadmill. Contact LIFE FITNESS Customer Service for an optional longer power cord if necessary. DANGER: Ensure that the power cord (A) does not contact the striding belt or get pinched between the frame (D), lift arm (E) or under the wheels (F);...
-
Page 14: Service And Technical Data
Service and Technical Data 2.1 Preventive Maintenance Tips Life Fitness products are backed by the engineering excellence and reliability of Life Fitness and are one of the most rugged and trouble-free pieces of exercise equipment on the market today. Note: Safety of the equipment can be maintained only if the equipment is examined regularly for damage or wear. -
Page 15: Preventive Maintenance Schedule
2.2 Preventive Maintenance Schedule Item Weekly Monthly Biannually Console Overlays Clean Inspect Bottle Holders / Accessory Trays Clean Inspect Console Mounting Bolts Inspect Inspect Hardware Clean Inspect Frames Plastic Covers Clean Inspect Inspect Lifepulse Sensors Clean / Inspect Striding Belt Centered Inspect Machine Level * Inspect... -
Page 16: Troubleshooting The Treadmill
No power Using a voltmeter, verify power at outlet. If no power exists, reset circuit breaker at panel. Replace line cord. Contact Life Fitness Line cord is damaged. Customer Support Services. Inspect power connections at wall outlet Line cord is improperly seated in socket. - Page 17 Display does not Check all electrical connections for proper console or 4 pin circular connector at illuminate when ma- attachment. Contact Life Fitness Customer 24 volt power supply or line cord to 24 chine is powered on. Support Services. volt power supply under front of unit.
- Page 18 Move all possible obstructions off display contact with stop switch while user is console and handlebar. running. Stop switch is activated with very light Contact Life Fitness Customer Support pressure or returns slowly after being Services. pressed. Stop switch cable is not making proper Contact Life Fitness Customer Support contact.
-
Page 19: Troubleshooting The Optional Polar Telemetry Heart Rate Chest Strap
The receiver is in the con- sole. After the heart rate is displayed on the console the range is extended to 3 feet. Contact Life Fitness Customer Support Heart rate reading is Polar telemetry heart rate chest strap... -
Page 20: How To Adjust And Tension The Striding Belt
Note: Do not exceed one full turn of the adjusting screws in either direction. If after one full turn the belt does not track properly, contact Life Fitness Customer Support Services. Do not overtighten the tensioning bolts while making belt ad-... -
Page 21: How To Obtain Product Service
2. Locate and write down the serial number of the unit which is located on the back of the unit near the toe guard. 3. Contact the nearest Life Fitness Customer Support Services group (refer to page one). -
Page 22: Assembly
Assembly Component List Tools Required: • #2 Phillips screwdriver • 4mm, 5mm, 8mm Allen Head Drivers (T-Bar recommended) Part Description Part Description Foam Strip Upright (Left) Right Side Extrusion M12 x 1.75 Hex Button Head Screw (SILVER) Left Upright Cover M12.5 Washer Upright (Right) Right Upright Cover... - Page 23 Hardware M6 X 14 BUTTON HEAD SCREW (#7) M12.5 WASHER (#3) M6 X 25 BUTTON HEAD SCREW (#36) M6.5 WASHER (#8) M6 X 20 SOCKET HEAD SCREW (#31) M5 X 10 PHILLIPS PAN HEAD SCREW (#17) #10 X 8 PHILLIPS PAN HEAD SCREW (#22) M5 X 14 PHILLIPS PAN HEAD SCREW (#37) #8 X 12 PHILLIPS PAN HEAD SCREW (#28) M6 X 35 BUTTON HEAD SCREW (#33)
- Page 32 31 31 8 31 31 31 Discover SE3 & SI ONLY...
- Page 33 Discover SE3 & SI ONLY...
- Page 34 Discover SE3 & SI ONLY Explore ONLY 34 35...
- Page 35 11 12 11 12 Explore ONLY Discover SE3 & SI ONLY...
- Page 36 Discover SE3 & SI ONLY...
- Page 37 EXPLORE ONLY...
- Page 39 24 a Discover SE3 Discover SI Discover SE3 IPTV...
- Page 40 24 b Explore...
- Page 42 Explore ONLY...
- Page 43 28 a...
- Page 44 28 b...
- Page 47 Coaxial Cable External Ethernet Cable...
- Page 48 MAKE SURE ALL HARDWARE IS TIGHT! ASSUREZ-VOUS QUE TOUTE LA VISSERIE EST BIEN SERRÉE ! CONTROLEER OF ALLE BEVESTIGINGEN GOED VAST ZITTEN! SICHERSTELLEN, DASS ALLE BEFESTIGUNGSTEILE FESTGEZOGEN SIND! ASSICURARSI CHE TUTTA LA BULLONERIA SIA BE N STRETTA ASEGÚRESE DE QUE TODAS LAS PIEZAS ESTÉN BIEN APRETADAS. ASSEGURE-SE DE QUE TODAS AS PEÇAS ESTÃO APERTADAS! TÜM DONANIMIN SIKI OLDUĞUNU KONTROL EDİN! УБЕДИТЕСЬ, ЧТО...
-
Page 49: Specifications
Specifications 4.1 Life Fitness Treadmill specifications Designed use: Elevation Series 95T: Heavy/Commercial Platinum Club Series: Home Maximum user weight: 400 pounds / 181 kilograms Speed range: Elevation Series 95T: 0.5 - 14.0 MPH (0.8 - 23 KPH) in 0.1 increments Platinum Club Series: 0.3 - 12.0 MPH (0.5 - 19 KPH) in 0.1 increments...
