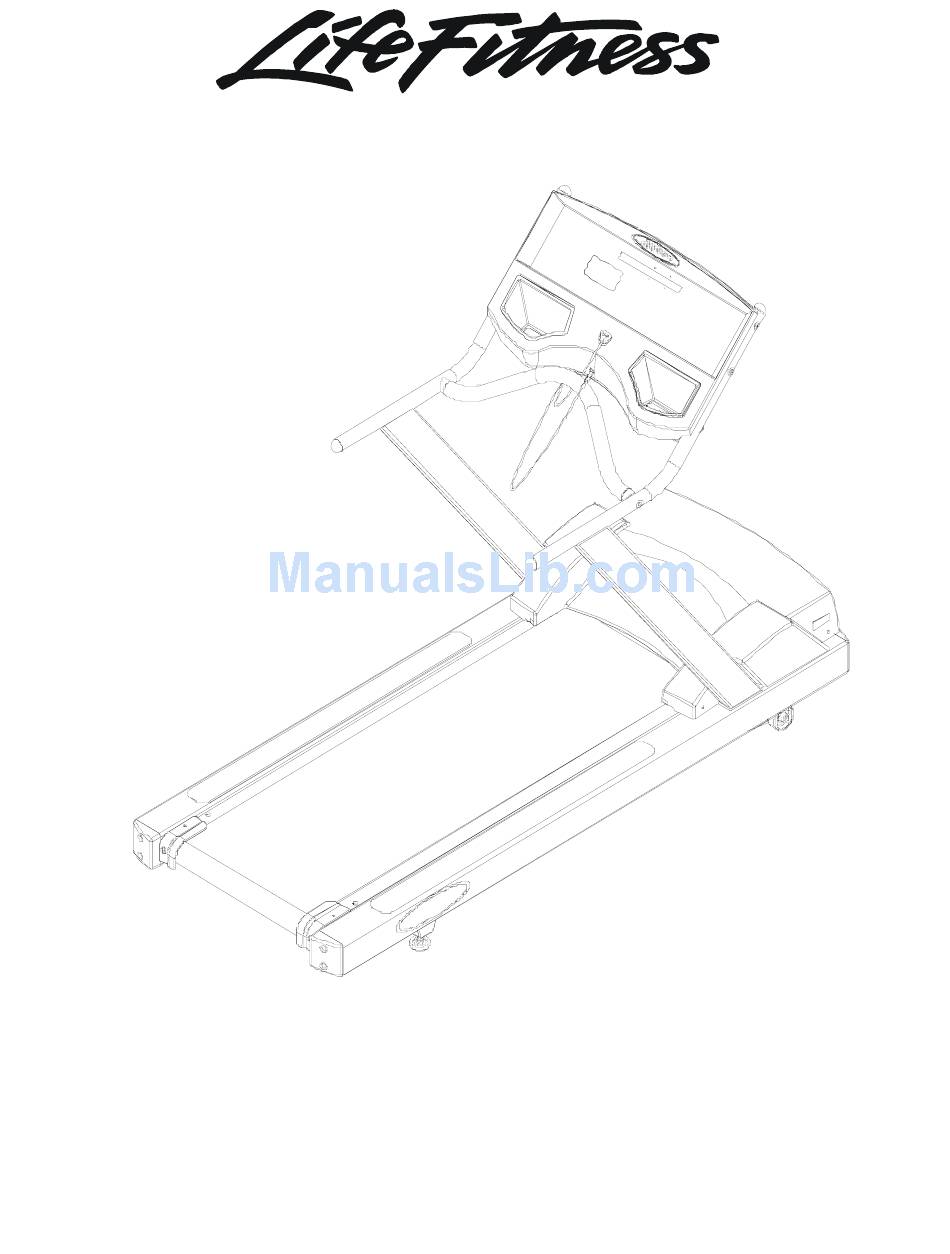

ARCTIC SILVER 90T-XXXX-02 TREADMILL
Customer Support Services
PARTS MANUAL
rev 17 Sep 2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Arctic Silver 90T-XXXX-02 and is the answer not in the manual?

Questions and answers

Related Manuals for Life Fitness Arctic Silver 90T-XXXX-02

Summary of Contents for Life Fitness Arctic Silver 90T-XXXX-02

  • Page 1 ARCTIC SILVER 90T-XXXX-02 TREADMILL Customer Support Services PARTS MANUAL rev 17 Sep 2008...

  • Page 2: Table Of Contents

    ARCTIC SILVER 90T 90T-XXXX-02 Contents S/N ATR100000 and up Miscellaneous ... 3 Console Assembly ... 4 Motor Cover, Leveler and End Caps ... 7 Ergo Bar and Upright Assembly ... 8 Accessory Trays... 9 Belt, Deck, and Rollers ...10 LifeSprings and Anti-static Tinsel...11 Lift Frame Assembly ...12 Lift Motor and Home Switch ...13 Drive Motor Assembly...14...

  • Page 3: Miscellaneous

    ARCTIC SILVER 90T Miscellaneous Operation Language Manual* English M051-00K60-A028 French M051-00K60-A029 Portuguese Spanish Dutch M051-00K60-A030 German Italian Japanese M051-00K60-A031 *If available, operation manuals and assembly instructions are in PDF form only. AK60-00054-0002 Item 0K60-01098-0001 0017-00042-1151 0017-00101-1256 0017-00101-1767 0017-00101-1768 0017-00101-1776 0017-00103-0188 0017-00104-0464 Item 0017-00008-0204...

  • Page 4: Console Assembly

    ARCTIC SILVER 90T Console Assembly (page 1 of 3) Stop Key Tether Assembly AK60-00101-0000 Disc Magnet 0K40-01070-0000 Language ENG+MET GERMAN SPANISH JAPANESE FRENCH ITALIAN DUTCH PORTUGUESE *Some consoles and overlay/bezel assemblies may be unavailable Screw 0017-00101-1275 Overlay/Bezel Console* Assembly* AK60-00112-0001 AK60-00109-0001 AK60-00112-0003 AK60-00109-0003...
  • Page 5 ARCTIC SILVER 90T Console Assembly (page 2 of 3) 6-Pin Connector 2-Pin Connector Receiver Isolator Tube 0K36-01059-0002 Side Foam 0K36-01060-0000 Polar/Emergency Stop Cable Assembly AK60-00043-0000 (Note: The 6-pin connector, connects to the PCB Assy. 2-Pin Connector The 2-pin connector, connects to the Stop Switch connector.) Stop Switch Assembly AK58-00036-0000...
  • Page 6 ARCTIC SILVER 90T Console Assembly (page 3 of 3) Right Wire Cover 0K60-01041-0004 Left Wire Cover 0K60-01041-0003 Rear Decal 0K60-01176-0000 Phillips Screw(9) 0017-00101-1288 C onsole Rear Case 0K60-01072-0001 90T-XXXX-02 S/N ATR100000 and up...

  • Page 7: Motor Cover, Leveler And End Caps

    ARCTIC SILVER 90T Motor Cover, Leveler, and End Caps Motor Cover AK60-00033-0002 Motor Cover Screws(4) 0017-00101-1621 Grommets(4) 0017-00042-0326 End Cap(4) 0K60-01018-0001 End Cap Screws(8) 0017-00101-1776 Grommets(8) 0017-00042-0326 Handrail Bolt 0017-00101-1256 Flat Washer 0017-00104-0464 Locking Nut 0017-00103-0188 Jam Nut 0017-00103-0323 Leveler 0K60-01033-0000 90T-XXXX-02 S/N ATR100000 and up...

  • Page 8: Ergo Bar And Upright Assembly

    ARCTIC SILVER 90T Ergo Bar and Upright Assembly Mounting Screw 0017-00101-1768 Left Upright Assembly AK60-00117-0003 Main Wiring Cable ERGO Bar 0K60-01081-0001 End Cap 0K60-01098-0001 Right Upright Assembly AK60-00116-0003 90T-XXXX-02 S/N ATR100000 and up Mounting Screw 0017-00101-176 LF Bug Medallion Assy AK58-00245-0000...

  • Page 9: Accessory Trays

    ARCTIC SILVER 90T Accessory Trays Accessory Tray RT 0K60-01008-0003 Accessory Tray LT 0K60-01008-0004 Push Rivots(2) 0017-00042-1151 90T-XXXX-02 S/N ATR100000 and up Mounting Screws(4) 0017-00101-1767...

  • Page 10: Belt, Deck, And Rollers

    ARCTIC SILVER 90T Belt, Deck, and Rollers Striding Belt 0K60-01024-0000 (All International) 0K60-01024-0002 (Only 90T-0100 and 90T-0300) Front Roller AK60-00029-0000 Deck Screws(4) 0017-00101-1775 S/N ATR100000 and up Rear Roller 0K60-01011-0000 Deck 0K60-01022-0000 90T-XXXX-02 Decal 0K60-01190-0000...

  • Page 11: Lifesprings And Anti-Static Tinsel

    ARCTIC SILVER 90T LifeSprings and Anti-static Tinsel Tinsel Extension Spring 0017-00009-0901 Tinnerman Clip(4) 0017-00103-0198 Anti-Static Tinsel 0K60-01055-0000 Allen Screw(8) 0017-00101-1652 90T-XXXX-02 S/N ATR100000 and up Tinsel Screw 0017-00101-1193 Lifespring(8) 0K40-01026-0002 Washer(8) 0017-00104-0072...

  • Page 12: Lift Frame Assembly

    ARCTIC SILVER 90T Lift Frame Assembly Wheel Assembly 0K60-01020-0000 0K60-01092-0000 Cotter Pin 0017-00007-0208 Clevis Pin 0017-00007-0271 S/N ATR100000 and up Lift Frame Assembly AK60-00065-0000 90T-XXXX-02 Cotter Pin 0017-00007-0208 Clevis Pin 0017-00007-0270...

  • Page 13: Lift Motor And Home Switch

    ARCTIC SILVER 90T Lift Motor and Home Switch Lift Motor 0K60-01094-0000 (120v) 0K60-01166-0000(220v/60Hz) Cotter Pins 0017-00007-0208 Ground Screw 0017-00101-0883 Ground Washer 0017-00104-0004 Clevis Pins 0017-00007-0215 Ground Screw 0017-00101-0883 90T-XXXX-02 S/N ATR100000 and up Clevis Pins 0017-00007-0214 Home Switch 0017-00032-0195...

  • Page 14: Drive Motor Assembly

    ARCTIC SILVER 90T Drive Motor Assembly Drive Motor Assembly AK60-00081-0001 Motor Brush Kit GK60-00002-0007 Motor; Bleed Cable AK60-00098-0000 Locking Nut(4) 0017-00103-0025 Tensioning Bolt Wide Washer(4) 0017-00101-1283 0K60-01121-0000 Isolation Mounts 0K60-01119-0000 Isolation Mounting Plate 0K60-01123-0000 Motor Mount Spacer 0K60-01120-0000 Drive Belt 0K60-01025-0000 Mounting Nuts(4) 0017-00103-0132...

  • Page 15: Wax Motor, Wax Bag, Wax Nozzle, And Wax Bracket Assembly

    ARCTIC SILVER 90T Wax Motor, Wax Bag, Wax Nozzle, and Bracket Not applicable for models 90T-0100 or 90T-0300 Wax Bag GK60-00002-0001 Wax Spray Nozzle 0017-00009-1138 Wax Motor 0K60-01122-0000 (120v) AK60-00099-0000(220v) Support Wax Bag 0K60-01035-0001 Push Rivets 0017-00042-1151 Wax Bracket Assembly AK60-00017-0000 90T-XXXX-02 S/N ATR100000 and up...

  • Page 16: Speed Sensor And Sensor Wheel Assembly

    ARCTIC SILVER 90T Sensor and Sensor Wheel Assembly (If Equipped) STAMP MUST FACE EACH OTHER Mounting Screws 0017-00101-0776 Backer Plate 0K60-01189-0000 Speed Sensor w/o Bracket AK60-00093-0000 OPTO Speed Sensor w/Bracket AK60-00048-0001 Setscrews(2) 0017-00101-0333 Screw 0017-00101-1017 90T-XXXX-02 S/N ATR100000 and up Drive Motor Pulley 0K60-01097-0000 Chopper Pulley...

  • Page 17: Rear Roller Guards

    ARCTIC SILVER 90T Rear Roller Guards Rear Roller Guards LT 0K60-01085-0002 Washer(2) 0017-00104-0334 Roller Guard Screws(2) 0017-00101-1776 Rear Roller Adjusting Bolt(2) 0017-00101-1714 90T-XXXX-02 S/N ATR100000 and up Rear Roller Guards RT 0K60-01085-0001...

  • Page 18: Dc Controller And On/Off Switch

    ARCTIC SILVER 90T DC Controller and On/Off Switch DC Controller Top Mounting Screws(2) 0017-00101-0168 Lock Washers(2) 0017-00104-0460 DC Controller Bottom Mounting Screws(2) 0017-00101-0162 ON/OFF Switch 0017-00032-0198 90T-XXXX-02 S/N ATR100000 and up DC Controller GK60-00002-0002 100-120 Volts/50-60 Hz GK60-00002-0003 200+ Volts/50-60 Hz...

  • Page 19: Line Cord And Line Filter

    ARCTIC SILVER 90T Line Cord and Line Filter Strain Relief 0017-00042-1150 Line Cord AK60-00067-0000 Domestic 120/60 0017-00003-0696 220v/50Hz Continental 0017-00003-0890 220v/50Hz UK 0017-00003-0951 220v/60Hz U.S. 0017-00003-0996 230v/50Hz Australian Screw(2) 0017-00101-0162 90T-XXXX-02 S/N ATR100000 and up Line Filter Assembly (20A) 0017-00003-1015 Line Filter Assembly (220v, 10Amp) 0017-00003-0898...

  • Page 20: Cables

    ARCTIC SILVER 90T 90T-XXXX-02 Cables S/N ATR100000 and up...
