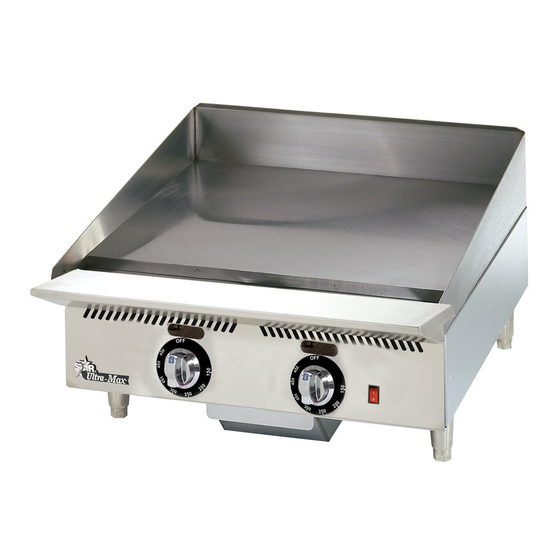

Star Ultra-Max 824MA Specifications

S t a r M a n u f a c t u r i n g
Ultra-Max
Models
Features/Benefits:
Manual control valve for the budget minded operator and for the
H
experienced chef that prefers the feel of a manual control.
Available in 24, 36, 48, 60 and 72 inch widths to meet your space
H
and volume requirements.
NEW longer lasting, heavy-duty metal knobs.
H
Ultra-Max high capacity 24" deep cooking surface is ideal for high
H
volume operations.
Highly polished 1" thick steel plate for superior heat distribution,
H
fast recovery and energy efficient operation.
Custom designed 30,000 BTU steel burner every 12" of cooking
H
surface provides superior cooking performance.
NEW heavy-duty burner with dual row porting.
H
Heavy-duty all-weld body construction with stainless steel front,
H
side panels, bull nose and splash guard.
Cool to the touch stainless steel bull nose provides a safe and
H
comfortable work zone.
Heavy-duty design with stylishly curved, ergonomically angled
H
front panel providing easy access and viewing of controls.
Standing pilot light for consistent performance.
H
Spatula wide 3-1/2" front grease trough and grease chute for
H
easier cleaning.
Large 6 quart stainless steel grease drawer.
H
Extra-heavy 4" adjustable legs to fit your countertop needs.
H
Floor model stands available for free standing units. Optional
H
casters available.
Cool-to-the-touch stainless steel bull nose front provides knob
H
protection and comfortable work zone.
Applications:
Ultra-Max manual griddles are the perfect match for the budget mind-
ed operators. For breakfast, lunch or dinner, the Ultra-Max manual con-
trol griddles out-perform the competition.
Construction:
Ultra-Max griddles feature 1" thick highly polished steel griddle plate
with 5" tapered stainless steel splash guard and 3-1/2" wide front
access grease trough with 6 quart grease drawer capacity. Models
860MA and 872MA house two 6 quart grease drawers. Includes a
30,000 BTU aluminized steel burner every 12" of width controlled by
manual control valve with standing pilot light, 3/4" N.P.T. male gas con-
nection with convertible pressure regulator, and 4" adjustable legs.
Warranty:
Ultra-Max gas griddles are covered by Star's
labor warranty.
Star Manufacturing - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800
MaNUal GaS GrIDDlES
®
824Ma, 836Ma, 848Ma, 860Ma & 872Ma
THREE YEAR
Phone: (314) 678-6303 - FAX: (314) 781-5445 - www.star-mfg.com
Model 836MA
parts and
S251/1053
