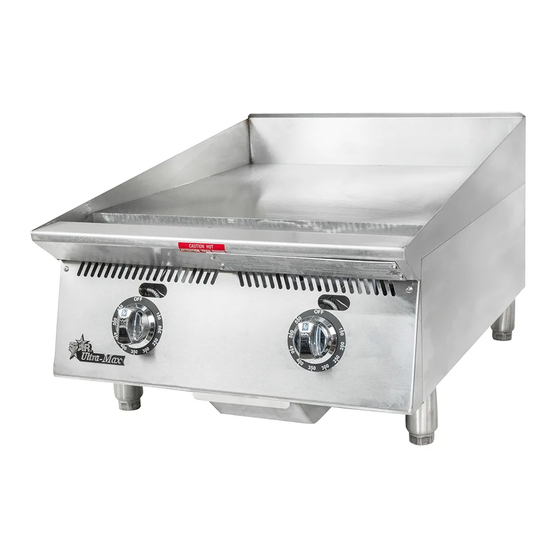

Star Ultra-Max 824ta Specification

Star Ultra-Max 824ta Specification

Mechanical snap action gas griddles
Hide thumbs Also See for Ultra-Max 824ta:

Advertisement

Quick Links

S t a r M a n u f a c t u r i n g
Ultra-Max
Models
Features/Benefits:
NEW mechanical snap action control for better turn-down and
H
temperature regulation.Thermostatic provides accurate tempera-
ture rated from 150° to 550°F within +/- 20 degrees of set point
while providing accurate low temperature performance with snap
action control to prevent temperature overshoot.
Unique internal plate sensor accurately measures the temperature
H
of the griddle plate 3/16" from the cooking surface for instant
response to surface temperature change and fast recovery.
Available in 24", 36", 48", 60" and 72" widths to meet your space
H
and volume requirements.
Ultra-Max high capacity 24" deep cooking surface is ideal for high
H
volume operations.
NEW longer lasting, heavy-duty metal knobs.
H
All stainless steel construction and front panel for long lasting
H
attractive appearance and ease of cleaning.
Highly polished 1" thick steel plate for superior heat distribution,
H
fast recovery and energy efficient operation.
Custom designed steel 30,000 BTU burner every 12" of cooking
H
surface provides superior cooking performance.
Heavy-duty construction with all welded body construction and
H
stainless steel front, side panels, bull nose and splash guard.
Ergonomically advanced front panel providing easy access and
H
viewing of controls.
Cool-to-the-touch stainless steel bull nose front provides knob
H
protection and comfortable work zone.
Standing pilot light for consistent performance.
H
Spatula wide 3-1/2" front grease trough and grease chute for
H
easier cleaning.
Large 6 quart stainless steel grease drawer (2 drawers on 50"
H
and 72" models).
Gas convertible in the field conversion kit supplied. Units are
H
shipped Natural Gas.
Extra-heavy 4" adjustable legs to fit your countertop needs.
H
Floor model stands available for free standing unit. Optional
H
casters available.
Cool-to-the-touch stainless steel bull nose front provides knob
H
protection and comfortable work zone.
Applications:
Ultra-Max mechanical snap action thermostat gas griddles will exceed your
food service operations expectations. Designed for high performance and relia-
bility. Ultra-Max griddles will provide years of trouble free operations.
Construction:
Ultra-Max mechanical snap action griddles feature 1" thick highly polished steel
griddle plate with 5" tapered stainless steel splash guard and 3-1/2" wide front
access grease trough with 6 quart grease drawer capacity. Includes a 30,000
BTU aluminized steel burner every 12" of width, 3/4" N.P.T. male gas connec-
tion with convertible pressure regulator, and 4" adjustable legs.
Warranty:
Ultra-Max gas griddles are covered by Star's
warranty.
Star Manufacturing - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800
®
Mechanical snap action
Gas GriDDles
824ta, 836ta, 848ta, 860ta & 872ta
THREE YEAR
Phone: (314) 678-6303 - FAX: (314) 781-5445 - www.star-mfg.com
parts and labor
836TA
S203/1053

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ultra-Max 824ta and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Star Ultra-Max 824ta

  • Page 1 4" adjustable legs. Warranty: Ultra-Max gas griddles are covered by Star’s THREE YEAR parts and labor warranty. Star Manufacturing - 10 Sunnen Drive - P.O. Box 430129 - St. Louis, MO 63143-3800 S203/1053 Phone: (314) 678-6303 - FAX: (314) 781-5445 - www.star-mfg.com...
  • Page 2 UL Gas Fired Listed for U.S. and Canada and UL classified to NSF Standard 4 Sanitation. Printed in the U.S.A. Due to periodic changes in designs, methods, procedures, policies and regulations, the specifications contained in this sheet are subject to change without notice. While Star Manufacturing exercises good faith efforts to provide information that is accurate, we are not responsible for errors or omissions in information provided or conclusions reached as a result of using the specifications.
