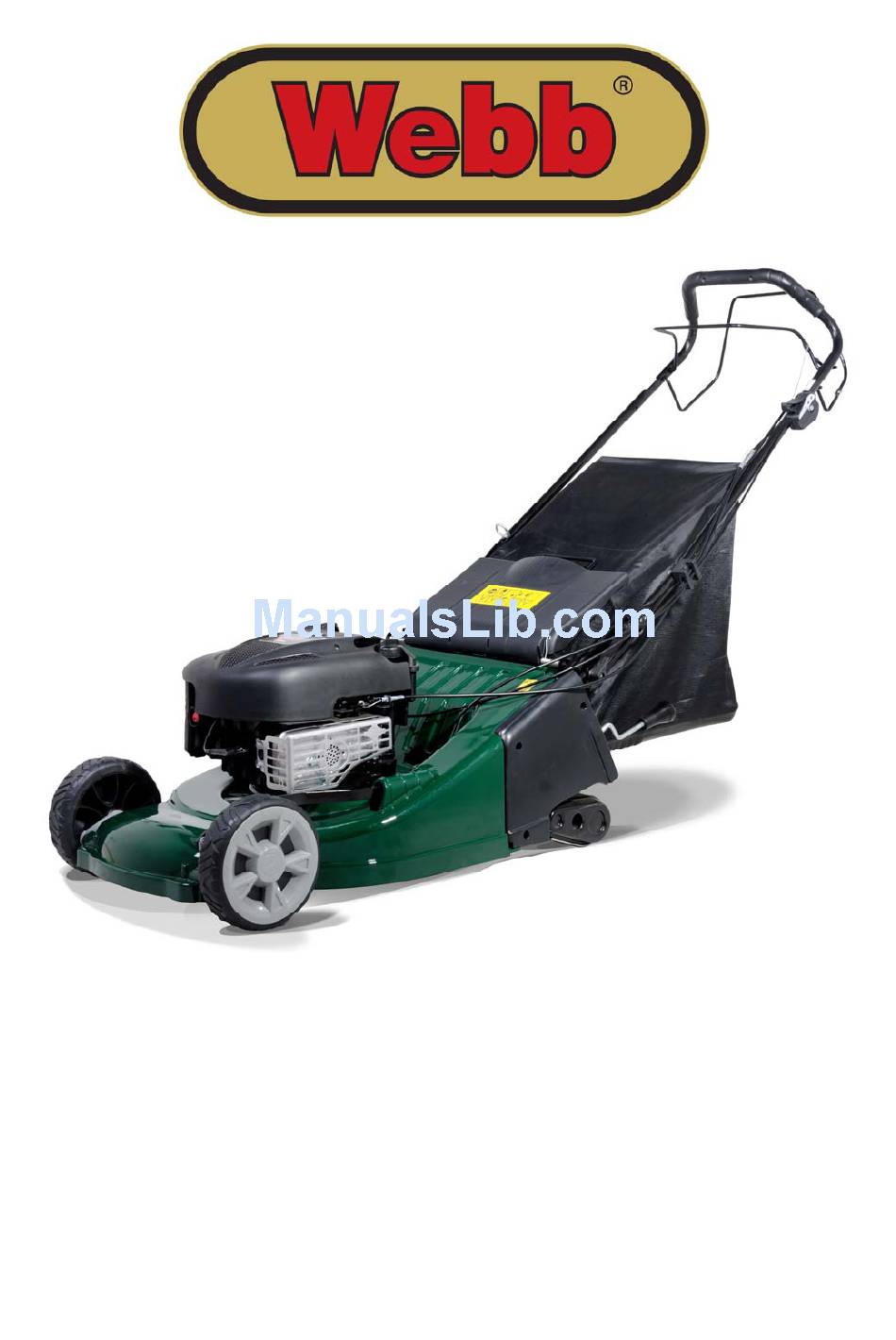

- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL LAWNMOWER - WERR19 Spares & Support: 01793 333212 www.webblawnmower.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 10/10/2012 v1...
- Page 2 2 User’s manual...
-
Page 3: Table Of Contents
Warranty registration card......................19-20 Webb products are monitored and enhanced on an on-going basis to comply with changing technical standards and requirements. As a result, Webb reserves the right to alter design and specifications at any time without prior notice. User’s manual... - Page 4 Inside this guide you will find out all you need to know to correctly operate your new Webb mower. To ensure that you use your new mower safely and get the best results possible, please read all of the safety and operating instructions carefully before using your lawnmower.
-
Page 5: Mower Features
Mower features Drive lever Spark plug Operator presence control lever Exhaust Throttle control Oil filter and dipstick Rear deflector Roller Height adjustment lever Starter rope Fuel tank Grass collection bag Air filter User’s manual... -
Page 6: Tips On Mower Safety
Tips on mower safety WARNING! The information contained within this safety section is extremely important. Personal injury to the user and to others may result if this section is not read and acted upon at all times. 1. Before starting your mower inspect it carefully to ensure that there are no loose parts and that it is in good working order. - Page 7 18. Do not smoke when filling the fuel tank, using the machine, or when petrol is in the immediate area. And never use or store the mower near a naked flame. 19. Webb recommends that you wear a safety helmet, ear protectors, safety goggles and safety boots when using a lawnmower. These are available on 01793 333212.
-
Page 8: Before You Begin
Before you begin. WARNING! The following procedures must be carried out before you start the engine of your lawnmower. 1. Fill oil sump with oil. The mower is NOT supplied with oil in the engine, add 569ml SAE30 oil before starting the engine for the first time. - Page 9 2. Fill fuel tank with unleaded petrol. Petrol is highly flammable so extreme caution must be taken when handling it. Always store petrol in approved containers and you must ensure that you use fresh petrol that is less than three months old. Do not mix oil with petrol.
-
Page 10: Cutting Height Adjustment
Cutting height adjustment. WARNING! Turn mower off before adjusting cutting height lever. Your lawnmower’s height adjustment is positioned on the rear left side. There is a single 6-position lever that adjusts all four wheels at the same time. The lower the level, the shorter the cut. For very thick or moist grass, you should select a higher setting than usual to avoid clogging and stalling the lawnmower under the extra cutting load. -
Page 11: Starting The Engine
Starting the engine. WARNING! Keep hands, feet, and clothing well away from moving parts, the exhaust, and the engine cowling. Refer to ‘Tips on mower safety’ on pages 6 and 7 for more information. 1. Make sure that your mower is on a safe, flat area (a paved area or path is ideal –... -
Page 12: Basic Maintenance Made Easy
Basic maintenance made easy. WARNING! If your mower is not serviced correctly, you could reduce your mower’s ability to operate and void warranty. 1. Spark plug. Firstly, wait until the engine has cooled before disconnecting the spark plug cover and then remove the spark plug with the box spanner supplied. - Page 13 ° 3. Cleaning ABS deck often. As the ABS material can be marked by petrol, please clean the deck immediately whenever you find petrol on the deck or before storing. User’s manual...
-
Page 15: Fast Trouble Shooting
Refer below to the list of potential problems you may encounter, along with suggested remedies. For servicing and all warranty work, contact your local Authorised Webb Dealer. Problem Likely cause... -
Page 16: Warranty Conditions
The warranty does not affect your statutory rights or remedies as outlined in applicable consumer legislation. Webb provides an express warranty for this product for a period of 2 years from your original purchase date with the exception of commercial-use which is for a period of 90 days. - Page 17 Parts Diagram...
- Page 18 WERR19 Spare Part List Model English Name Qty No. Model English Name WE107-01 BS625 Engine WE107-60 Bolt M6×30 WE107-02 Screw M6×16 WE107-61 Screw M6×52 WE107-03 Nut M6 WE107-62 Drive and OPC cable WE107-04 Double-end bolt WE107-63 Throttle control unit WE107-05...
-
Page 19: Ec Declaration Of Conformity
EC Declaration of Conformity We, Importer Handy Distribution SN3 4NS Declare that the product Model: WERR19 Complies with the following directives: 2006/42/EC- Machinery Directive 2004/108/EC- Electromagnetic Compatibility Directive 2000/14/EC amended by 2005/88/EC- Noise Emission in the Environment by Equipment for Use Outdoors Directive. -
Page 20: Note
Notes User’s manual...
