Page 1: Parts List

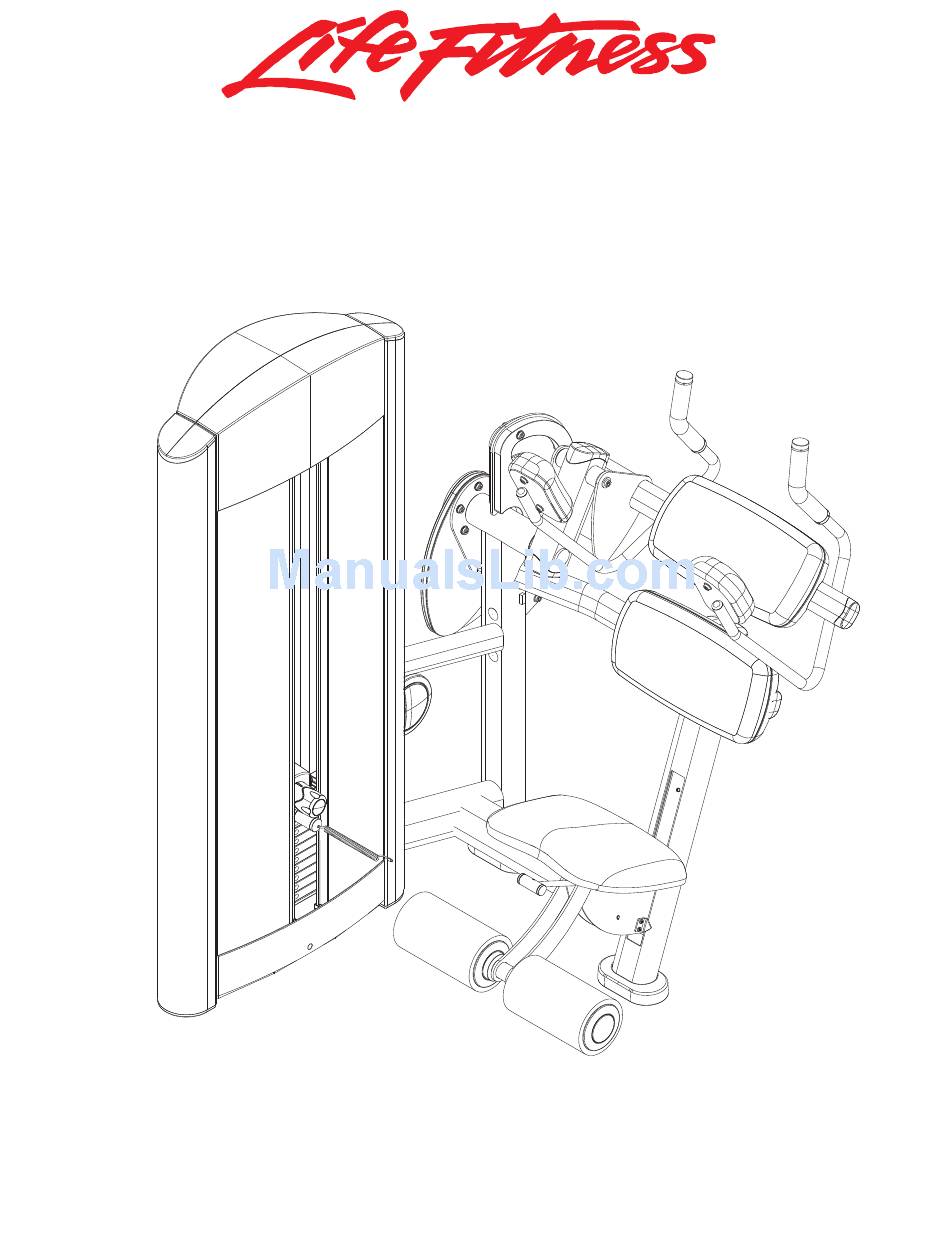

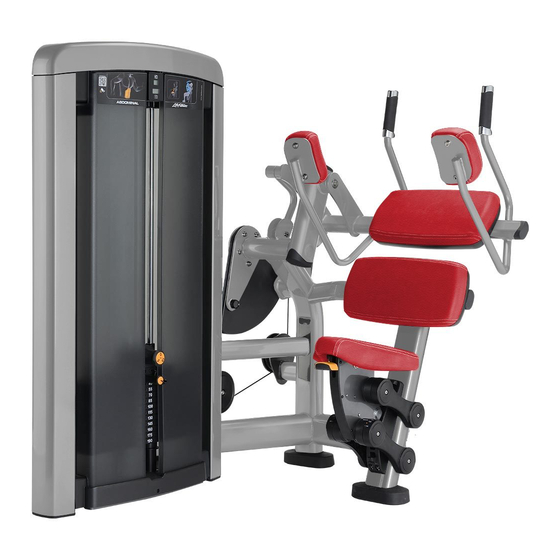

SIGNATURE SERIES FZAB ABDOMINAL Customer Support Services PARTS LIST Page 1... -
Page 2: Table Of Contents
Contents ________________________________________ COMPONENT ASSEMBLY COMPONENT ASSEMBLY II COMPONENT ASSEMBLY LEGEND FZ SEAT CARRIAGE ASSEMBLY FZAB ADJUSTER HANDLE ASSEMBLY MID-9 TOWER ASSEMBLY PLASTIC TOWER ASSEMBLY MID-9 WEIGHT STACK ASSEMBLY 5 LB INCREMENT WEIGHT ASSEMBLY 10 LB INCREMENT WEIGHT ASSEMBLY 15 LB INCREMENT WEIGHT ASSEMBLY... -
Page 3: Fzab Abdominal
FZAB ABDOMINAL COMPONENT ASSEMBLY ________________________________________ SEE PAGE 5 FOR LEGEND Page 3... -
Page 4: Component Assembly
FZAB ABDOMINAL COMPONENT ASSEMBLY II ________________________________________ SEE PAGE 5 FOR LEGEND Page 4... -
Page 5: Component Assembly Legend
FZAB ABDOMINAL COMPONENT ASSEMBLY LEGEND ________________________________________ ITEM NO PART NO DESCRIPTION 7491801 WLDMT, FZAB FRAME 7492601 WLDMT, FZAB PIVOT ARM 7764001 WLDMT, FZAB WORK ARM 7493601 WLDMT, FZAB CAM SPPRT 7329101 PLATE, FZ, CAM COVER 7493801 WLDMT, FZAB SEAT SUPPORT... -
Page 6: Fzab Abdominal
FZAB ABDOMINAL FZ SEAT CARRIAGE ASSEMBLY - 7657501 ________________________________________ ITEM NO PART NO DESCRIPTION 7626901 WLDMT, FZ SEAT CARRIAGE 7331501 ROLLER, SEAT CARRIAGE 3236801 NUT, M10 HEX NYLOCK SS 3235701 SPRING, GAS 150N 7414301 STUD, M10 BALL END M10 X 1.5... -
Page 7: Fzab Adjuster Handle Assembly
FZAB ABDOMINAL FZAB ADJUSTER HANDLE ASSEMBLY - 7778101 ________________________________________ ITEM NO PART NO DESCRIPTION 7777695 WLDMT, FZAB ADJ HANDLE SHADOW GRAY 7331801 LINK, ADJUSTER 7331601 PIN, INDEX 7407501 PIN, LINK 3232401 RING, RETAINING, EXTERNAL 7287901 HANDLE, ADJUSTER 3110010 ROLL PIN, 1/8 X 7/8... -
Page 8: Mid-9 Tower Assembly
FZAB ABDOMINAL MID-9 TOWER ASSEMBLY - 7420301 ________________________________________ ITEM NO PART NO DESCRIPTION 7420001 ASSY, WEIGHT STACK MID-9 7326301 CAP, D-TUBE-BTM 7419801 ASSY, TOWER PLASTICS-MID Page 8... -
Page 9: Plastic Tower Assembly
FZAB ABDOMINAL PLASTIC TOWER ASSEMBLY - 7419801 ________________________________________ ITEM NO PART NO DESCRIPTION 7318601 COVER, TOWER- TOP FRONT 7318701 COVER, TOWER- TOP REAR 7318801 COVER, TOWER- BOTTOM FRONT 7318901 COVER, TOWER- BOTTOM REAR 3236501 M4 X 0.7 PHL PAN MS ST ZN... -
Page 10: Mid-9 Weight Stack Assembly
FZAB ABDOMINAL MID-9 WEIGHT STACK ASSEMBLY - 7420001 ________________________________________ ITEM NO PART NO DESCRIPTION 7350601 ASSY, HEAD PLATE (9) 7328401 WEIGHT PLATE, 20 LB 7327601 ASSY, INCREMENT WT-5LB 7327701 ASSY, INCREMENT WT-10LB 7327801 ASSY, INCREMENT WT-15LB 7351001 SPACER, INC WT STACK 7621101 RETAINER, GUIDE ROD-TOP 7328602 GUIDE ROD,.75 OD SOLID X 53.50... -
Page 11: Lb Increment Weight Assembly
FZAB ABDOMINAL 5 LB INCREMENT WEIGHT ASSEMBLY - 7327601 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328001 BRKT, INCREMENT WT - 5 LB 3236202 SCREW, M10 X1.5 25MM Page 11... -
Page 12: Lb Increment Weight Assembly
FZAB ABDOMINAL 10 LB INCREMENT WEIGHT ASSEMBLY - 7327701 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328101 BRKT, INCREMENT WT - 10 LB 3236202 SCREW, M10 X1.5 25MM Page 12... -
Page 13: Lb Increment Weight Assembly
FZAB ABDOMINAL 15 LB INCREMENT WEIGHT ASSEMBLY - 7327801 ________________________________________ ITEM NO. QTY. PART NO. DESCRIPTION 7968501 ASSY, FZ INC WEIGHT 5LB 7328201 BRKT, INCREMENT WT - 15 LB 3236202 SCREW, M10 X1.5 25MM Page 13... -
Page 14: Head Plate Assembly
FZAB ABDOMINAL HEAD PLATE ASSEMBLY - 7350601 ________________________________________ ITEM NO PART NO DESCRIPTION 7326701 HEAD PLATE 7347801 STEM, 9 PLATE 3236001 BUSHING, SPRING PIN 7327201 WLDMT, INCREMENT WT PIN 6411801 SPRING, POP PIN 3/8 DIA X 2-3/4 7326101 KNOB, INC WT SELECTOR... -
Page 15: Image
FZAB ABDOMINAL IMAGE ________________________________________ Page 15...
