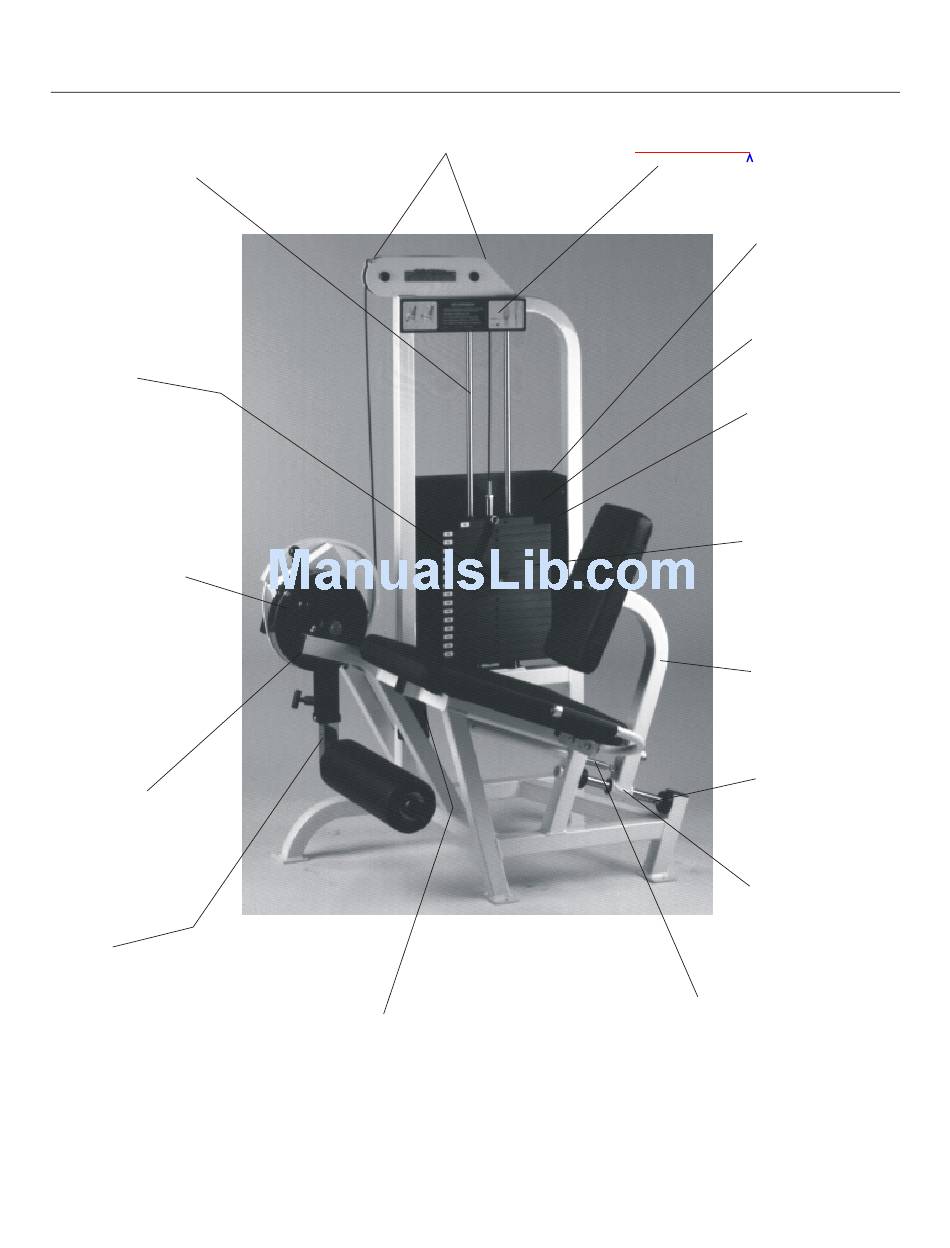

STRENGTH 9000 SERIES TRAINING EQUIPMENT
SL20/25 Leg Extension
Guide Rods (48")
0017-00009-0933
Note: Get length from
Customer
Selector Pin
0K50-A1102-0000
Lanyard Cord
0017-00009-0938
(Redesigned Tibia
Adjustment Mech
S/N 064574-Above
See Last 2 Pages)
End Cap (4)
0017-00042-0958
Kicker
AK50-S0003-0000
Pulley (2)
0017-00009-0977
Add-On Weight
7.5 lbs
0K50-P0343-0000
Placard
SL25-PL000-0001
1
Shield Trim
0017-00042-0989
Warning Label
M051-00260-A000
Weight Stack Shield
0K50-E0001-0000
Decal
M051-00270-A000
Side Shields
SK50-S0047-0000
Weight Stack (255 lbs)
AK50-WS003-0000
Seat Back (S 20)
L
SL20-S0009-0000
Rubber Donut(2)
0017-00101-1368
Linear Bearing
0017-00006-0179
Set Screw(3)
0017-00101-1405
Spring (14.5")
0017-00009-0992
Advertisement
Related Manuals for Life Fitness SL20
Summary of Contents for Life Fitness SL20
- Page 1 STRENGTH 9000 SERIES TRAINING EQUIPMENT SL20/25 Leg Extension Guide Rods (48”) 0017-00009-0933 Note: Get length from Customer Selector Pin 0K50-A1102-0000 Lanyard Cord 0017-00009-0938 (Redesigned Tibia Adjustment Mech S/N 064574-Above See Last 2 Pages) End Cap (4) 0017-00042-0958 Kicker AK50-S0003-0000 Add-On Weight...
-
Page 2: Internal Components
STRENGTH 9000 SERIES TRAINING EQUIPMENT SL20/25 Leg Extension Black Cap(11) 0017-00042-0969 Weight Stickers M051-00262-A000 (15-300 LBS.) M051-00265-A000 (7-140 KG.) Pull Pin Kit SK50-S0001-0000 Pull Pin Kit (Range L) SK50-S0008-0000 Pillow Block (2) 0017-00006-0203 Red Rubber Cap (2) 0017-00042-0952 T-Knob AK50-S0005-0000... - Page 3 STRENGTH 9000 SERIES TRAINING EQUIPMENT SL20/25 Leg Extension 0017-00103-0217 Washer (2) 0017-00104-0352 Bolt 0017-00101-1416 Bearing 0017-00006-0178 Bearing Retainer (not shown) 0017-00009-0935 Under Seat Bearing Housing Allen Cap Screw (2) 0017-00101-1474 Set Screws 0017-00101-1405 Bearing Housing 0K50-P0140-0000 Bayonet 0K50-P101A-0000 Bearing 0017-00006-0178...
- Page 4 STRENGTH 9000 SERIES TRAINING EQUIPMENT SL20/25 Leg Extension - Range Limiter Polished Hub SL25-S0006-0000 SL35-S0005-0000 S 45 AK50-S0012-0000 ST25-S0006-0000 Pull Pin Kit SK50-S0008-0000 Shaft Collar 0017-00009-0942 3-1/4” Bolt 0017-00101-1425 Washer 0017-00104-0313 Cap Washer 0017-00104-0368 3/8” Nut 0017-00103-0229 Star Washer 0017-00009-0937...
- Page 5 Bulletin # Revision Original ST01041701 Subject: Redesigned Tibia Adjustment Mechanism Serial Number: SL20 SN064553, SL25 SN064574, SL30 SN070587, SL35 SN070857, SL40 SN064555, SL45 SN064712, ST20 SN070509, and ST25 SN070642 15 min Time Required: Internal Classification: A redesigned tibia adjustment mechanism is factory installed on models and serial numbers as indicated above.
- Page 6 0017-00072-0136 Description ¾” Retaining Clips ¾” Grooved Pins ¾” Bushings 7/16” Offset Pin (SL25 and SL35) Kicker Link (SL40 and SL45) Kicker Link (SL20 and SL25) 7/16” Grooved Pin 7/16” Bushings 7/16” Retaining Clips Handle Pin Spring Pull Pin Bracket...
