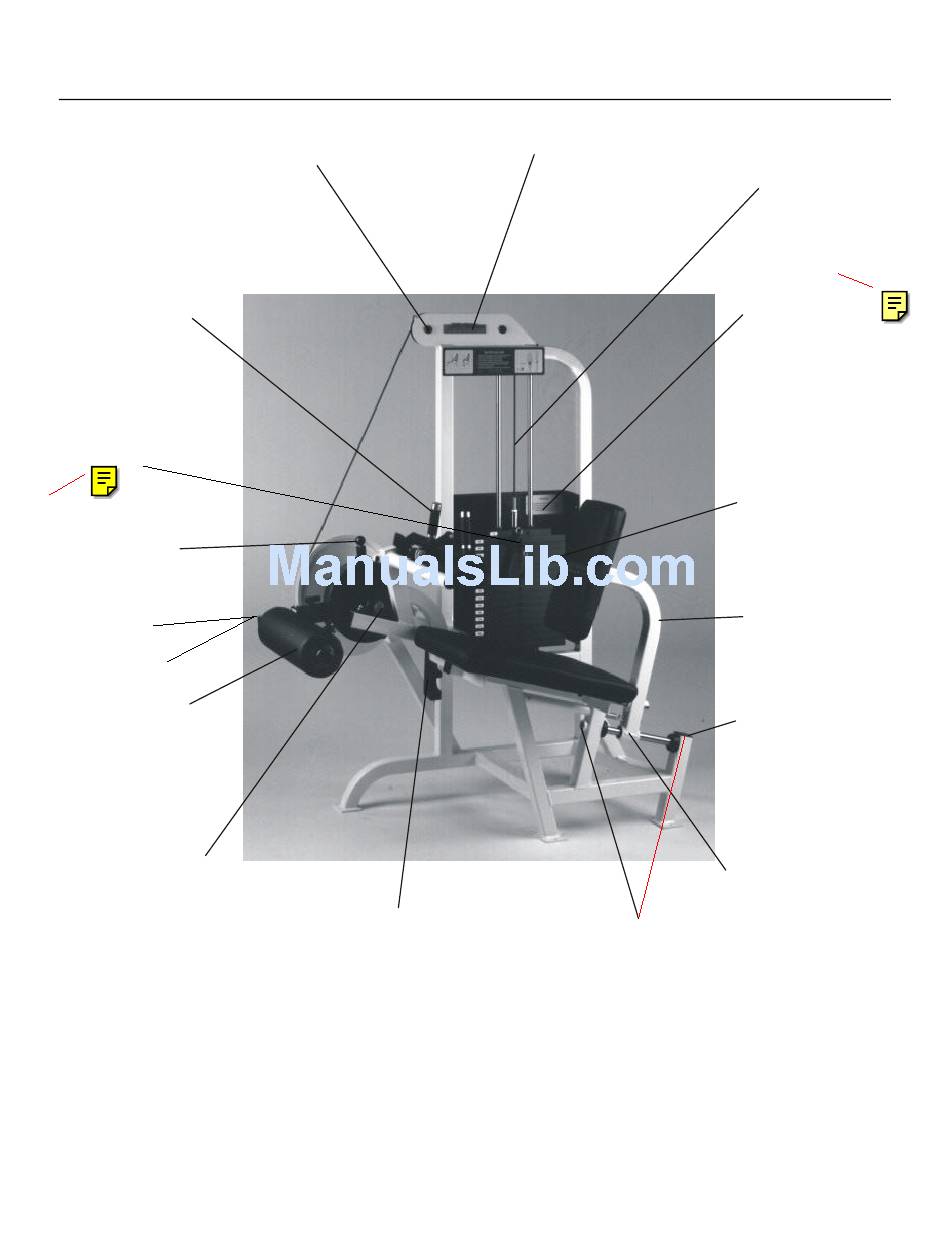

STRENGTH 9000 SERIES TRAINING EQUIPMENT
SL40/45 Seated Leg Curl
Rubber Grip
0017-00042-0995
Grip Ring (2)
0K50-P0316-2000
Grip Cap (2)
0K50-P0315-2000
Set Screw
0017-00101-1406
Weight Stack Pin
SK50-S0151-0000
new
Pull Pin Kit
SK50-S0001-0000
Pull Pin Kit (Range L)
SK50-S0008-0000
Stainless SL40 kicker #3
SK50-S0142-0000
Stainless SL45 kicker #3R
SK50-S0143-0000
(Redesigned Tibia
Adjustment Mech
S/N 064712-Above
See Last Two Pages for more deltails
Pillow Block (2)
0017-00006-0203
Red Rubber Cap (2)
0017-00042-0952
Black Cap(10)
0017-00042-0969
Add-On Weight
0K50-P0343-0000
Label (2)
0K50-01001-0000
7.5 lbs
Set Screw (2)
0017-00101-1434
(1 at each shaft end)
1
Cable
AK50-CL109-0001
new
Warning Label
M051-00335-A000
Weight Stack (255 lbs)
AK50-WS014-0000
Seat Back
SL40-S0013-0000
End Cap (5)
0017-00042-0958
Linear Bearing
0017-00006-0178
