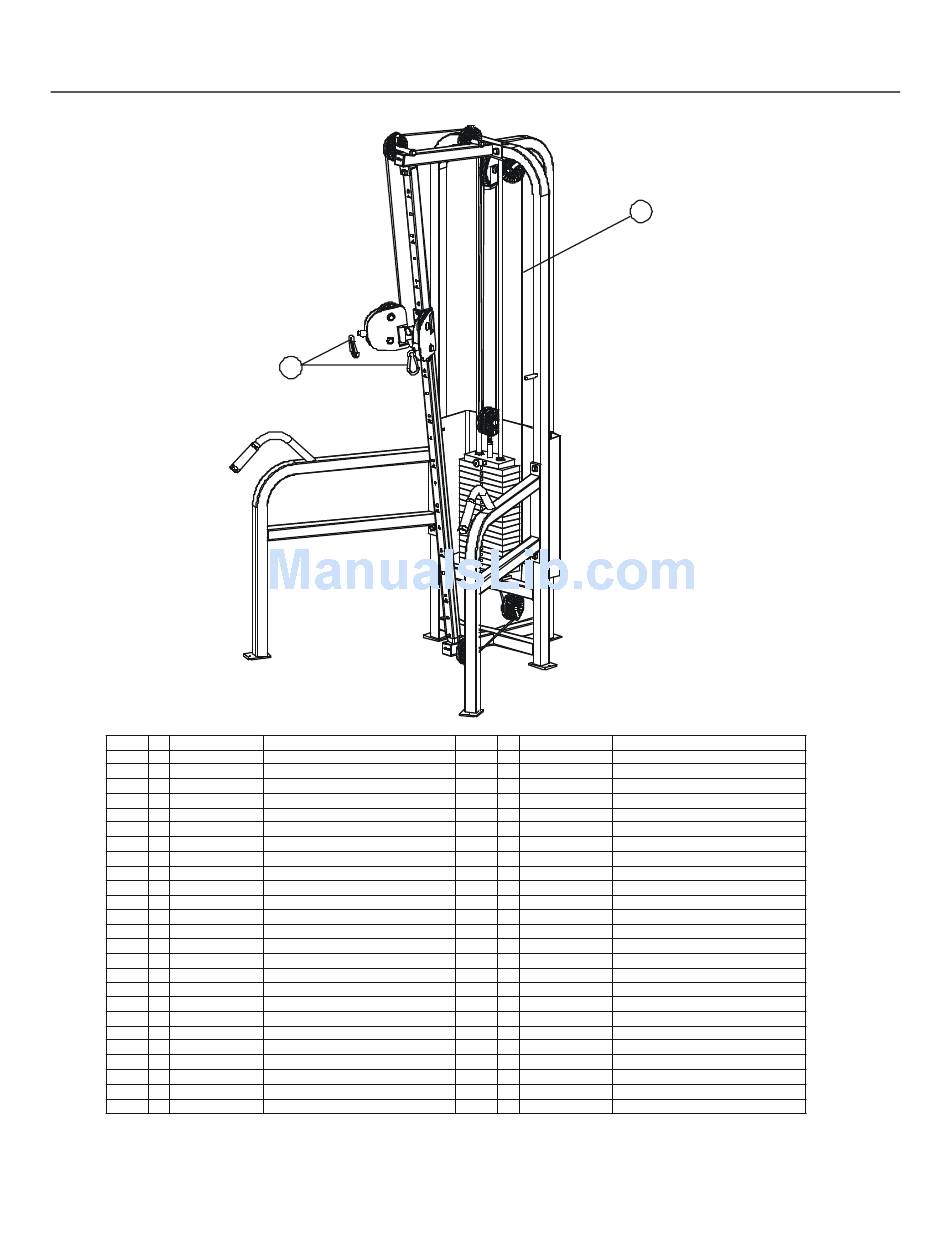

STRENGTH 9000 SERIES TRAINING EQUIPMENT
SM11 Free Standing Adjustable Pulley
ITEM NO. QTY. PART NO.
1
1 SM11-S0001-0000
2
1 SM11-S0002-0000
3
1 SM00-M0001-0000
4
1 SM11-S0003-0000
5
1 SM11-S0004-0000
6
1 SM22-S0012-0000
7
1 SM11-A0002-0000
8
1 0 0017-00009-0977
9
2 SM11-M0008-0000
10
2 0017-00042-0993
11
1 AK50-WS013
12
1 SM22-S0011-0000
13
2 0K50-E0040
14
6 0017-00103-0212
15
1 0K50-E0032
16
5 0K50-P0519-1000
17
1 0K50-P0532-0000
18
2 SM00-S0044-0000
19
2 0017-00009-1075
20
2 0017-00101-1416
21
3 8 0017-00104-0368
22
3 8 0017-00042-0969
23
1 7 0017-00104-0313
24
2 0 0017-00103-0217
25
7 0017-00101-1408
NOTE: Use parts list above to indentify parts on next page.
49
DESCRIPTION
SM11 WELDED FRAME ASSY
TOP PULLEY SUPPORT
JUNGLE SS ADJ PULLEY
RT SIDE STAND -
LT SIDE STAND -
TOP PLATE, RT - WELDED ASSY
SELECTOR ASSY - SM11
4-1/2" PULLEY W/ 1" HUB
GUIDE ROD - SM11
WEIGHT STACK DONUT 1" THICK
190 LBS WEIGHT STACK
FLTG DBL PULLEY, MALE -
3.5" WIDE SIDE SHIELD
NUT 10-24 NUTSERT ST ZN
9000 PLASTIC SHIELD
CABLE GUARD
PULLEY GUARD
ADJUSTABLE PULLEY HSG. SUB
3-1/2" PULLEY W/1" HUB
3/8-16 X 2.00 UNS HEX BLT ST ZN
CAPLUG WASHER; RHW 205
CAPLUG CAP; RH-20
WSH 375 - ID 13/32 OD 13/16 FL-D ST ZN
NUT 3/8 - NYLOC; THIN NY NO
3/8 - 16 X 44 UNS HEX BLT G5 ZN
50
ITEM NO. QTY. PART NO.
DESCRIPTION
26
5 0017-00101-1413
3/8 - 16 X 28 UNS HEX BLT G5 ZN
27
1 0017-00009-0947
2-1/4" NYLON PEG COVER
28
2 0K50-P0315-4000
END CAP
29
2 0K50-P0316-4000
GRIP RING
30
2 SM11-HANDLE GRIP
RUBBER GRIP
31
2 0017-00042-0958
2X2 BLACK PLASTIC CAP
32
2 0017-00101-1422
3/8" X 3" BOLT
33
1 0017-00101-1420
3/8 - 16 X64 UNS HEX BLT G5 ZN
34
1 0017-00101-1417
3/8" X 2.5" BOLT
35
1 0017-00101-1521
1/4 - 20 X 40 HXS BUT BLT G8 ZN
36
2 0017-00104-0349
1/4 SPACER
37
1 0017-00103-0227
NUT 1/4 - 20 THIN NYLOC D ST ZN
38
2 0017-00042-0967
3/4 I.D. BLACK PLASTIC ROD CAP
39
1 0017-00103-0234
NUT 9/16 - 12 JAM D ST ZN
40
1 0017-00042-1032
RUBBER STOP
41
8 0017-00101-1616
10-24 X8 PHL PAN MS ST ZN
42
2 0017-00103-0228
NUT 10 -24 NYLOC D ST ZN
43
2 0017-00101-1587
SHIELD RIVET
44
2 0017-00101-1598
3/8-16 X88 UNS HEX BLT G5 ZN
45
1 0017-00042-0947
1-3/4" X 1-3/4" 11 GAUGE PLASTIC CAP
46
4 0017-00104-0363
WSH 4375 4375-.750-063 FLAT ZN
47
2 0017-00101-1440
7/16-14X64 UNS HEX BLT G8 ZN
48
2 0017-00103-0241
NUT 7/16-14 THIN NYLOC D ST ZN
49
2 0017-00100-0181
SNAP RING; 3/8" CARRIBEANER
50
1 AK50-CL422-0813
SM11 CABLE ASSY
