Life Fitness ST20 Assembly & Parts List
Life Fitness ST20 Assembly & Parts List

Life Fitness ST20 Assembly & Parts List

Strength 9000 series low back extension tibia adjustment mechanism

Advertisement

STRENGTH 9000 SERIES TRAINING EQUIPMENT

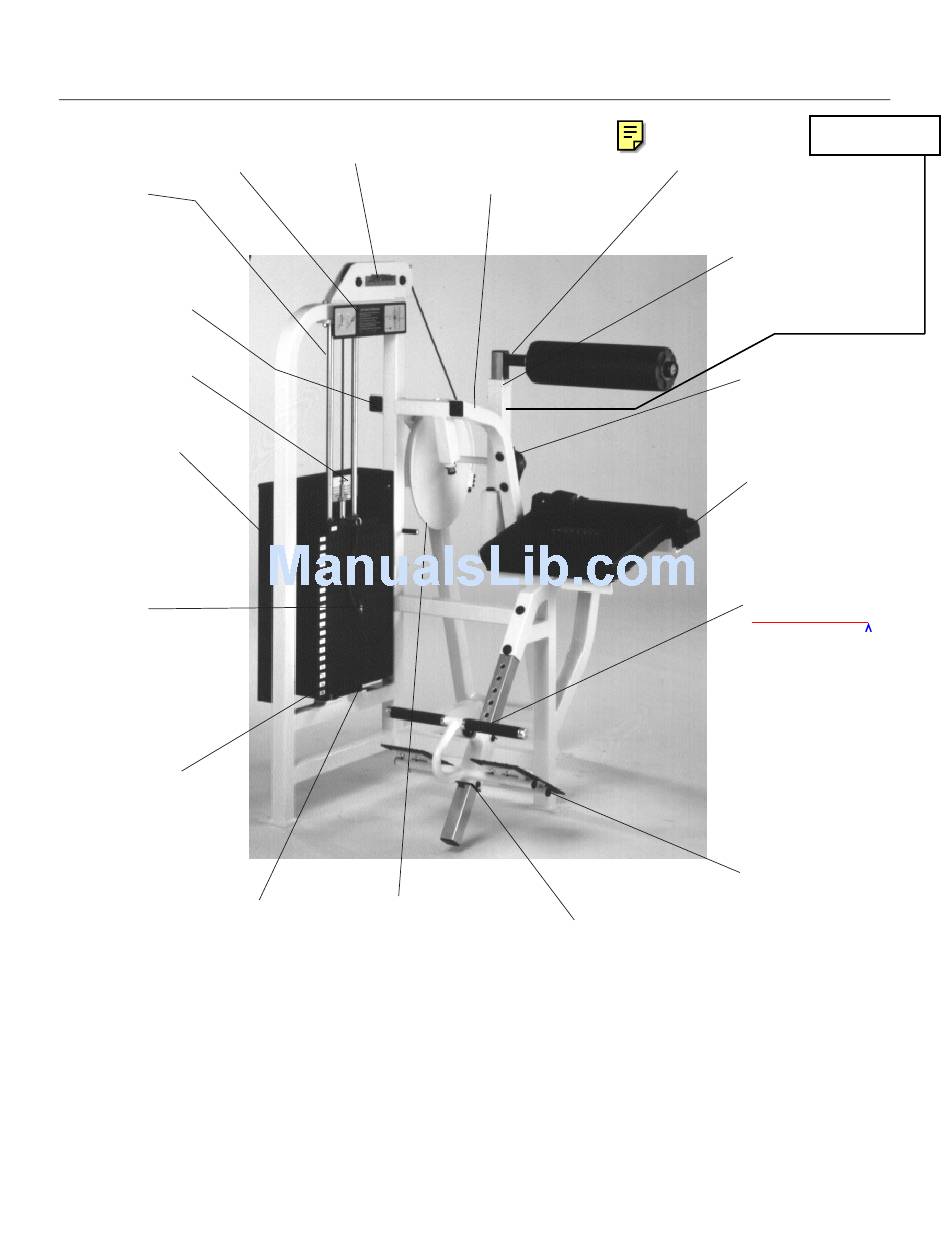

ST20/25 Low Back Extension

Placard
ST-PL000-0001
Guide Rods
0017-00009-0933
Note: Get length from
Customer
End Cap (2)
0017-00042-0959
Warning Label
M051-00335-A000
Weight Stack Shield
0K50-E0041-0000
Shield Service Kit
SK50-S0047-0000
Decal
M051-00270-A000
Selector Pin
SK50-S0151-0000
Weight Stickers
M051-00262-A000
(15-300 lbs)
M051-00265-A000
(7-140 KG)
Weight Donut (2)
0017-00042-993
Label (2)
Small Warning Label
0K50-01001-0000
(side not shown)
M051-00293-A000
Old Style Cam
ST20-S0007-0000
New Style Cam
ST20-S0008-00000
Housing
0K50-00324-0000
Spring
0017-00009-0995
Rubber Stop
0017-00103-0265
1
Redesigned Tibia
Adjustment Mech
S/N 070509 -Above
Plastic Guide
0017-00042-0998
T-Knob
AK50-S0005-0000
Internal Components:
Zinc Coated Angle Iron
0K50-P0494-0000
Plastic Angle
0K50-P0325-0000
Screw - 0017-00101-1396
Washer - 0017-00104-0347
Pillow Block(2)
0017-00006-0203
Red Rubber Cap
0017-00042-0951
Retractable Seat Belt
0017-00009-0981
Rubber Grip
0017-00042-0996
Grip Cap (2)
0K50-P0315-2000
Grip Ring (2)
0K50-P0316-2000
Set Screw
0017-00101-1406
Tube Cap(4)
0017-00042-0974
