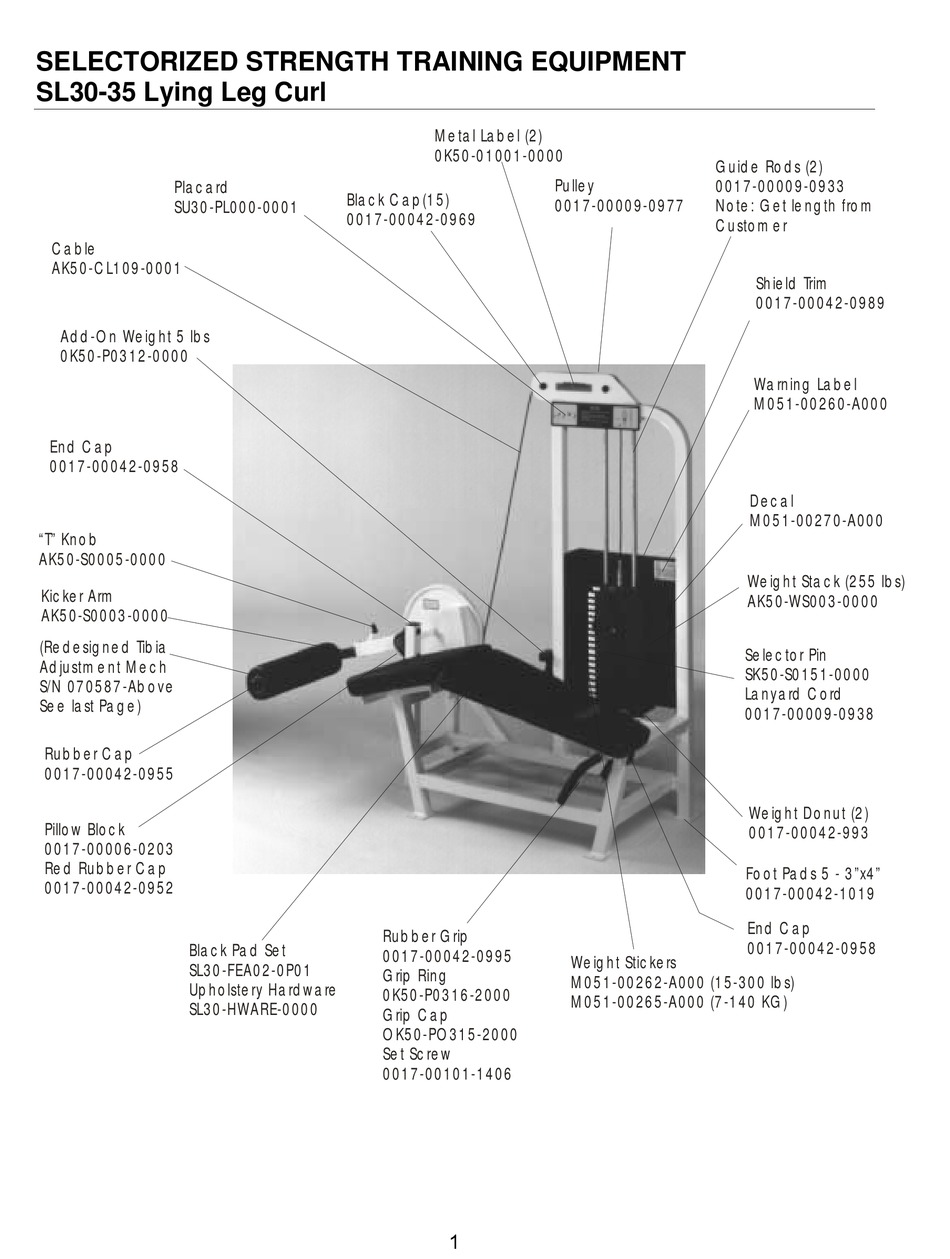

SELECTORIZED STRENGTH TRAINING EQUIPMENT
SL30-35 Lying Leg Curl
Placard
SU30-PL000-0001
Cable
Cable
AK50-CL109-0001
AK50-CL109-0001
Add-On Weights
Add-On Weight
5 lbs
5 lbs.
Add-On Weights 5 lbs.
0K50-P0312-0000
0K50-P0312-0000
0K50-P0312-0000
Receiver w/Cam
SL30-S0005-0000
Kicker
SK50-S0122-0000
End Cap
0017-00042-0958
"T" Knob
AK50-S0005-0000
Kicker Arm
AK50-S0003-0000
(Redesigned Tibia
Adjustment Mech
S/N 070587-Above
See last Page)
Rubber Cap
0017-00042-0955
Pillow Block
0017-00006-0203
Red Rubber Cap
0017-00042-0952
Black Pad Set
SL30-FEA02-0P01
Upholstery Hardware
SL30-HWARE-0000
Chest Pad
0K50-4S038-0000
Knee Pad
0K50-4S043-0000
Kicker Pad
0K50-4S008-0000
Wear Cover
0K50-4E005-0000S
Metal Label (2)
0K50-01001-0000
Black Cap(15)
0017-00042-0969
Rubber Grip
0017-00042-0995
Grip Ring
0K50-P0316-2000
Grip Cap
OK50-PO315-2000
Set Screw
0017-00101-1406
1
Guide Rods (2)
Pulley
0017-00009-0933
0017-00009-0977
Note: Get length from
Customer
Weight Stickers
M051-00262-A000 (15-300 lbs)
M051-00265-A000 (7-140 KG)
Shield Trim
0017-00042-0989
Warning Label
M051-00260-A000
Decal
M051-00270-A000
Weight Stack (255 lbs)
AK50-WS003-0000
Selector Pin
SK50-S0151-0000
Lanyard Cord
0017-00009-0938
Weight Donut (2)
0017-00042-993
Foot Pads 5 - 3"x4"
0017-00042-1019
End Cap
0017-00042-0958
rev. 06/15/05
Advertisement
Related Manuals for Life Fitness SL30-35
Summary of Contents for Life Fitness SL30-35
- Page 1 SELECTORIZED STRENGTH TRAINING EQUIPMENT SL30-35 Lying Leg Curl Placard SU30-PL000-0001 Cable Cable AK50-CL109-0001 AK50-CL109-0001 Add-On Weights Add-On Weight 5 lbs 5 lbs. Add-On Weights 5 lbs. 0K50-P0312-0000 0K50-P0312-0000 0K50-P0312-0000 Receiver w/Cam SL30-S0005-0000 Kicker SK50-S0122-0000 End Cap 0017-00042-0958 “T” Knob AK50-S0005-0000...
- Page 2 SL35: STRENGTH 9000 SERIES TRAINING EQUIPMENT Range Limiter Polished Hub SL25-S0006-0000 SL35-S0005-0000 S 45 AK50-S0012-0000 ST25-S0006-0000 Pull Pin Kit SK50-S0008-0000 Shaft Collar (2) 0017-00009-0942 3-1/4” Bolt 0017-00101-1425 Washer 0017-00101-0313 Cap Washer 0017-00104-0368 3/8” Nut 0017-00103-0229 Star Washer 0017-00009-0937 Back Cap 0017-00042-0949 Pillow Block 0017-00006-0203...
- Page 3 SELECTORIZED STRENGTH TRAINING EQUIPMENT SL30 Tibia Adjustment Mechanism - S/N 070587-Above Kicker Link 0K50-P0553-0000 Rivets-2 0017-00072-0136 Bumper 0017-00042-1032 3/4” Bushing-2 0017-00009-0929 3/4” Retainer Clips-6 0017-00100-0192 Black Cap 0017-00009-1091 Swivel Pad Mount AK50-S0031-0000 Spring 0017-00009-0994 7/16”Retaining Clips-6 0017-00100-0191 3/4“ Grooved Pins-2 0K50-P0544-0000 Tulip Handle 0017-00009-1077...
